Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fog lamp assembly from the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the fasteners to secure the front fog lamp assembly to the front fascia.

    Tighten

    Tighten the fog lamp fasteners to 2 N.m (18 lb in).

  3. Connect the electrical connector (1) to the fog lamp assembly.

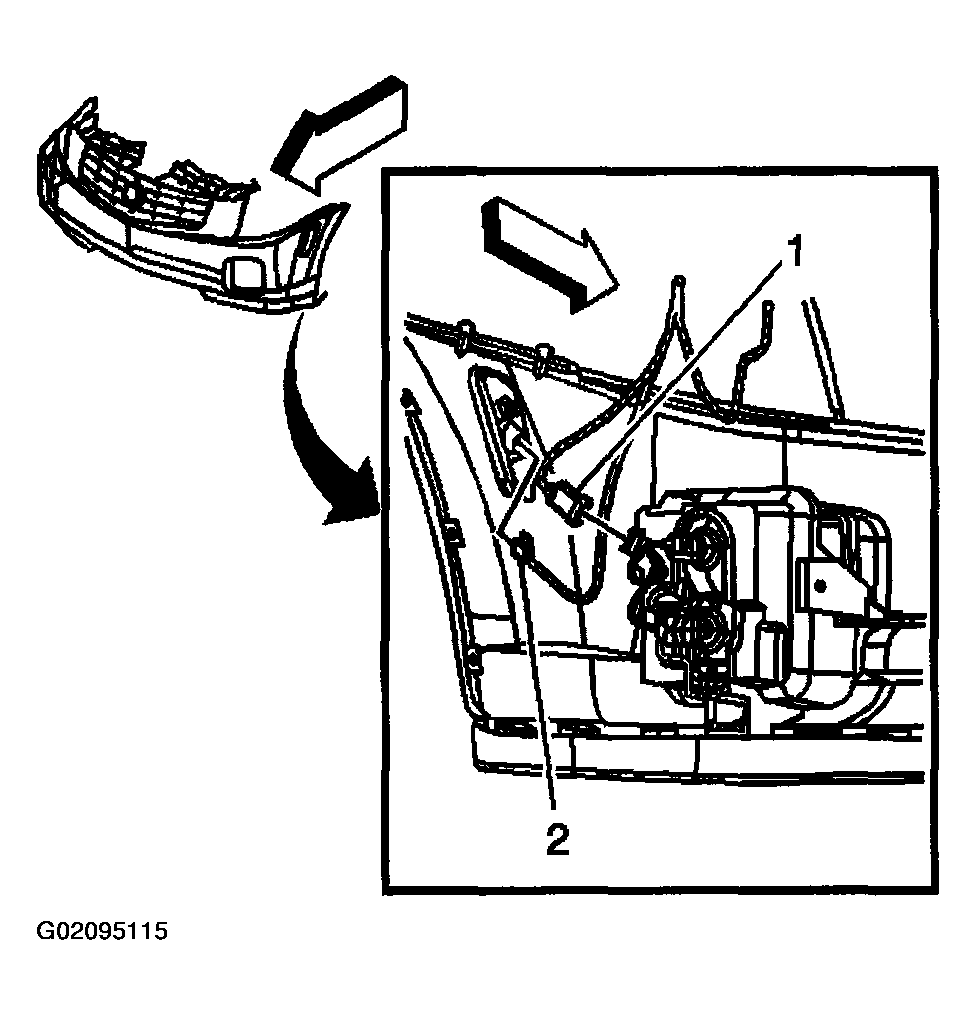

    Fig 1: Connecting Front Fog Lamp Electrical Connector
    G02095115Courtesy of GENERAL MOTORS CORP.
  4. Install the front air deflector. Refer to BUMPER SYSTEM in Body Front End.
