Disassembly Procedure

  1. Inspect the hydraulic pump (1) for leaks.

    Important:  Do not attempt to disassemble the hydraulic pump (1).

  2. If pump (1) needs replacement, remove the reservoir assembly. Refer to POWER STEERING RESERVOIR REPLACEMENT - OFF VEHICLE  .

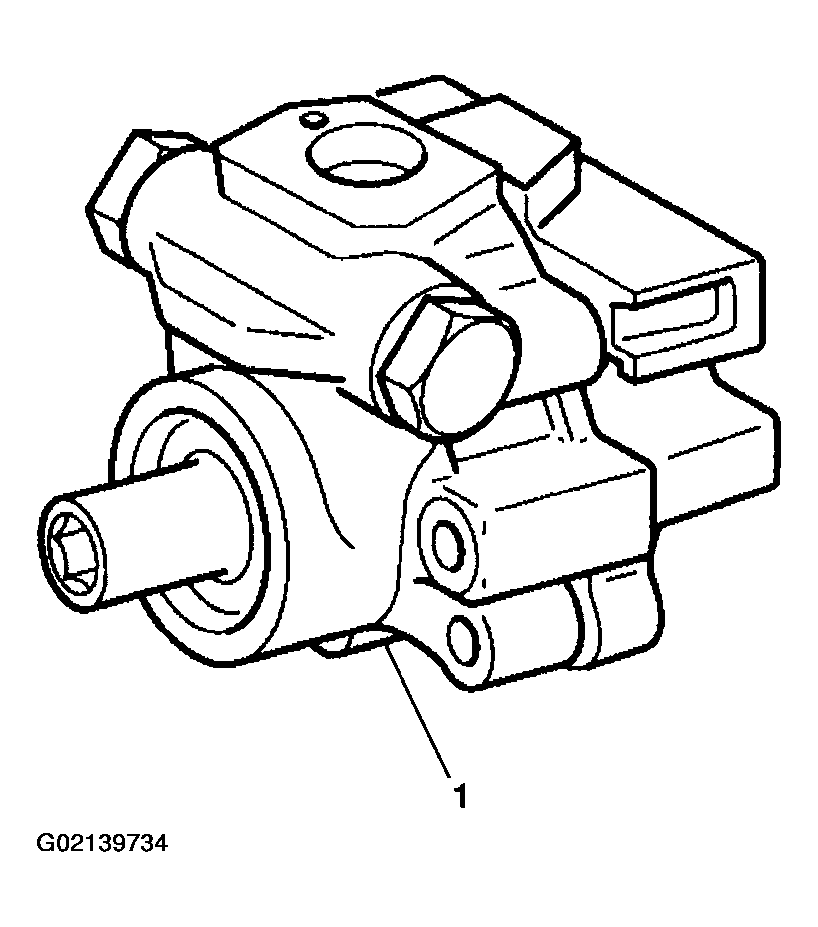

    Fig 1: Checking Hydraulic Pump
    G02139734Courtesy of GENERAL MOTORS CORP.
