Assembly Procedure

  1. After replacing the damaged pump assembly (1) with the new pump assembly (1), assemble the pump reservoir.
  2. Refer to POWER STEERING RESERVOIR REPLACEMENT - OFF VEHICLE  .

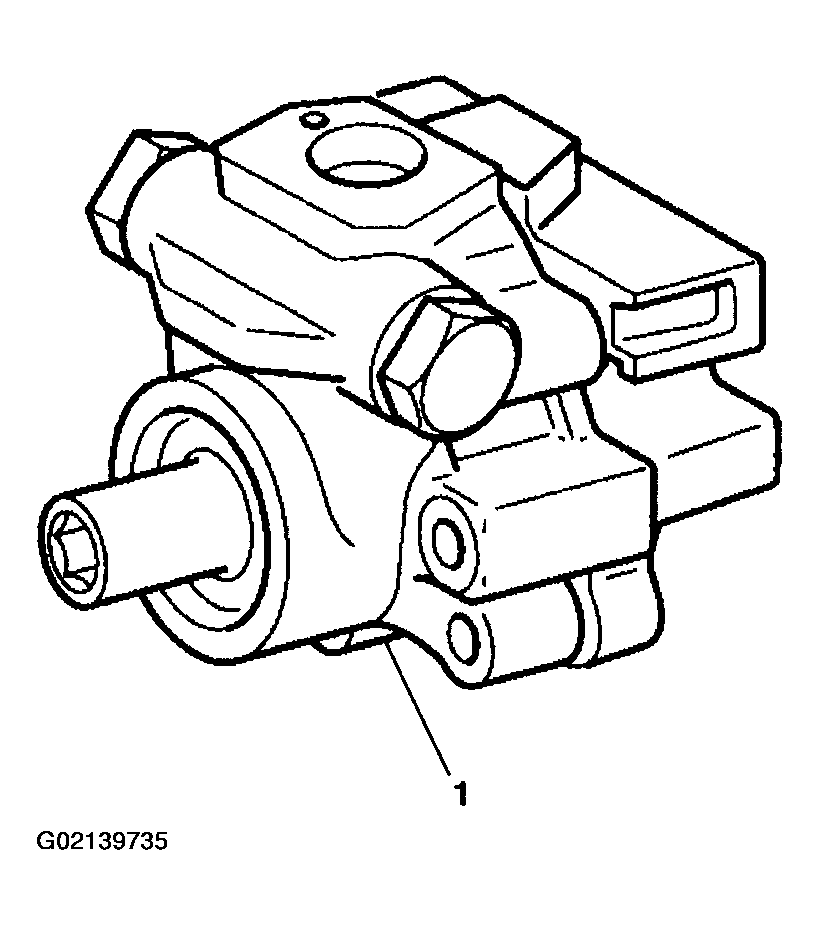

    Fig 1: Assembling Pump Assembly With Pump Reservoir
    G02139735Courtesy of GENERAL MOTORS CORP.
