Power Steering Gear Disassembled View (Magnasteer)

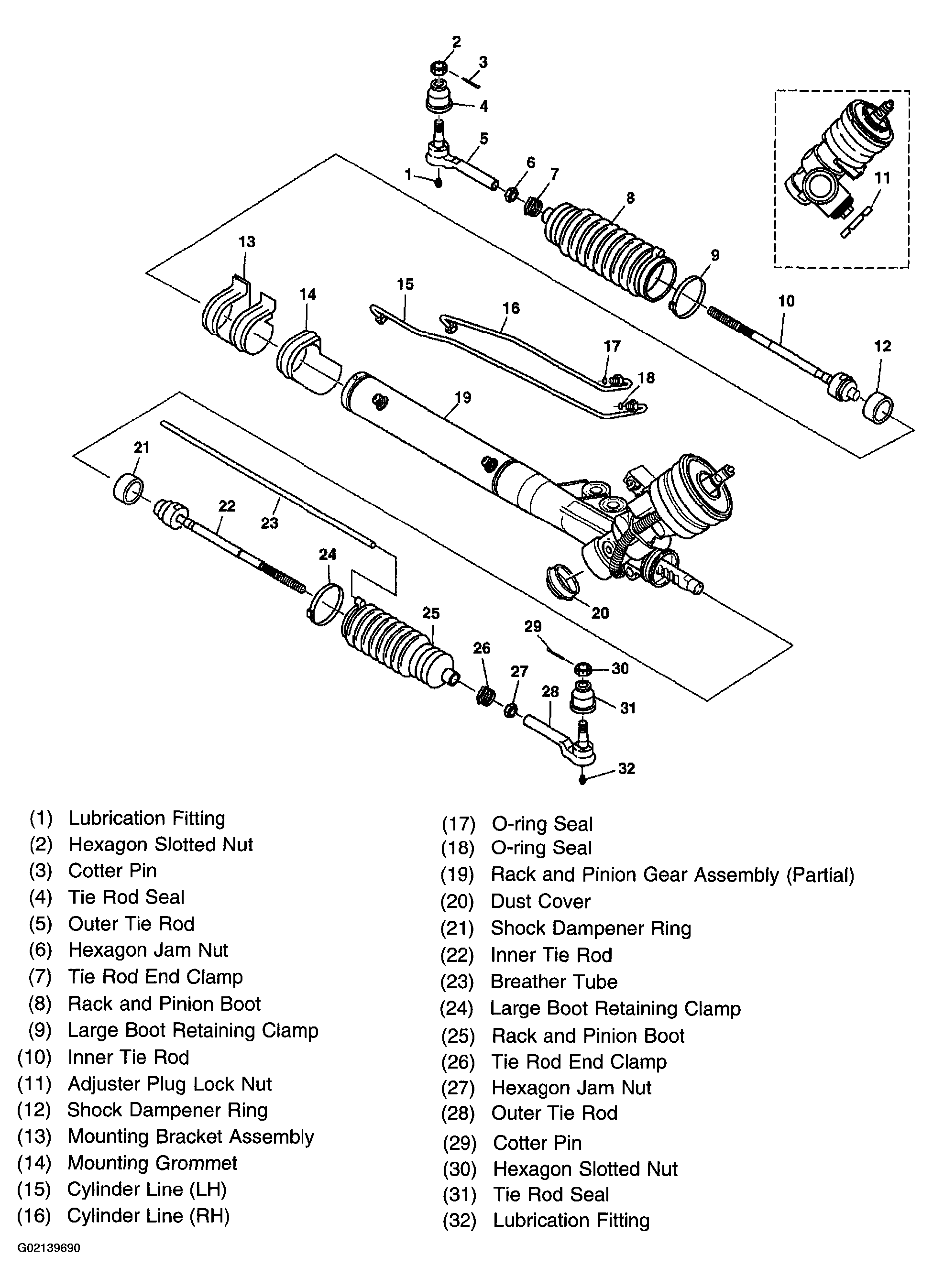

Fig 1: Exploded View Of Magnasteer Power Steering Gear

G02139690

Courtesy of GENERAL MOTORS CORP.
