Scan Tool Data List

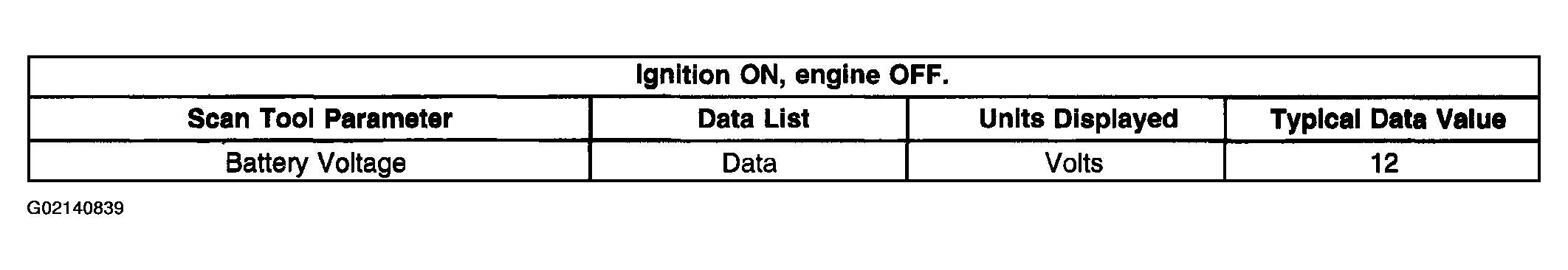

Fig 1: Dash Integration Module (DIM) Scan Tool Data List Chart
G02140839Courtesy of GENERAL MOTORS CORP.

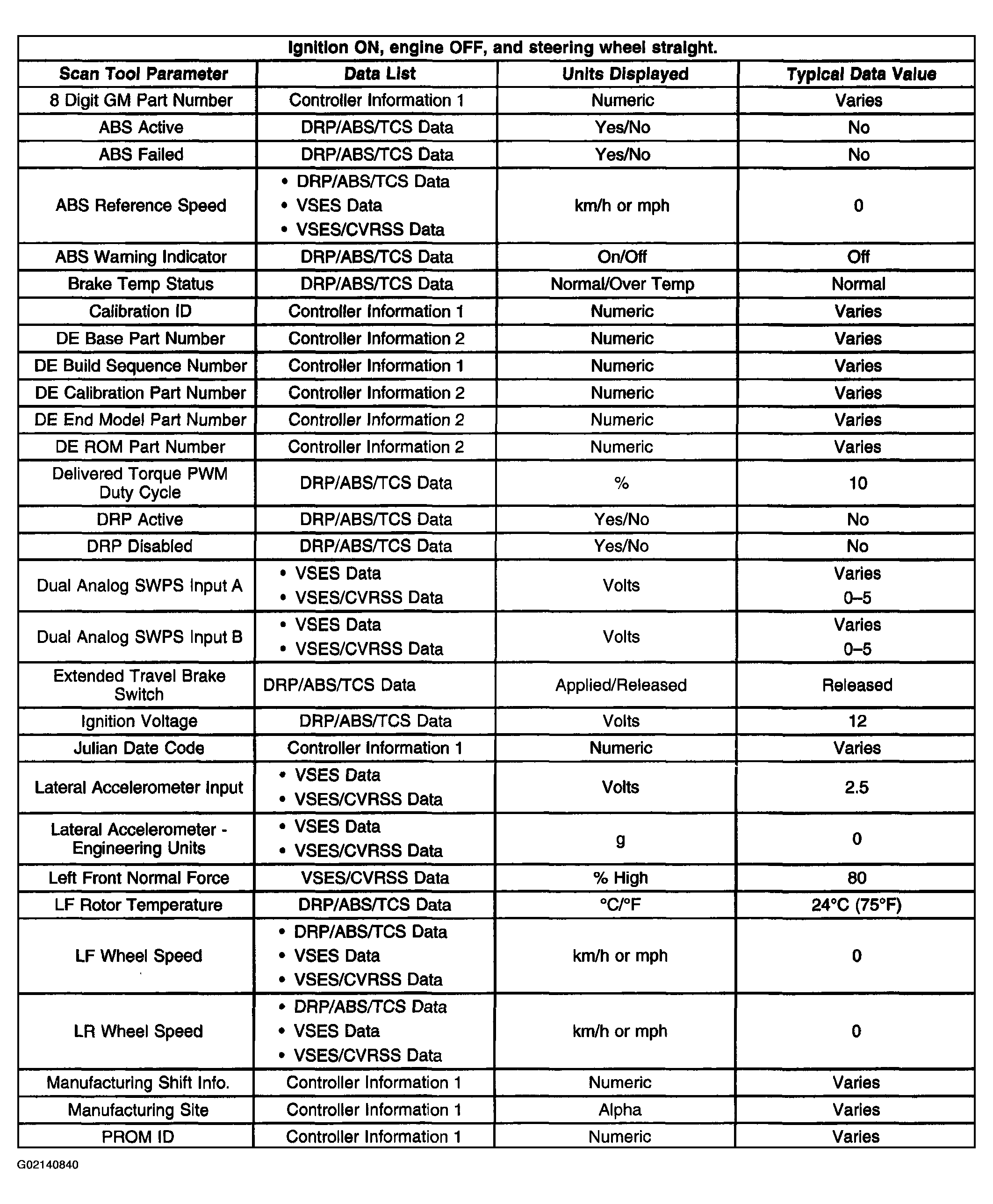

Fig 2: Electronic Brake Control Module (EBCM) Scan Tool Data List Chart (1 Of 2)
G02140840Courtesy of GENERAL MOTORS CORP.

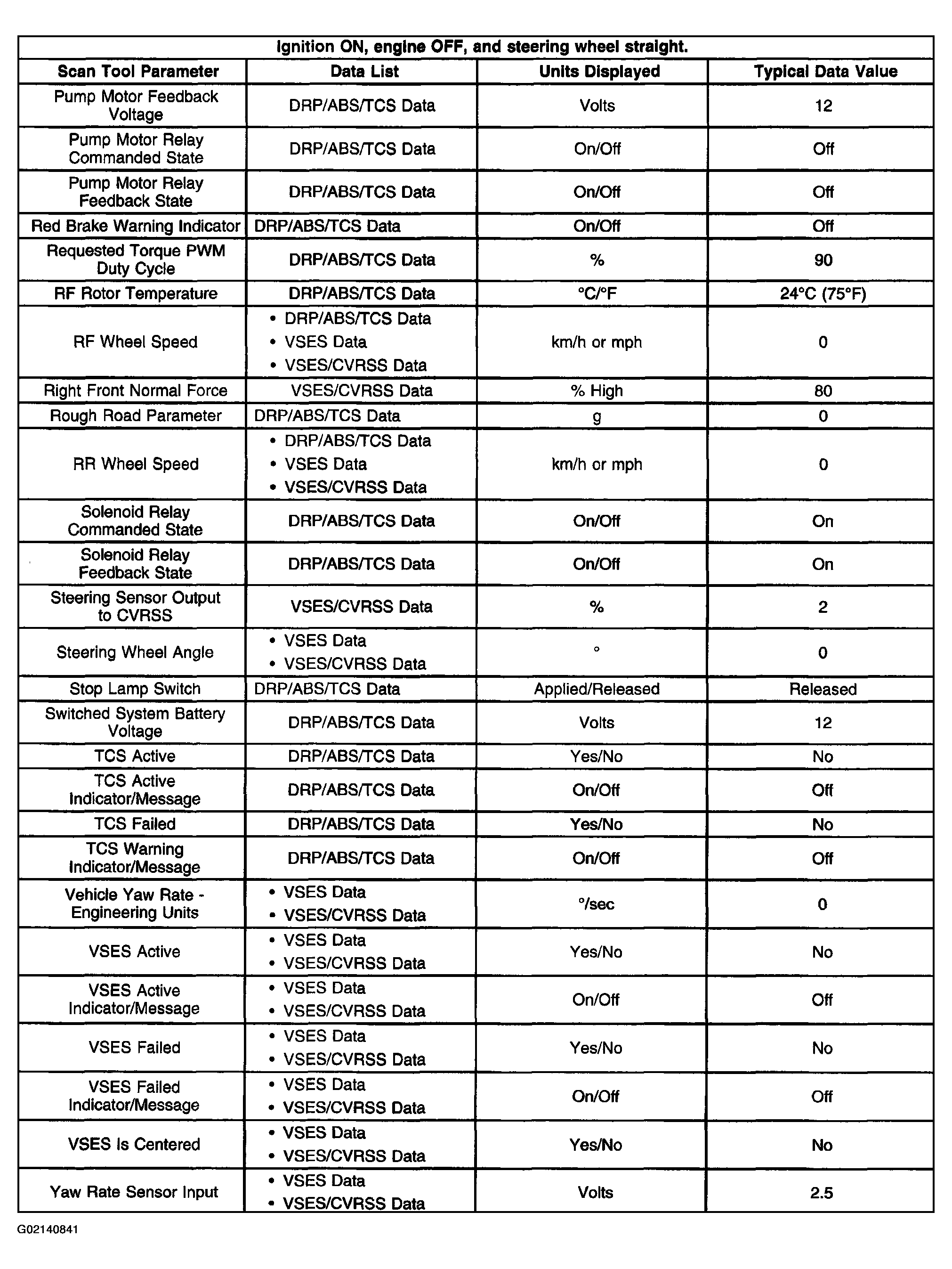

Fig 3: Electronic Brake Control Module (EBCM) Scan Tool Data List Chart (2 Of 2)
G02140841Courtesy of GENERAL MOTORS CORP.

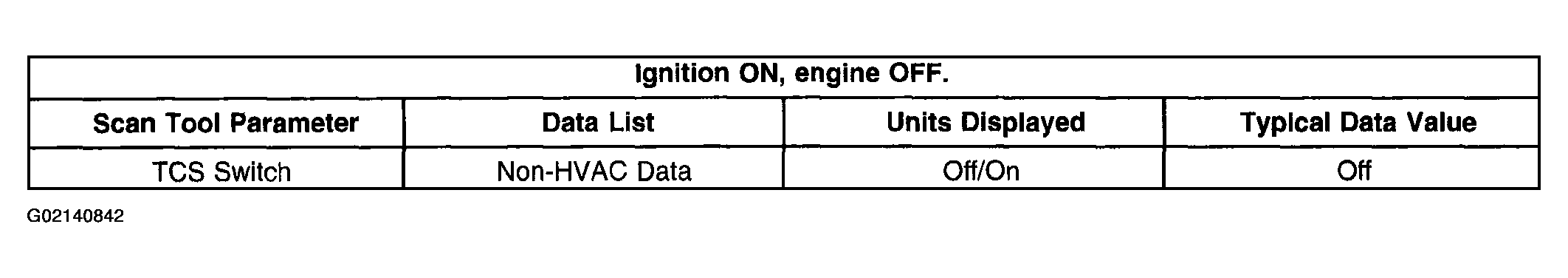

Fig 4: HVAC Control Module (Instrument Panel Module) Scan Tool Data List Chart
G02140842Courtesy of GENERAL MOTORS CORP.

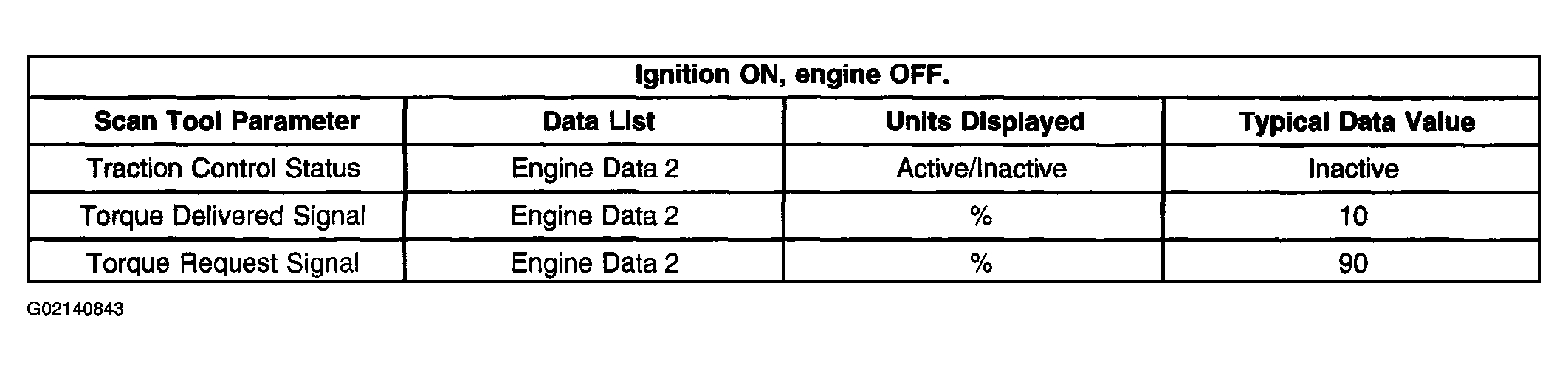

Fig 5: Powertrain Control Module (PCM) Scan Tool Data List Chart
G02140843Courtesy of GENERAL MOTORS CORP.
