Removal Procedure

CAUTION: Refer to SIR CAUTION in Cautions and Notices.
  1. Remove the front seat. Refer to SEAT REPLACEMENT - BUCKET  .
  2. Disconnect the electrical connector from the sensor (2).
  3. Rotate the sensor counterclockwise and remove it (1).

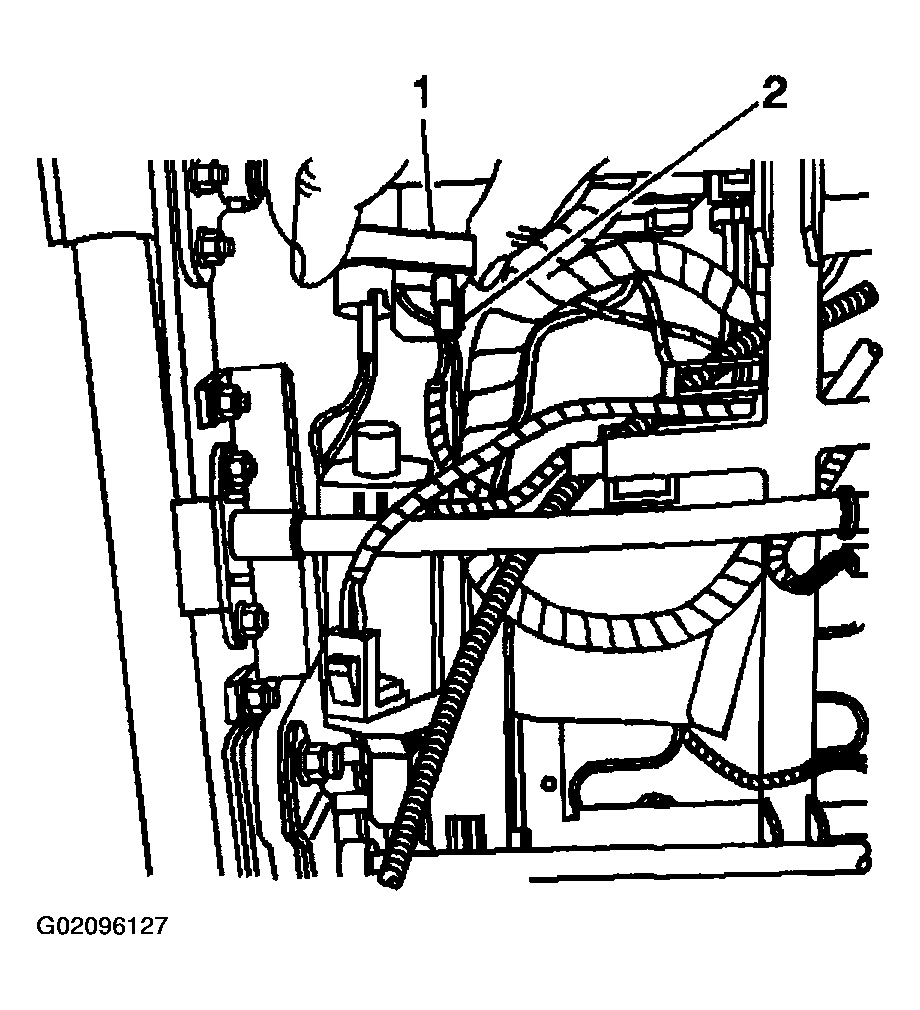

    Fig 1: Disconnecting Electrical Connector From Sensor
    G02096127Courtesy of GENERAL MOTORS CORP.
