Instrument Panel Cluster (IPC) Connector End View

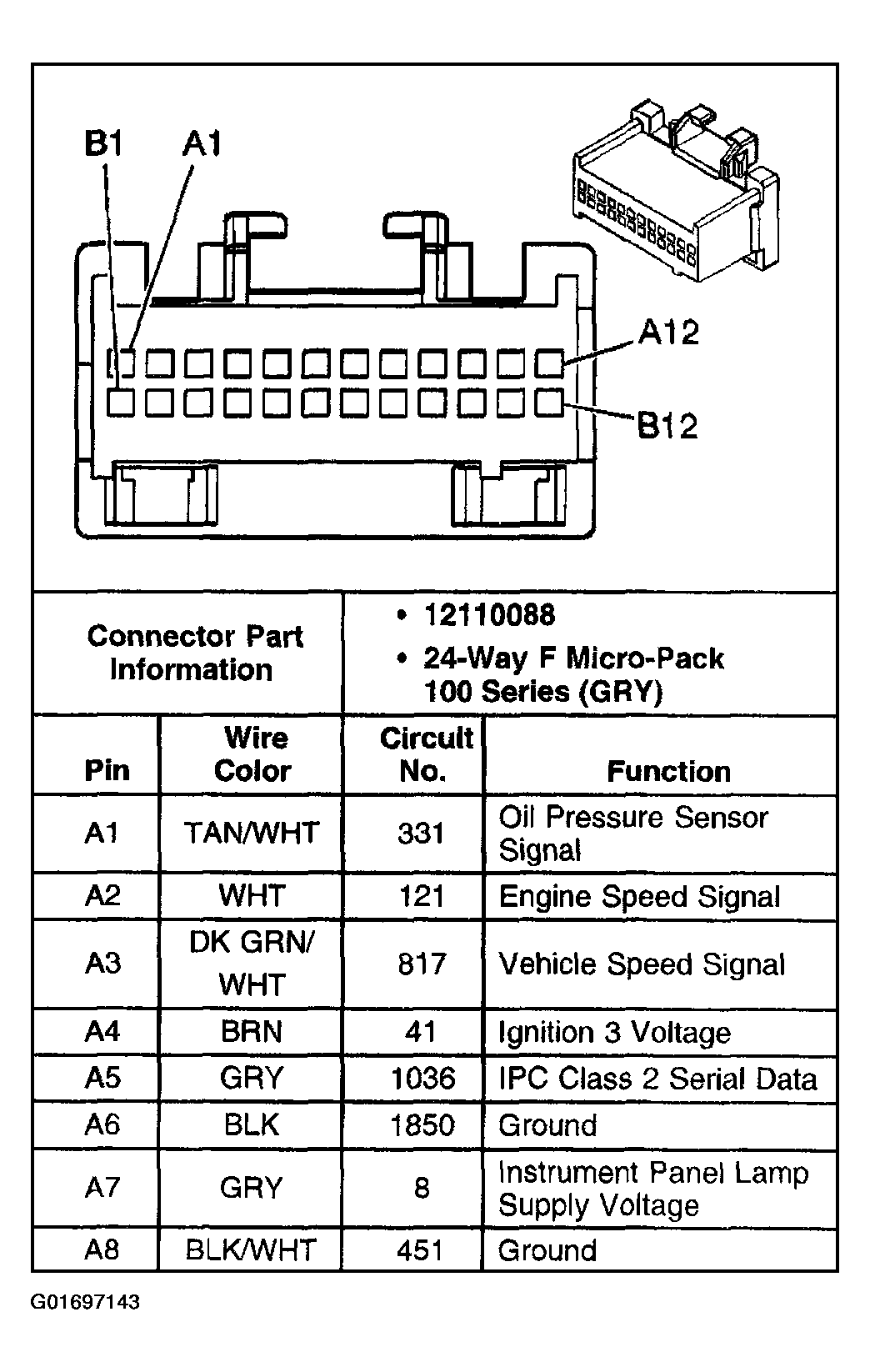

Fig 1: Instrument Panel Cluster (IPC) Connector End View

G01697143

Courtesy of GENERAL MOTORS CORP.
