Removal Procedure

  1. Remove the drive belt. Refer to SPECIFICATIONS & DRIVE BELT ROUTING
  2. Install a drain pan under the vehicle.
  3. Remove the power steering cooler hose from the power steering pump.

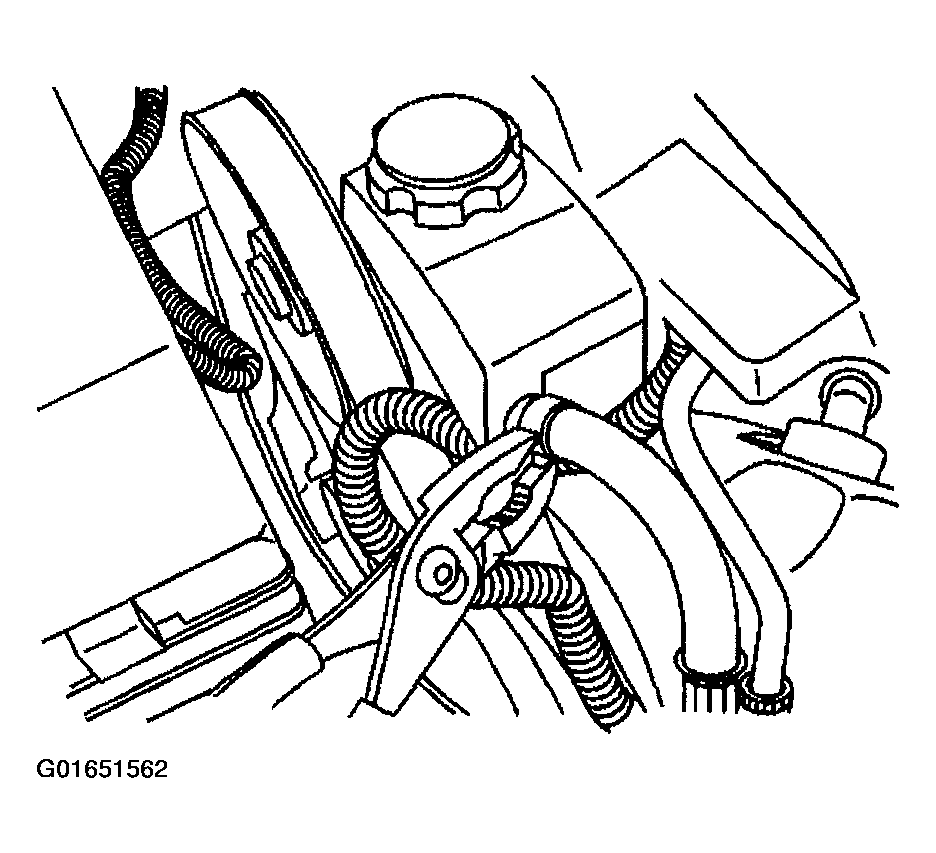

    Fig 1: Removing Power Steering Cooler Hose
    G01651562Courtesy of GENERAL MOTORS CORP.
  4. Remove the power steering pressure hose from the power steering pump.

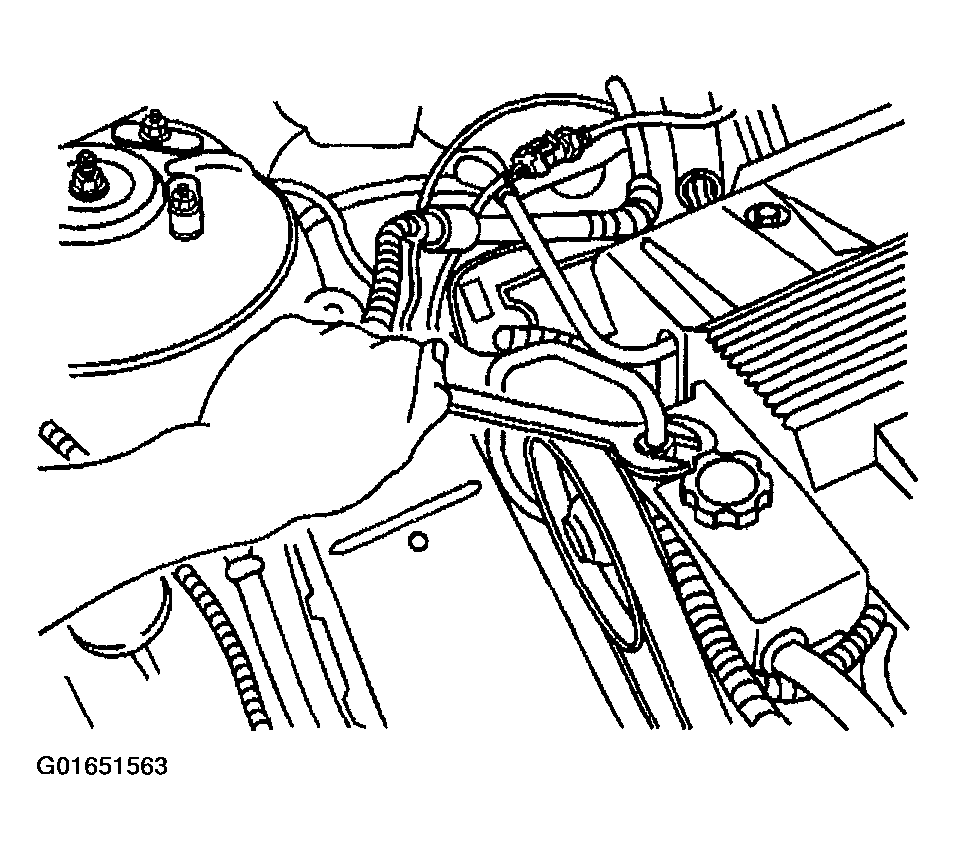

    Fig 2: Removing Power Steering Pressure Hose
    G01651563Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering pump mounting bolt.
  6. Remove the power steering pump.

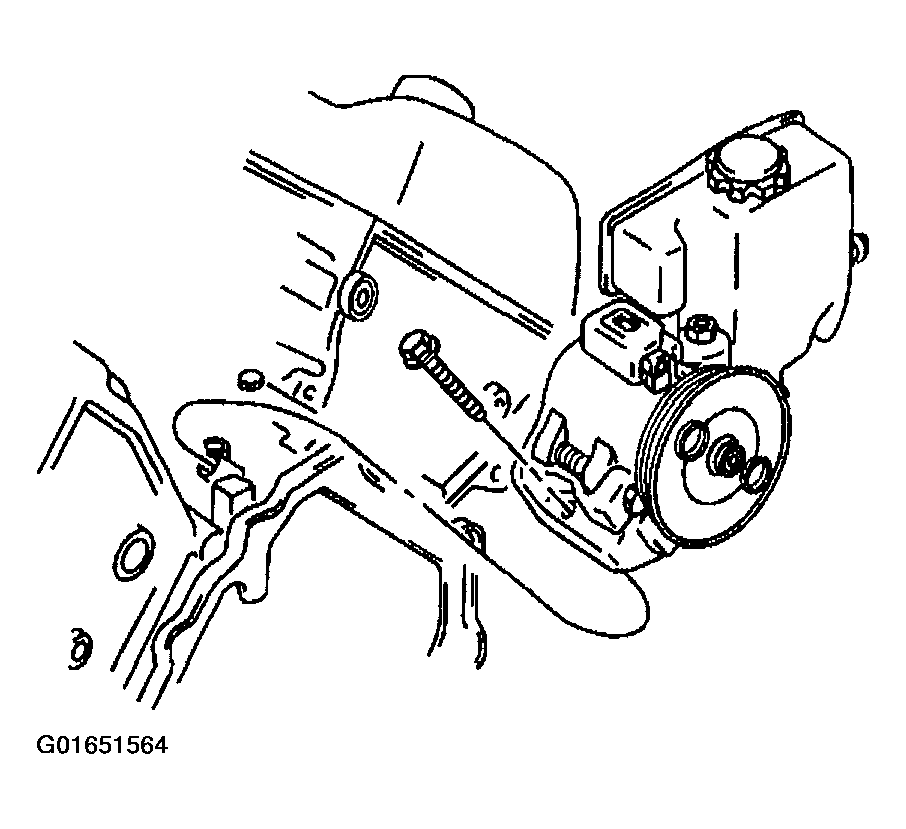

    Fig 3: Removing Power Steering Pump & Mounting Bolt
    G01651564Courtesy of GENERAL MOTORS CORP.
  7. Remove the power steering pulley (3) from the power steering pump.
  8. Remove the power steering pump and reservoir (2) from the power steering pump bracket (1).
  9. Remove the retaining clips that attach the reservoir (2) to the pump.

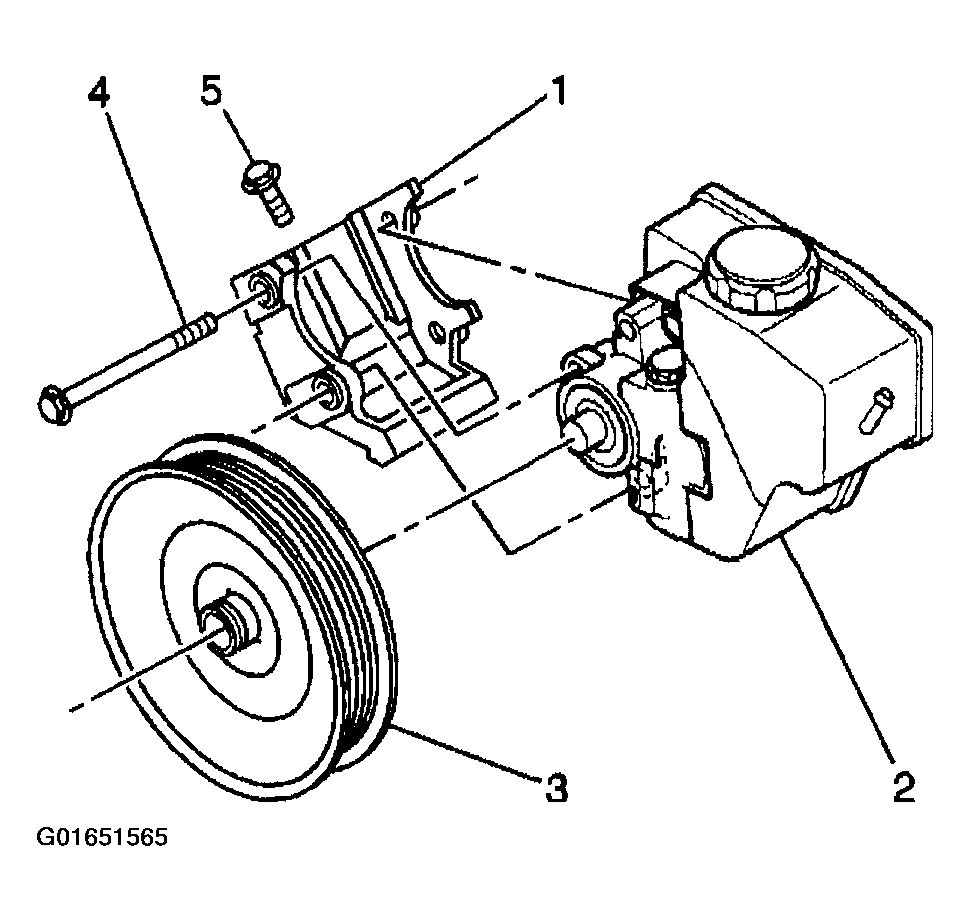

    Fig 4: Identifying Power Steering Pump Components
    G01651565Courtesy of GENERAL MOTORS CORP.
