Scan Tool Output Controls

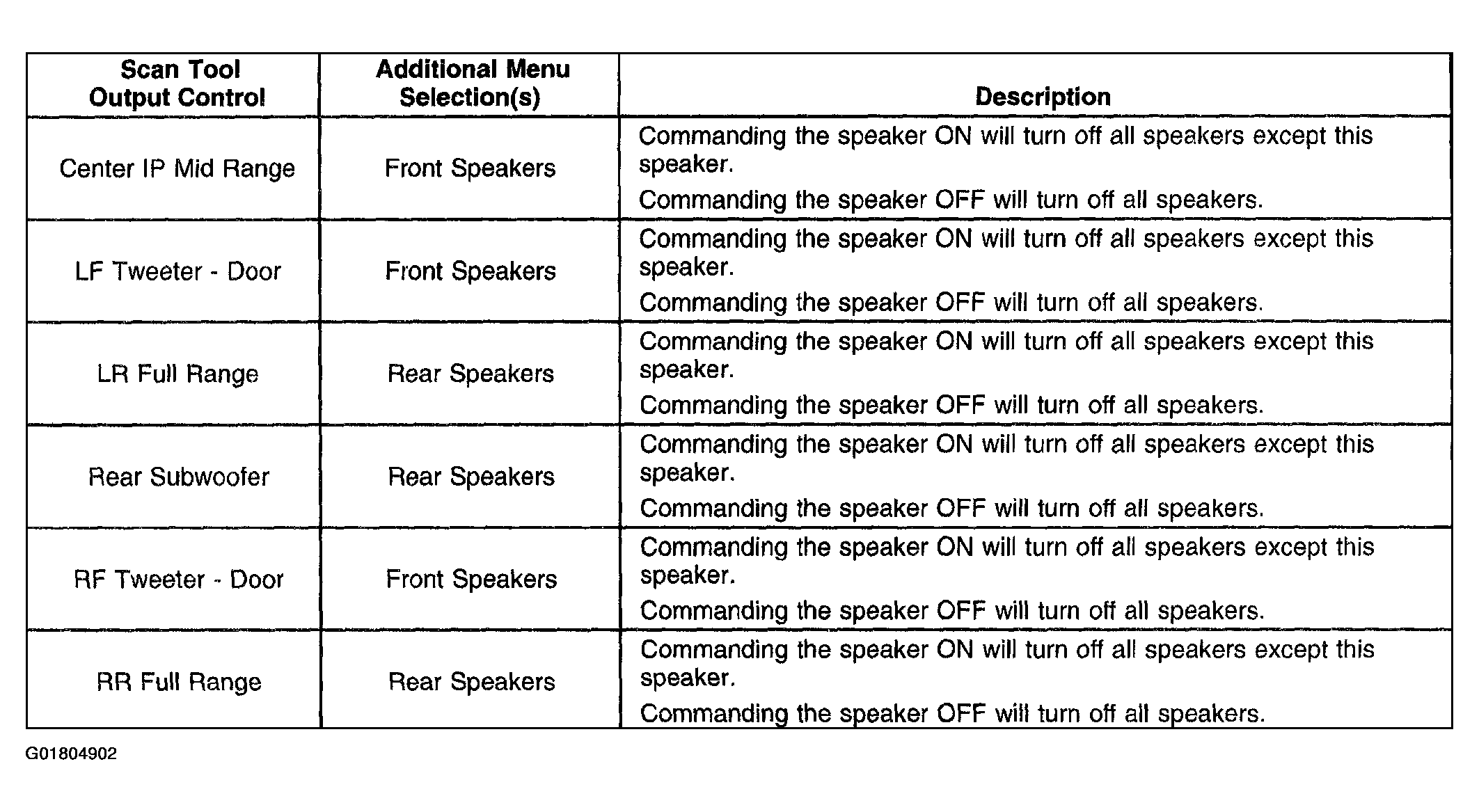

Fig 1: Bose Amplifier Scan Tool Output Control
Courtesy of GENERAL MOTORS CORP.

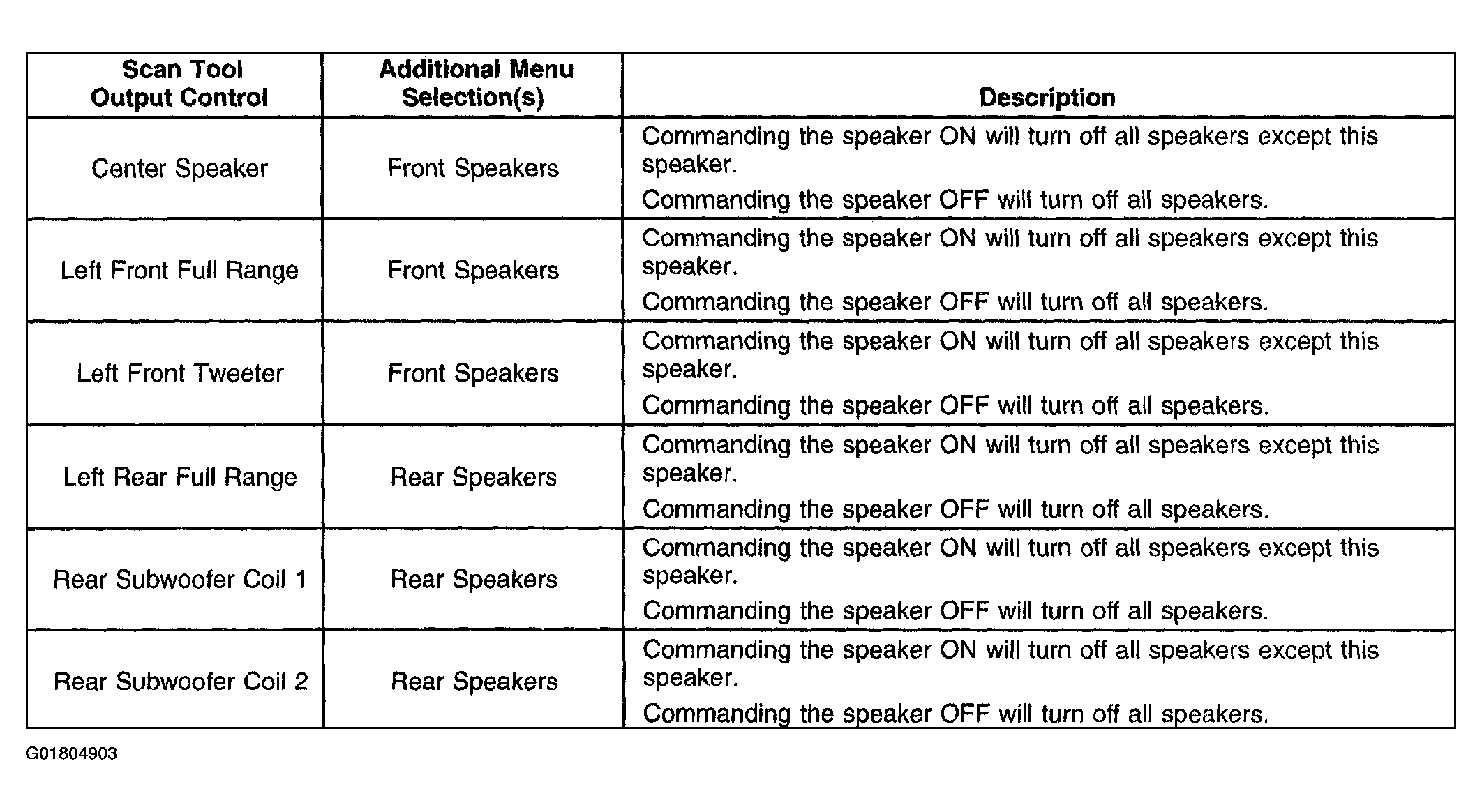

Fig 2: Delco Amplifier Scan Tool Output Control (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

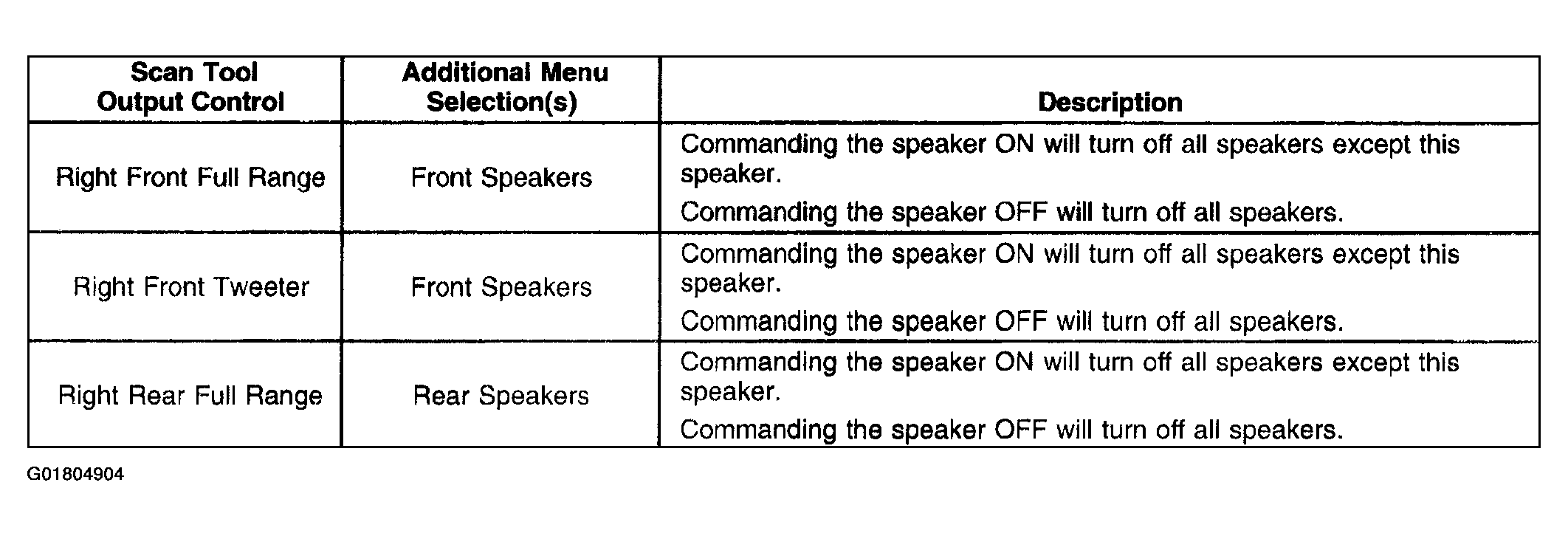

Fig 3: Delco Amplifier Scan Tool Output Control (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

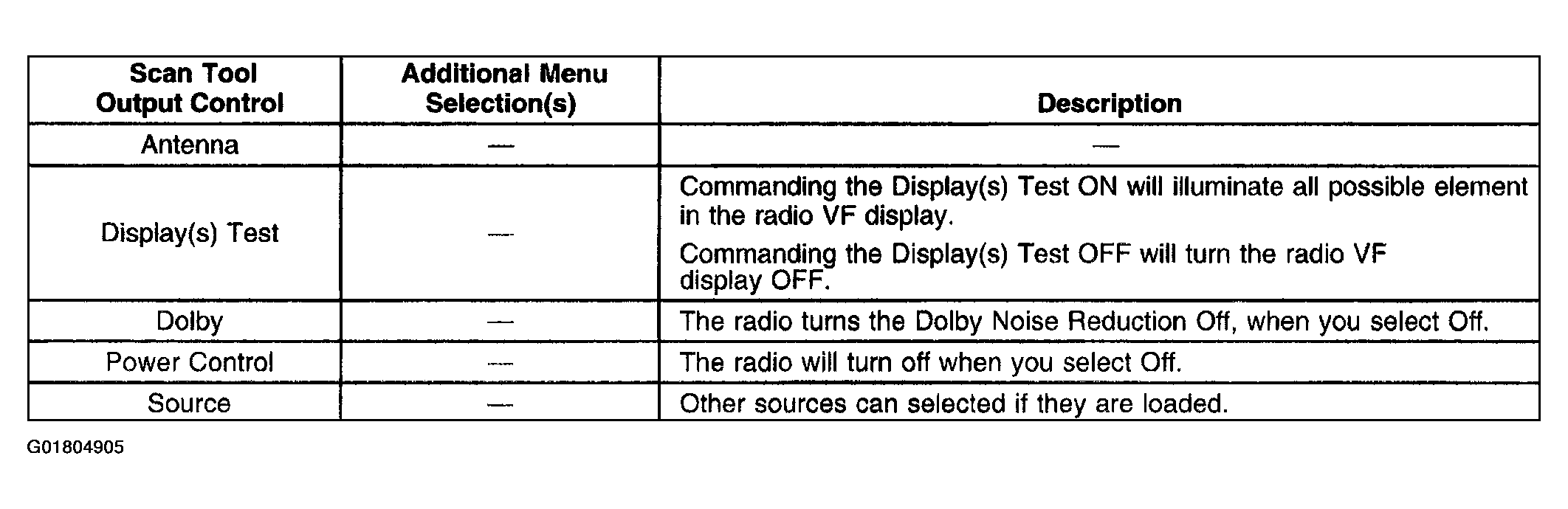

Fig 4: Radio Scan Tool Output Control
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
