Section 631 (Entertainment System)
>>
Component Locator
>>
Entertainment Connector End Views
Entertainment Connector End Views
WARNING:
This page is about a different car, the 2002 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

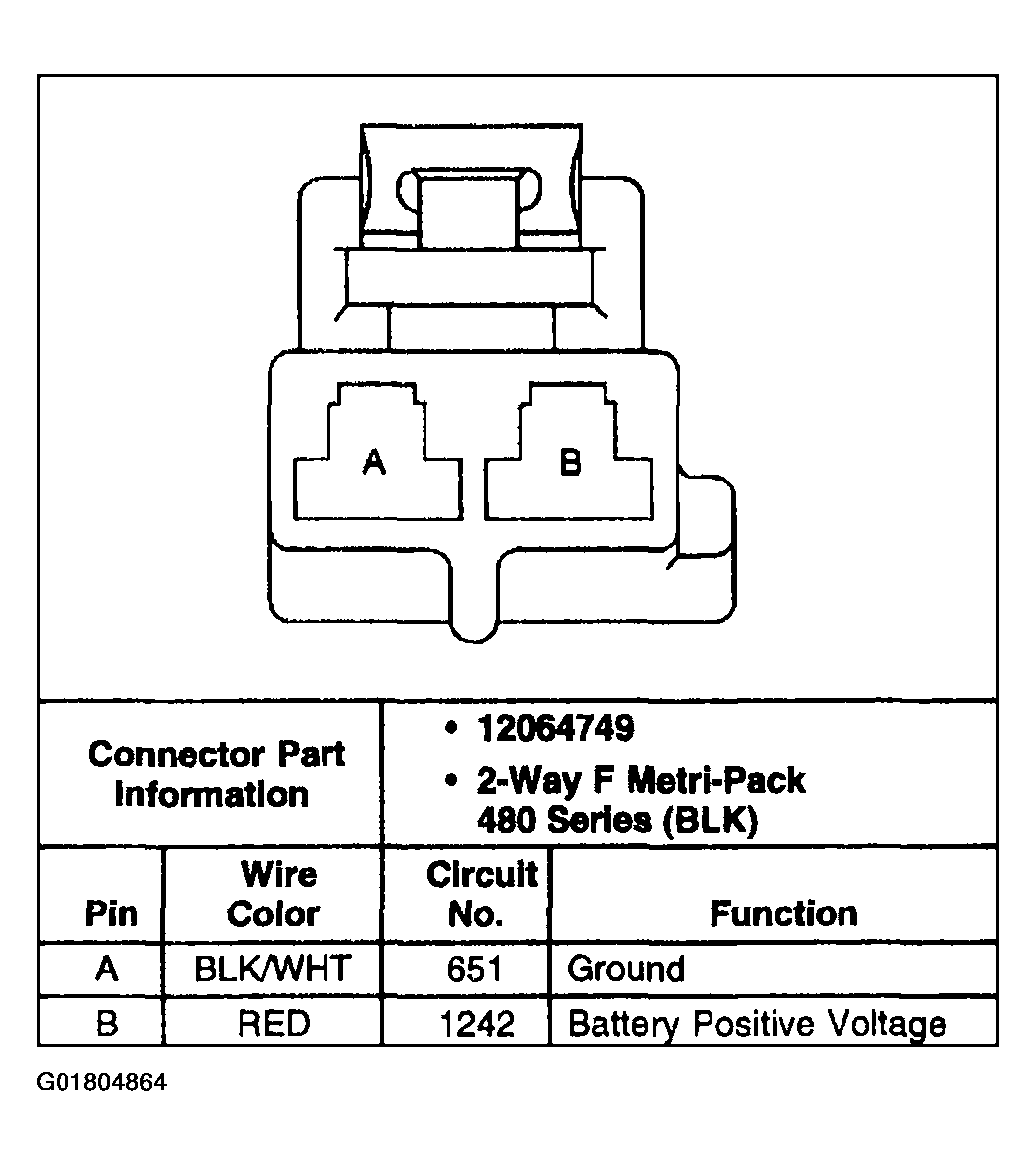

Fig 1: Audio Amplifier (w/UX8) C1
Courtesy of GENERAL MOTORS CORP.

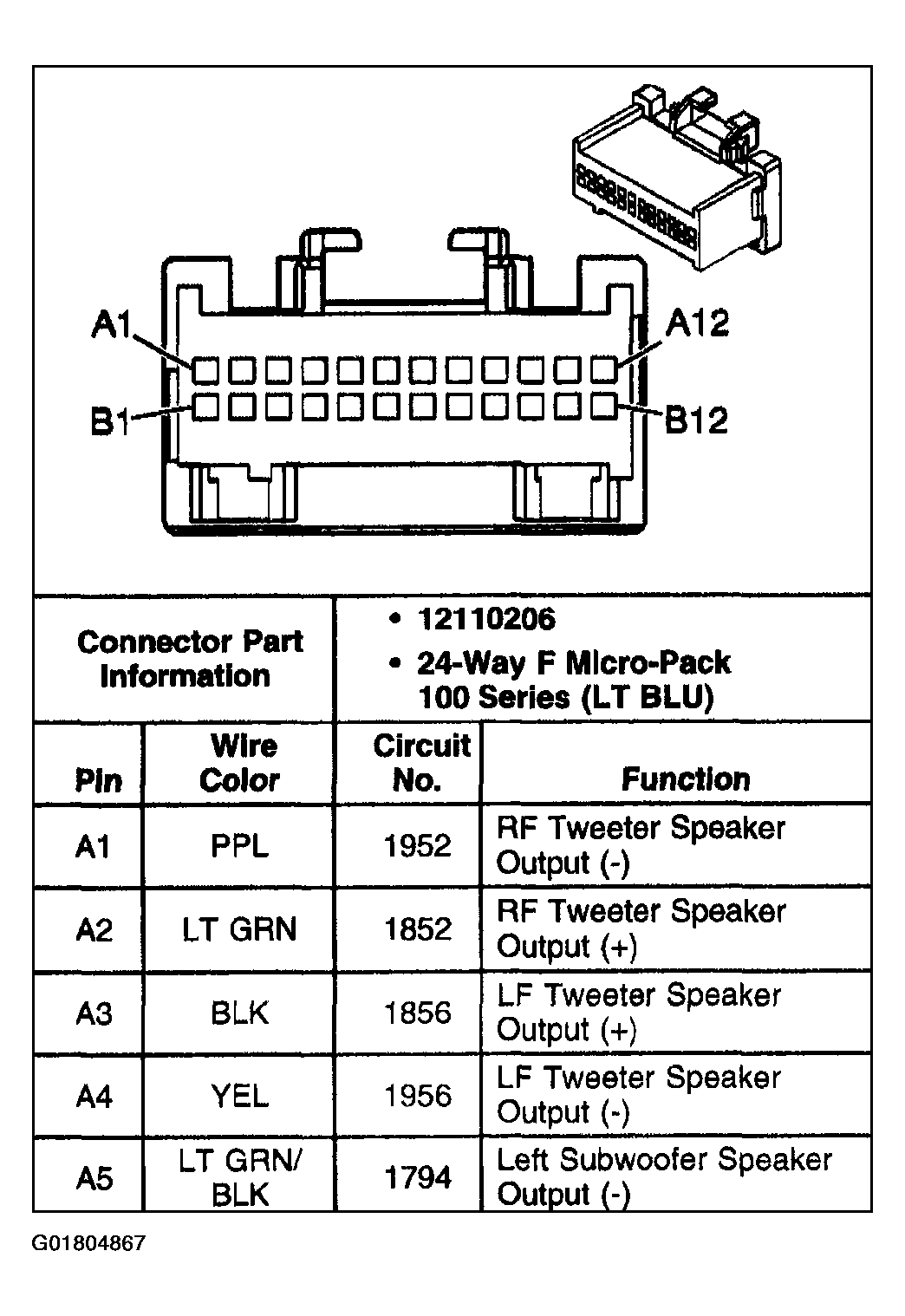

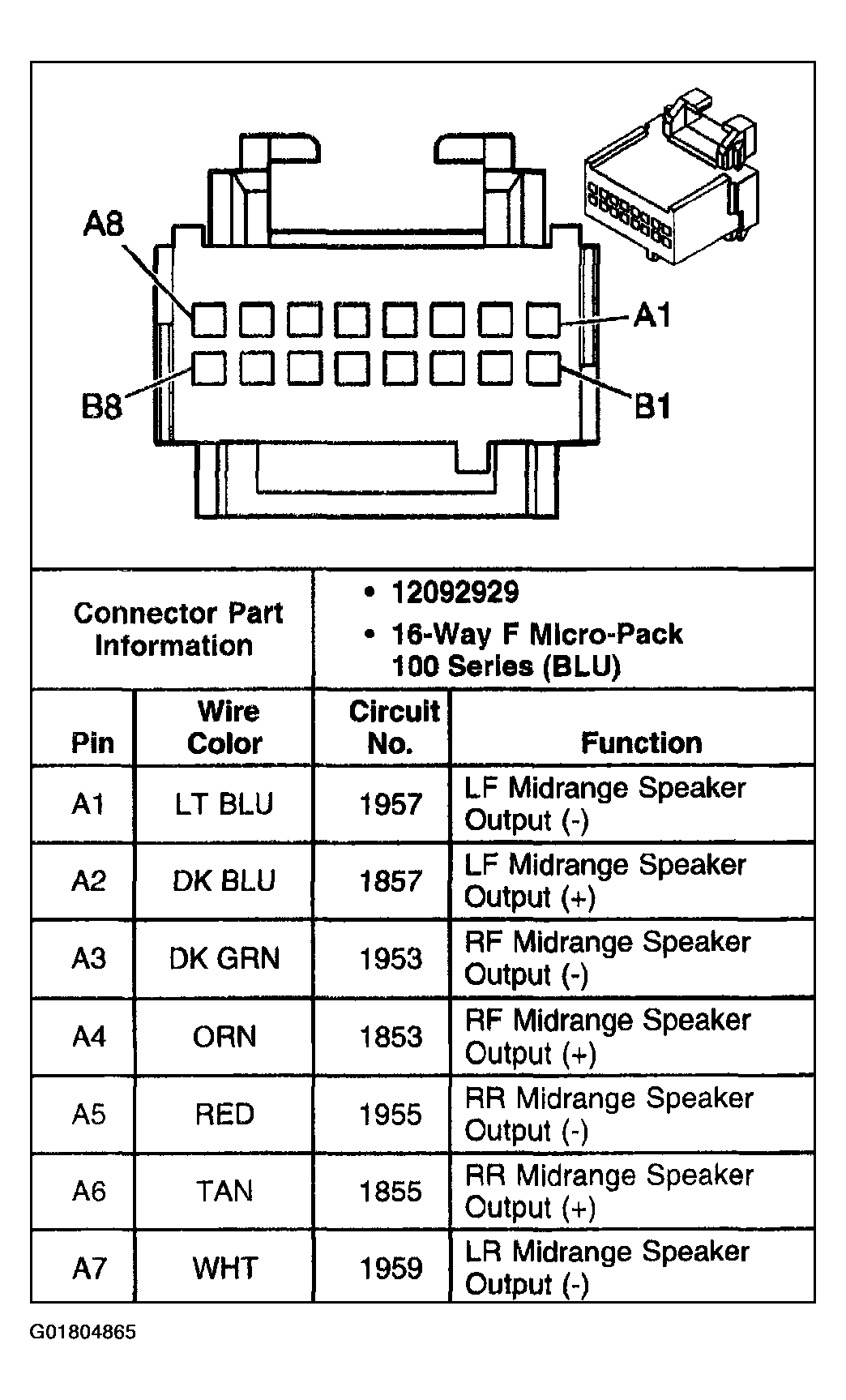

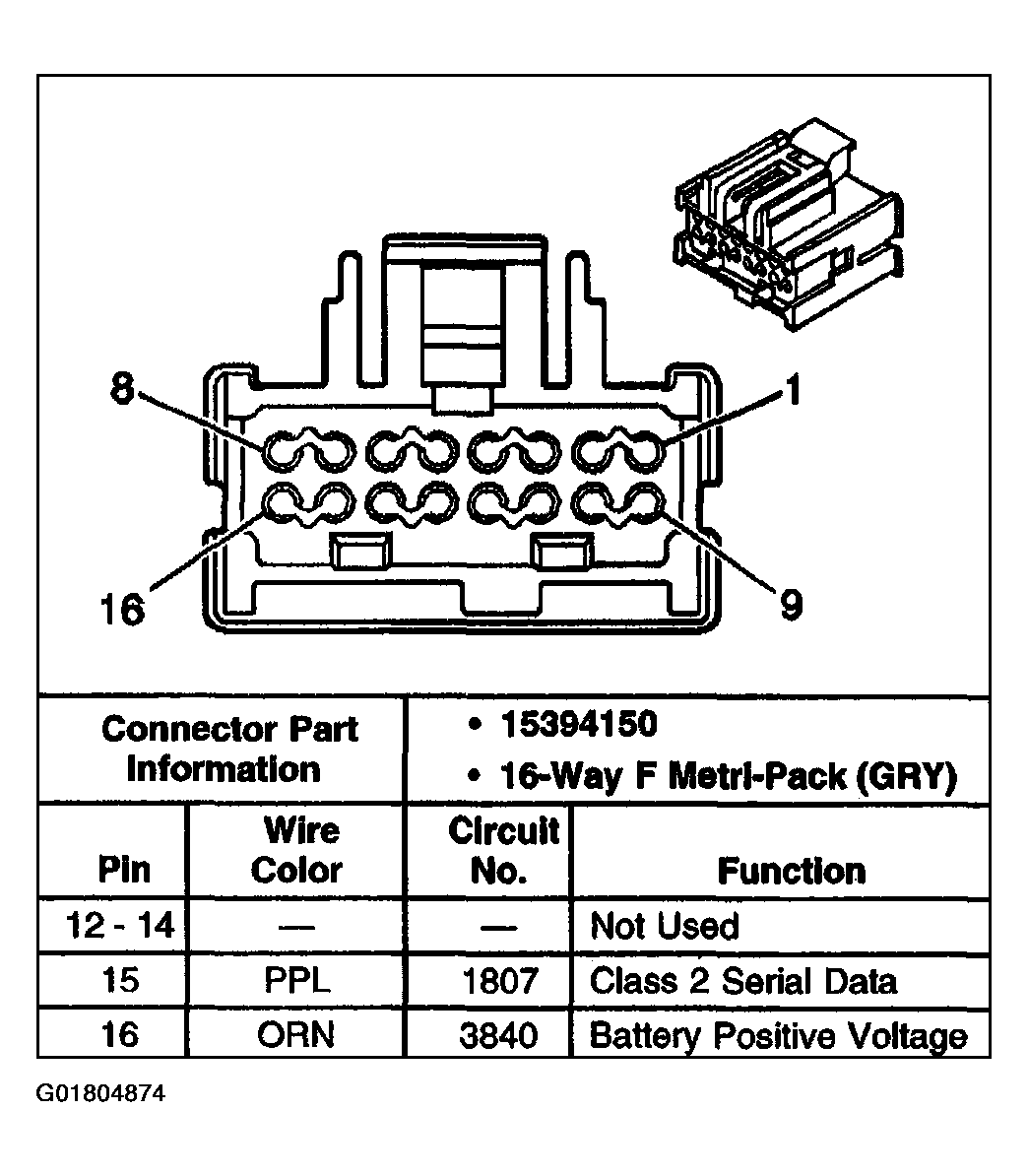

Fig 2: Audio Amplifier (w/UX8) C2 (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Audio Amplifier (w/UX8) C2 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

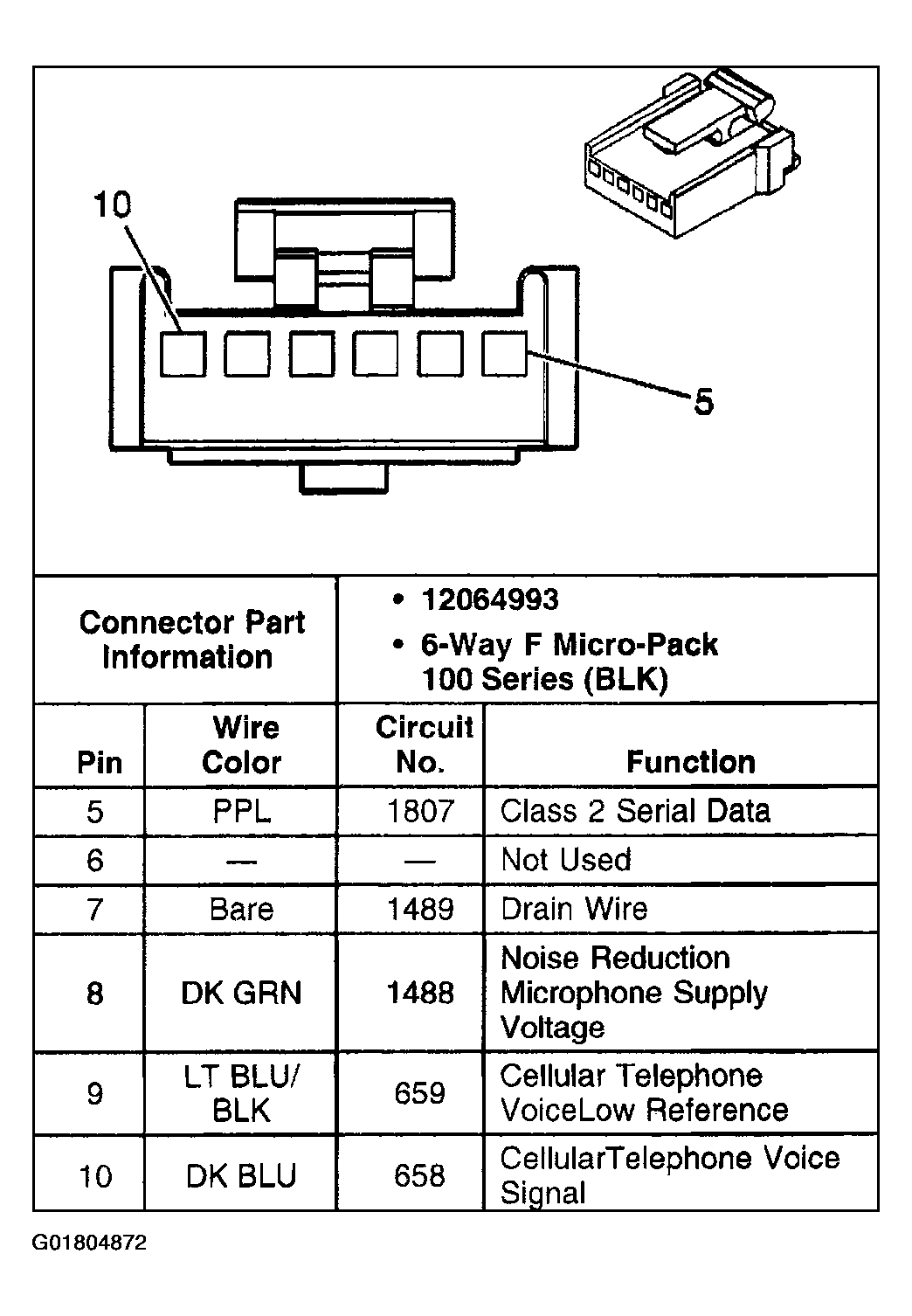

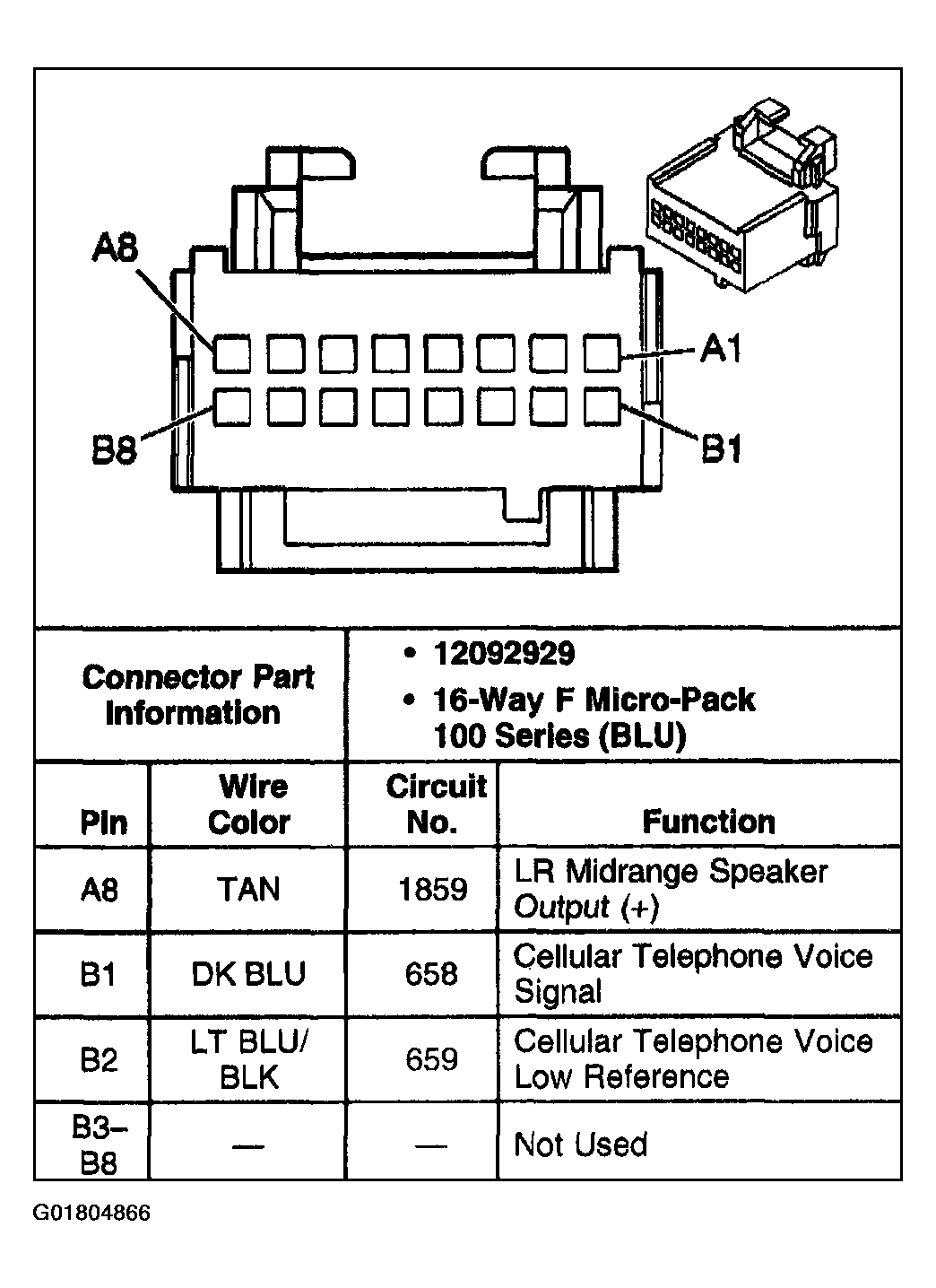

Fig 4: Audio Amplifier (w/UX8) C3 (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

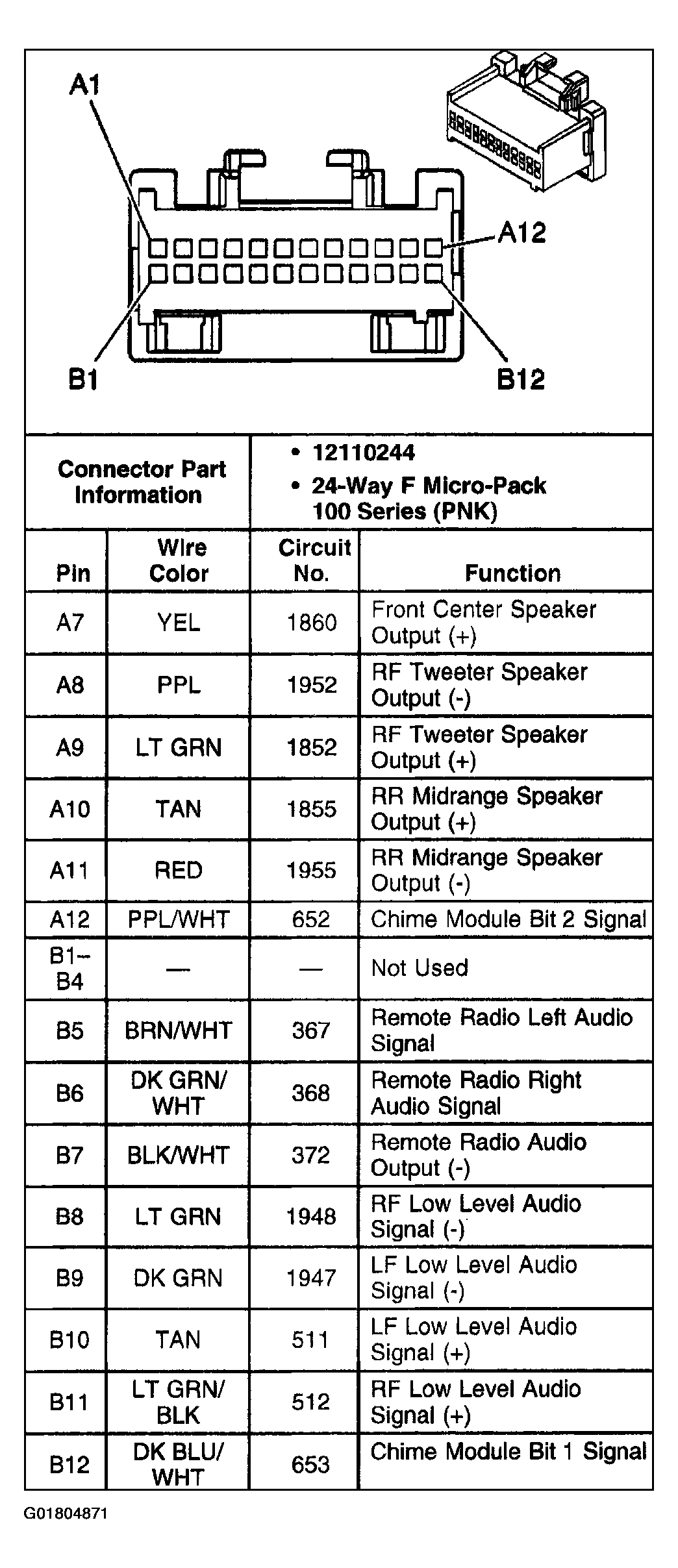

Fig 5: Audio Amplifier (w/UX8) C3 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

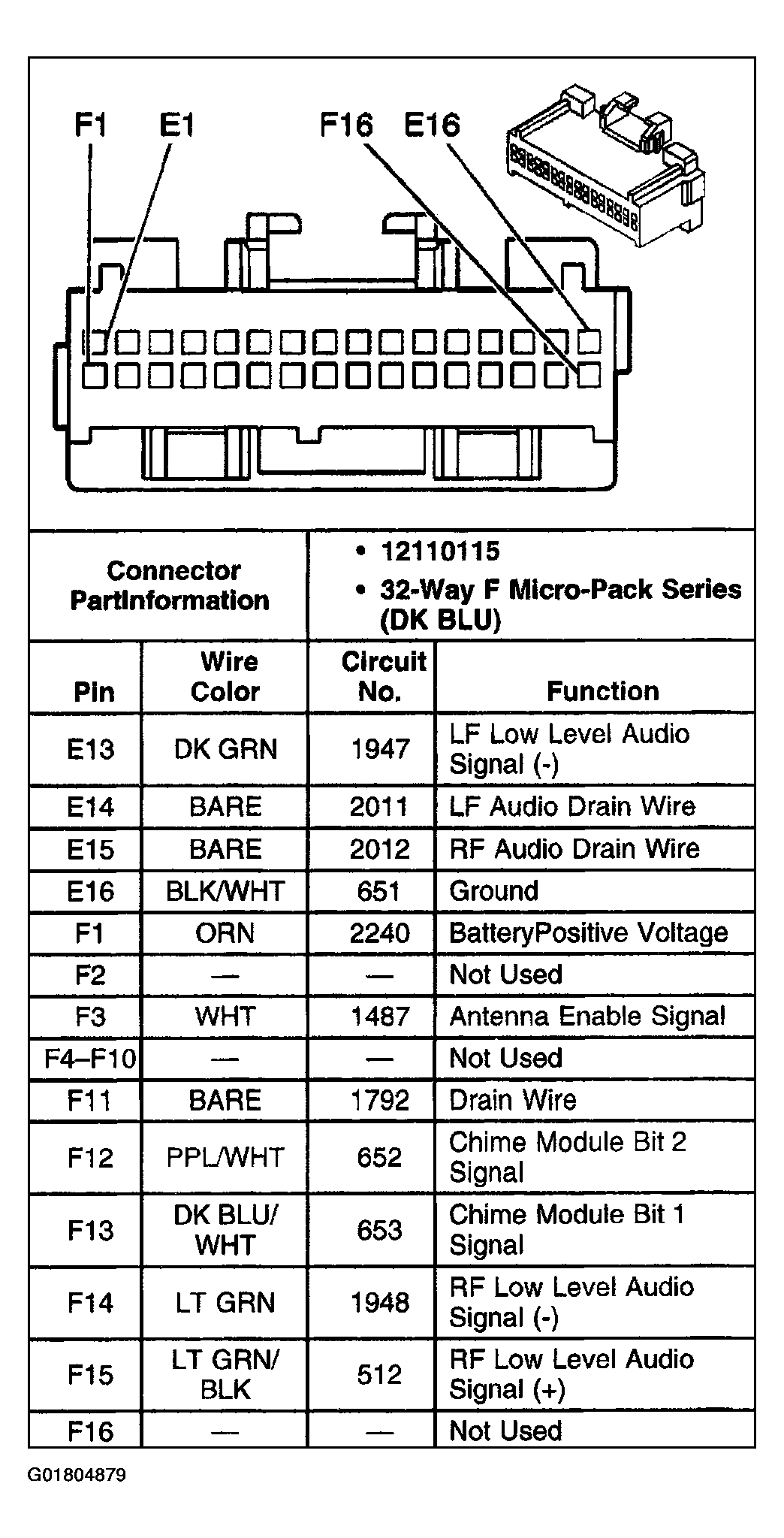

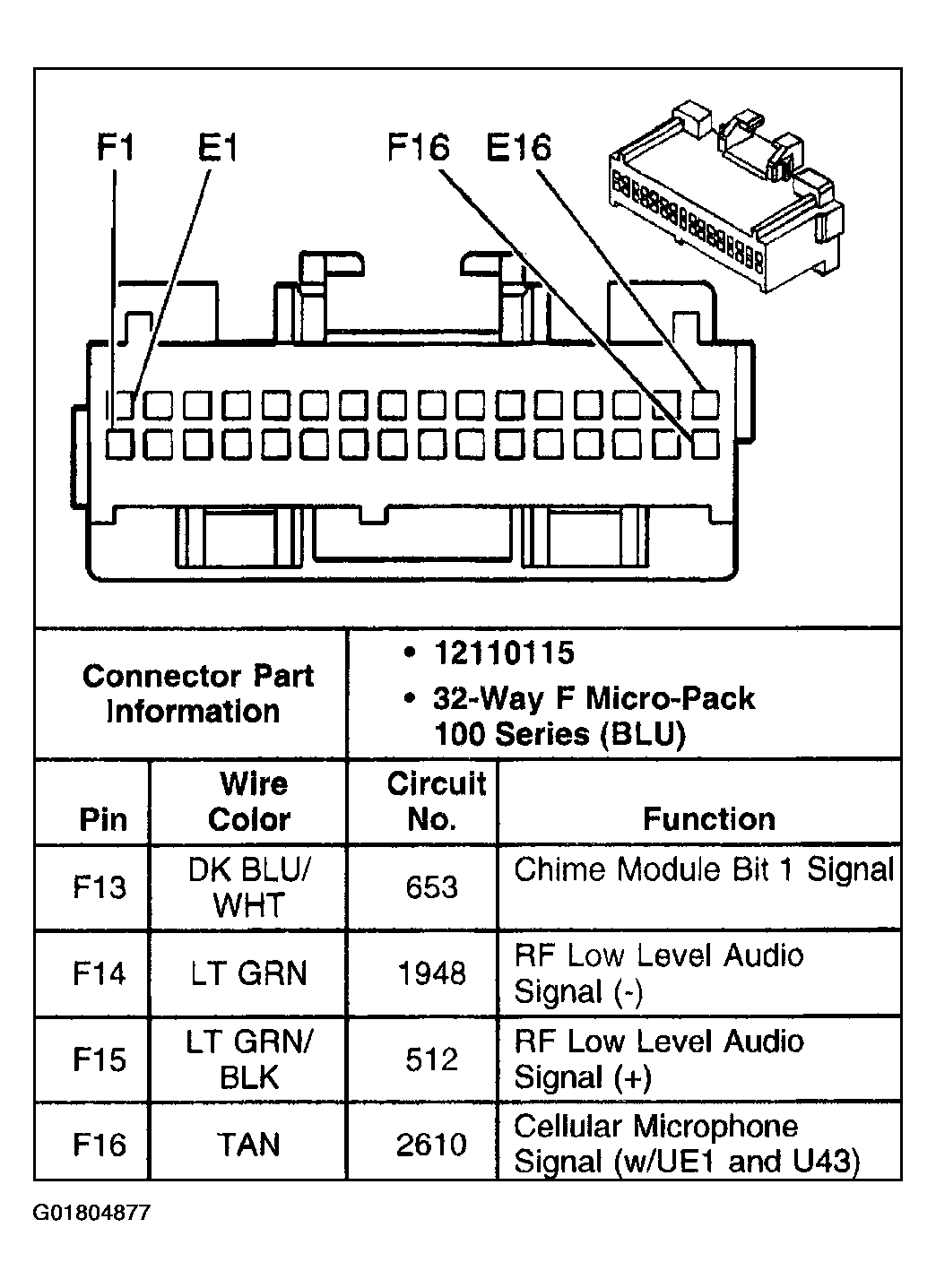

Fig 6: Audio Amplifier (w/U57) C1
Courtesy of GENERAL MOTORS CORP.

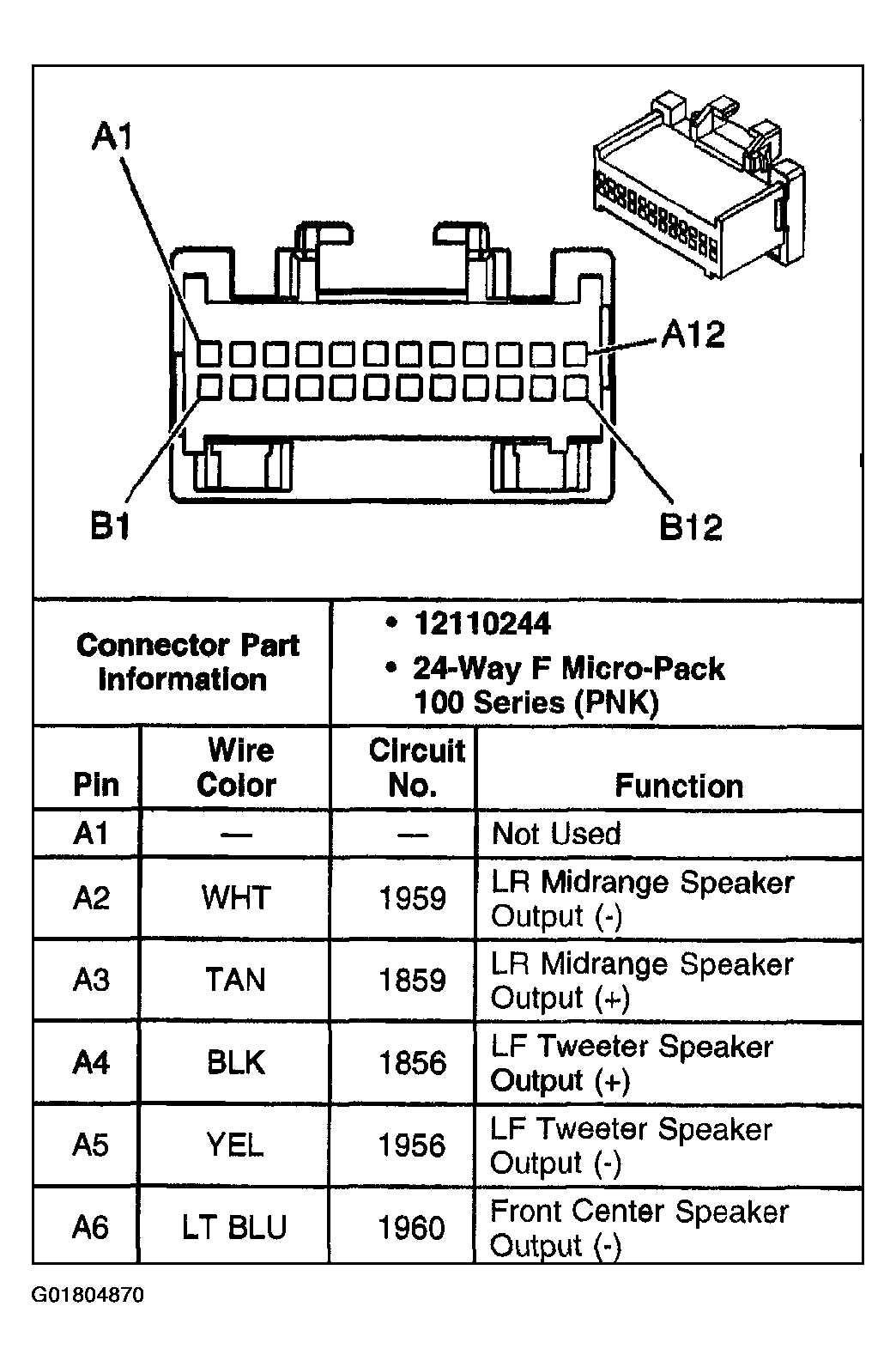

Fig 7: Audio Amplifier (w/U57) C2 (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

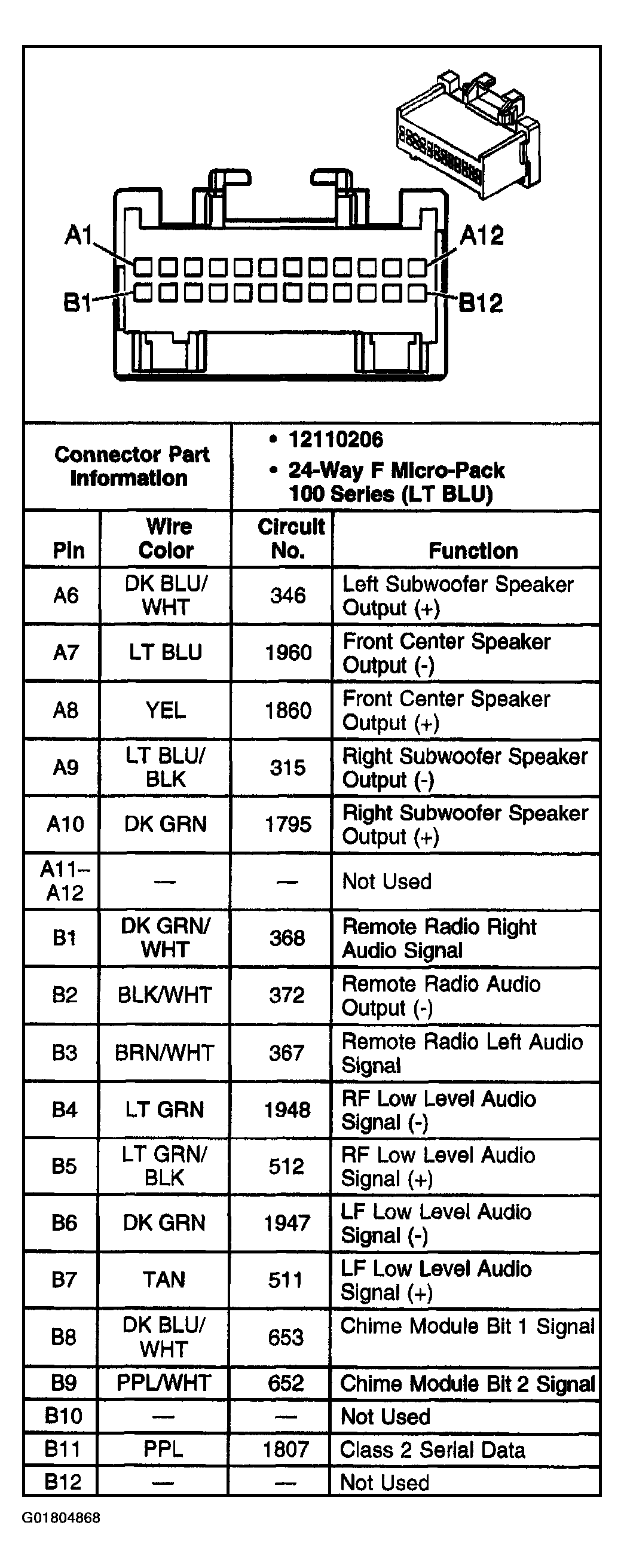

Fig 8: Audio Amplifier (w/U57) C2 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Audio Amplifier (w/U57) C3
Courtesy of GENERAL MOTORS CORP.
Fig 10: Digital Radio Receiver (U2K) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Digital Radio Receiver (U2K) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

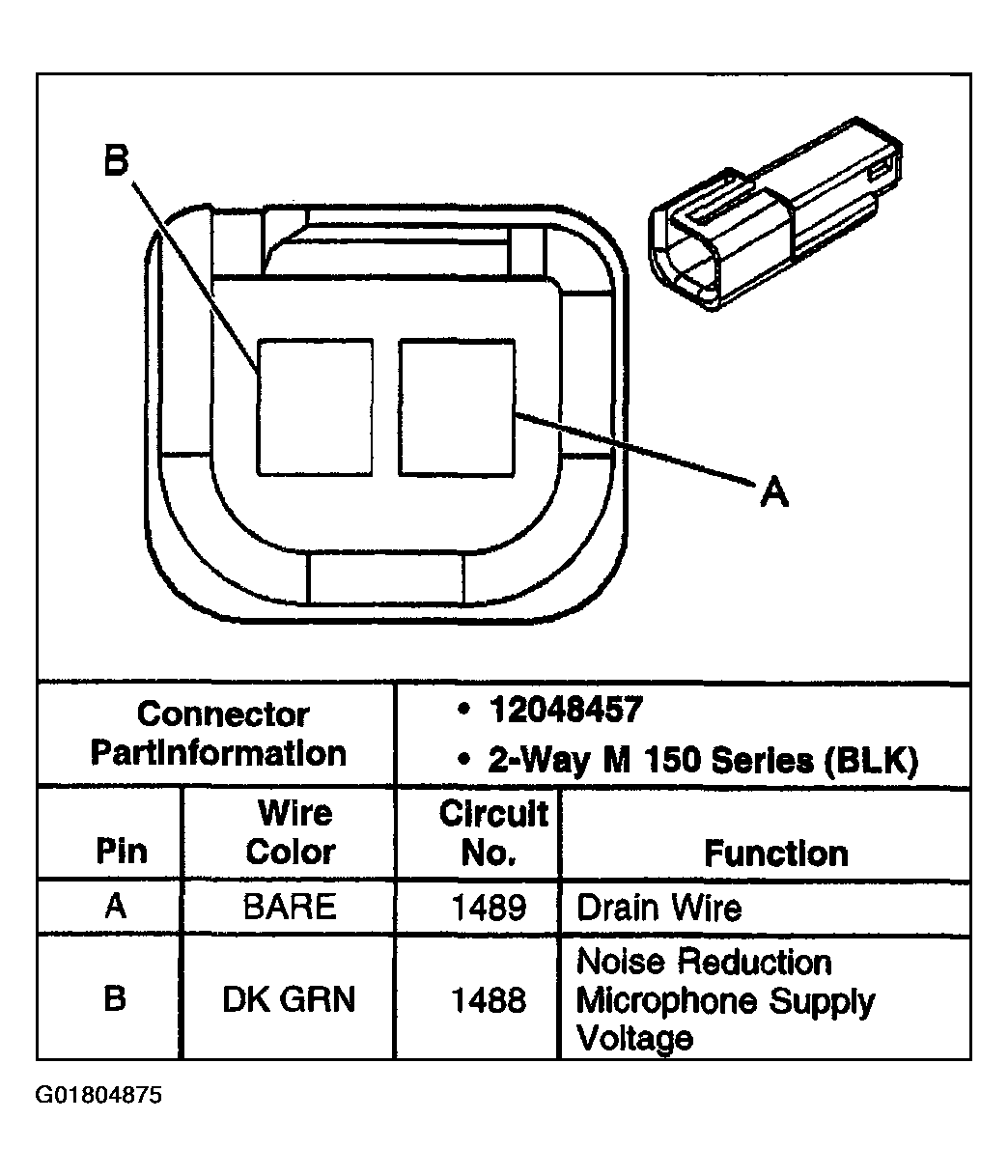

Fig 12: Noise Cancellation Microphone
Courtesy of GENERAL MOTORS CORP.

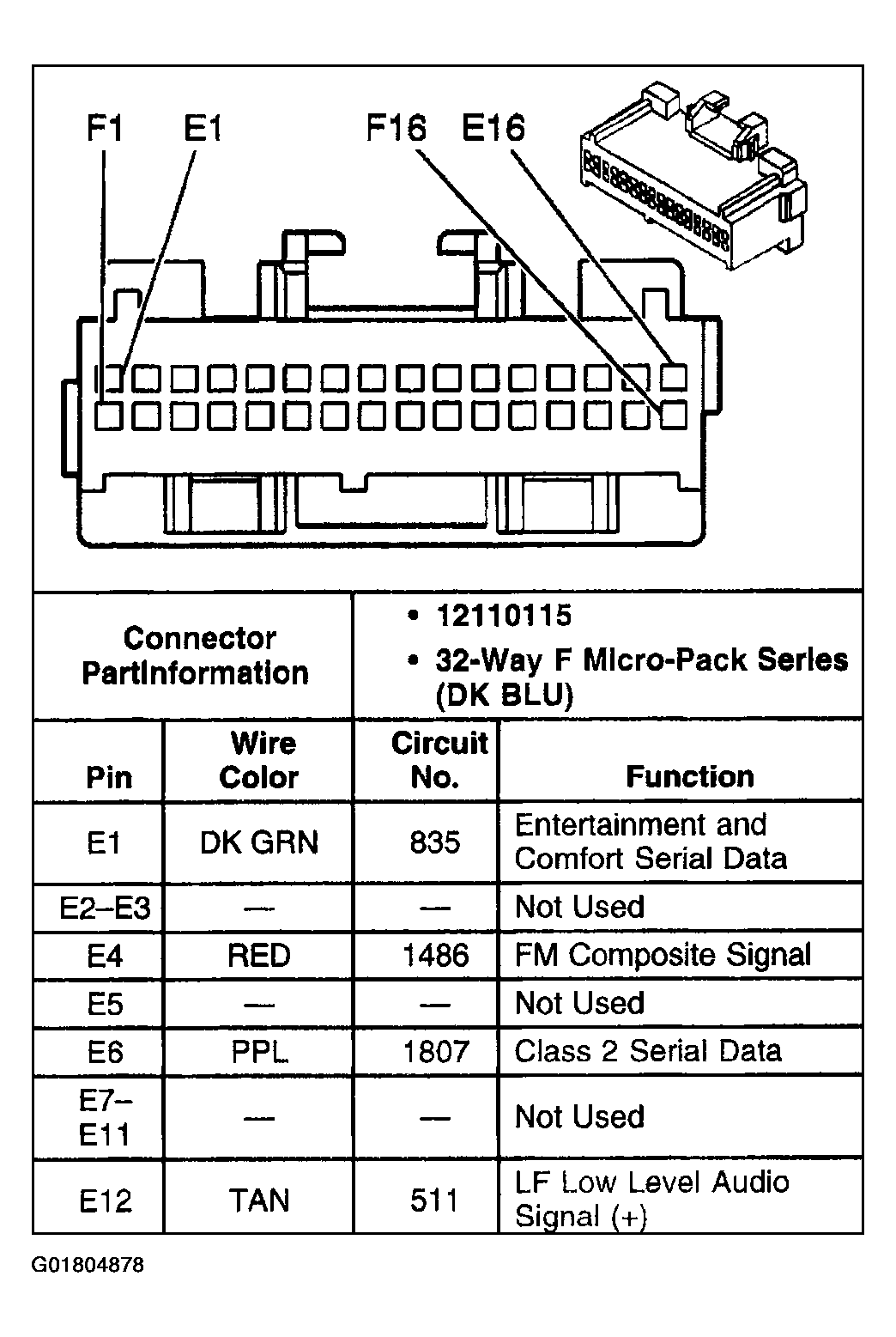

Fig 13: Radio (w/o U3R,U3S,U3Q) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Radio (w/o U3R,U3S,U3Q) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

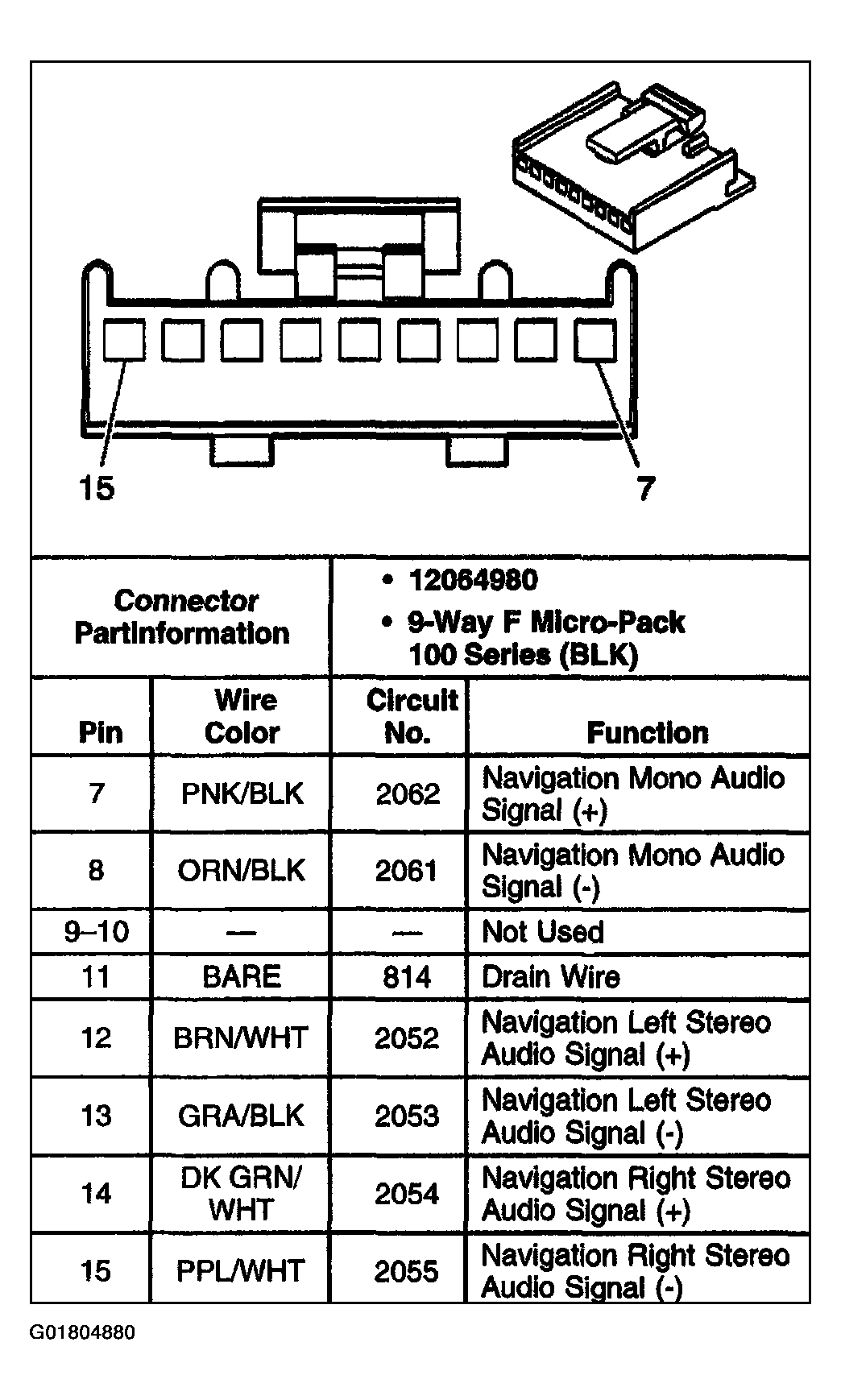

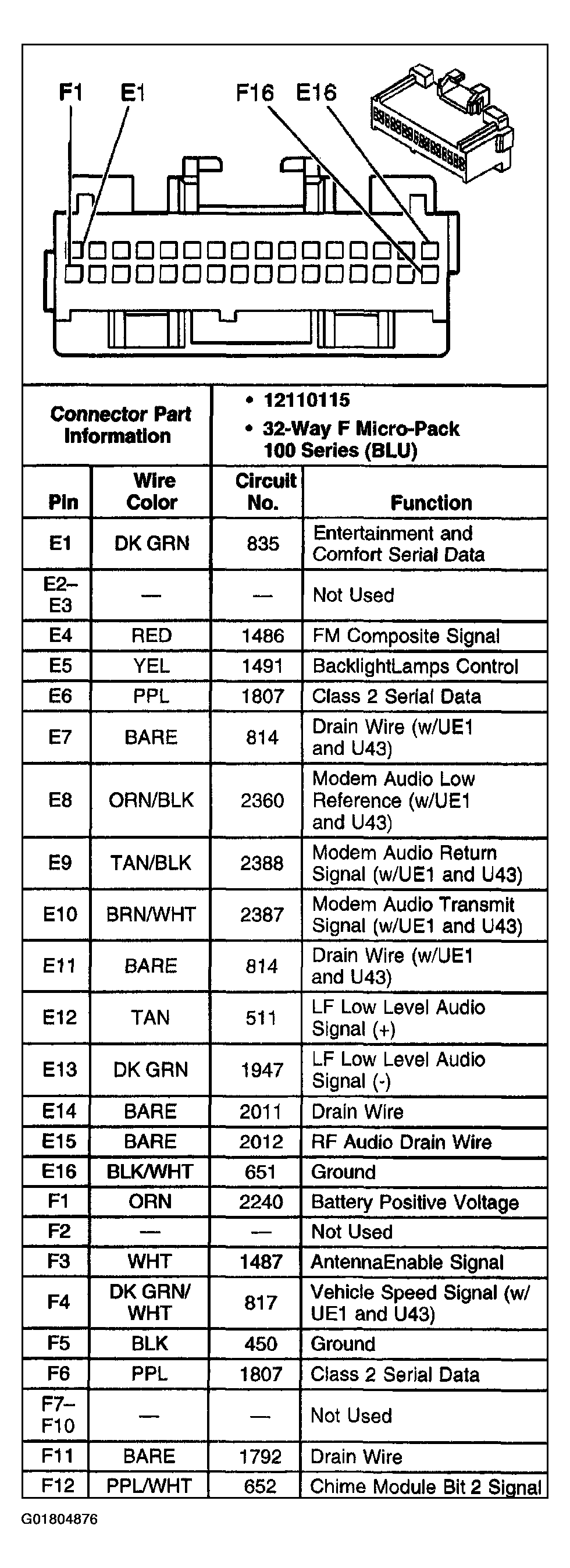

Fig 15: Radio C1 (w/U3R,U3S,U3Q) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Radio C1 (w/U3R,U3S,U3Q) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

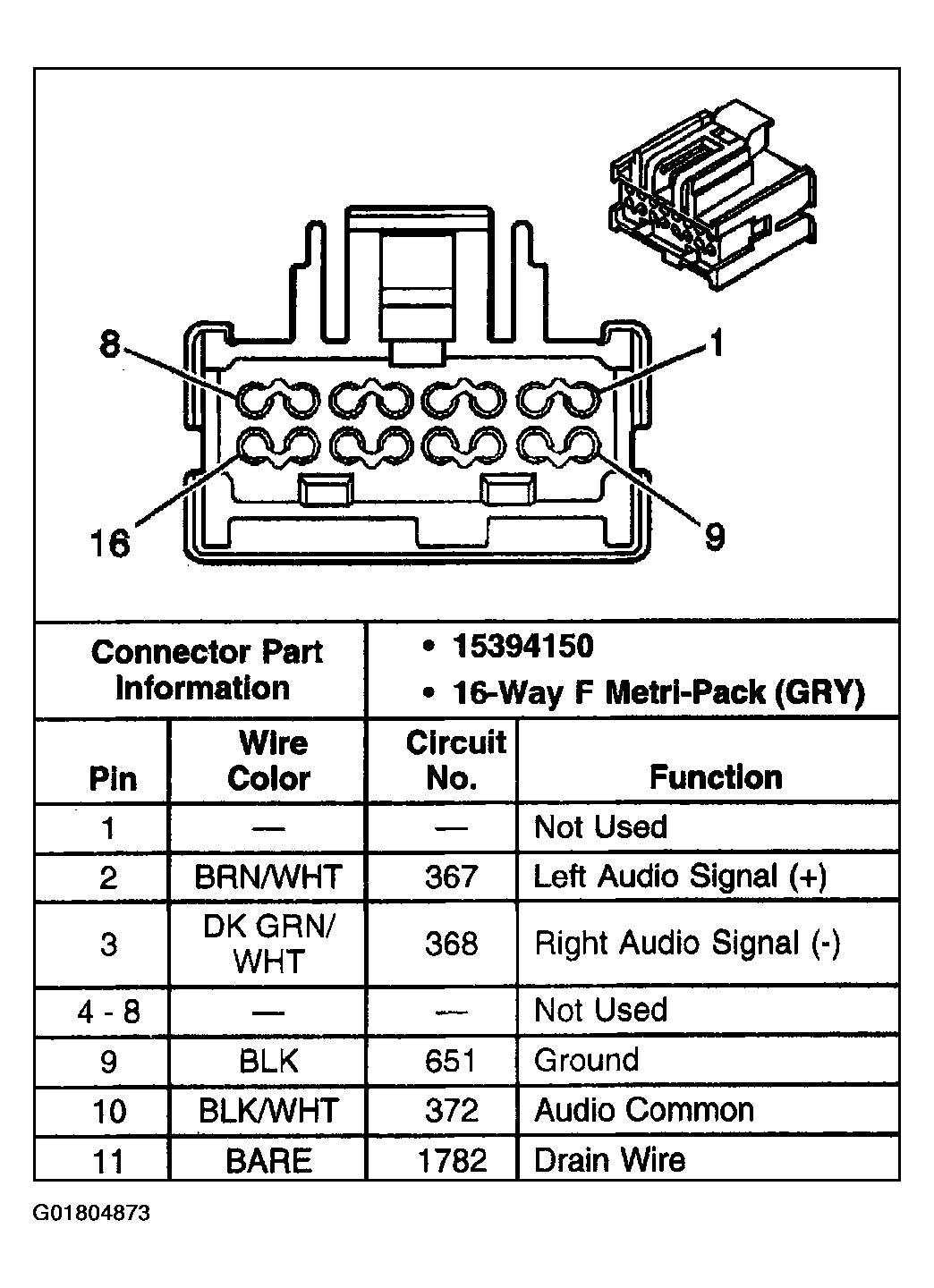

Fig 17: Radio C2 (w/U3R,U3S,U3Q)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Radio Antenna Module
Courtesy of GENERAL MOTORS CORP.

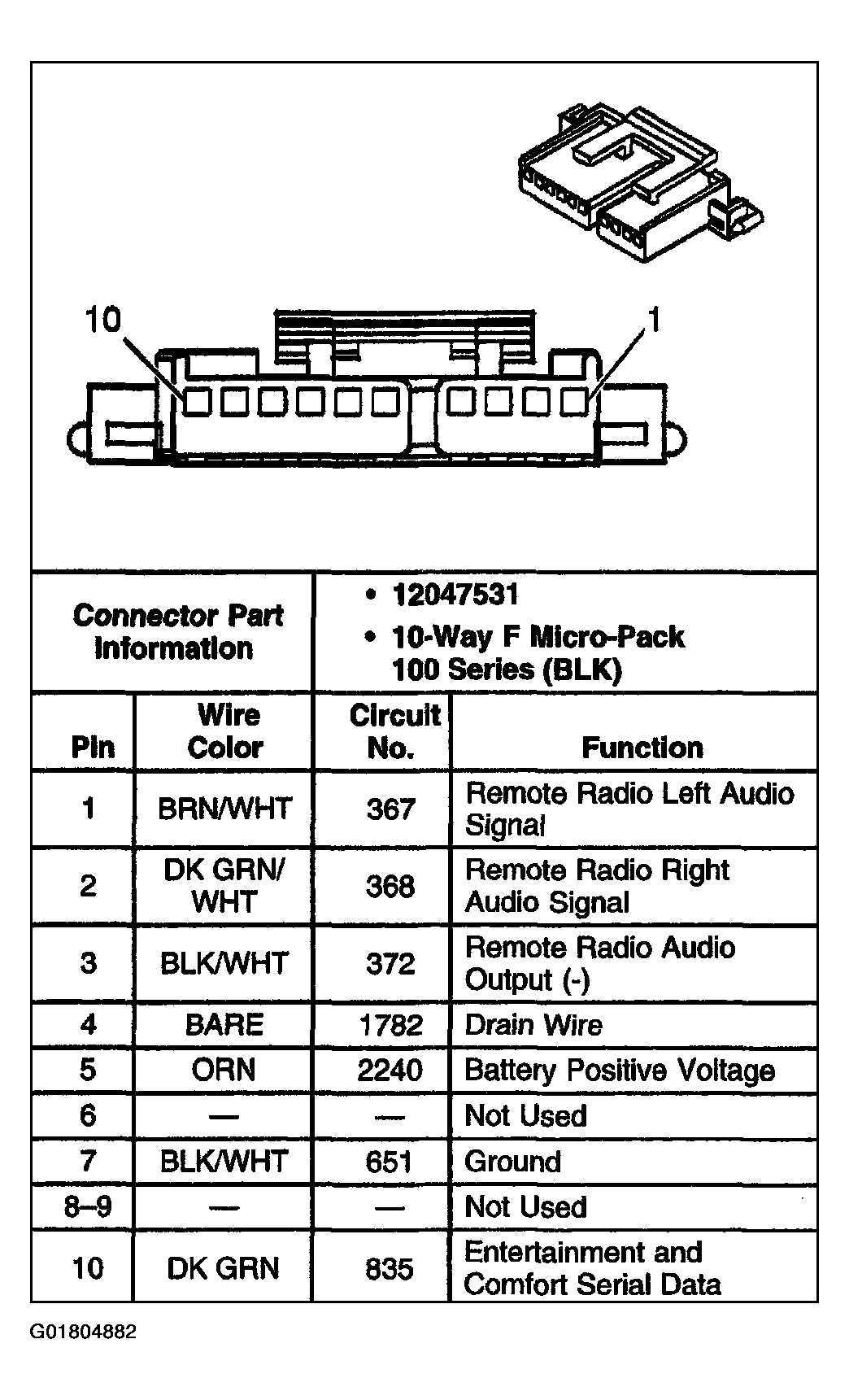

Fig 19: Remote Playback Device - CD Changer
Courtesy of GENERAL MOTORS CORP.

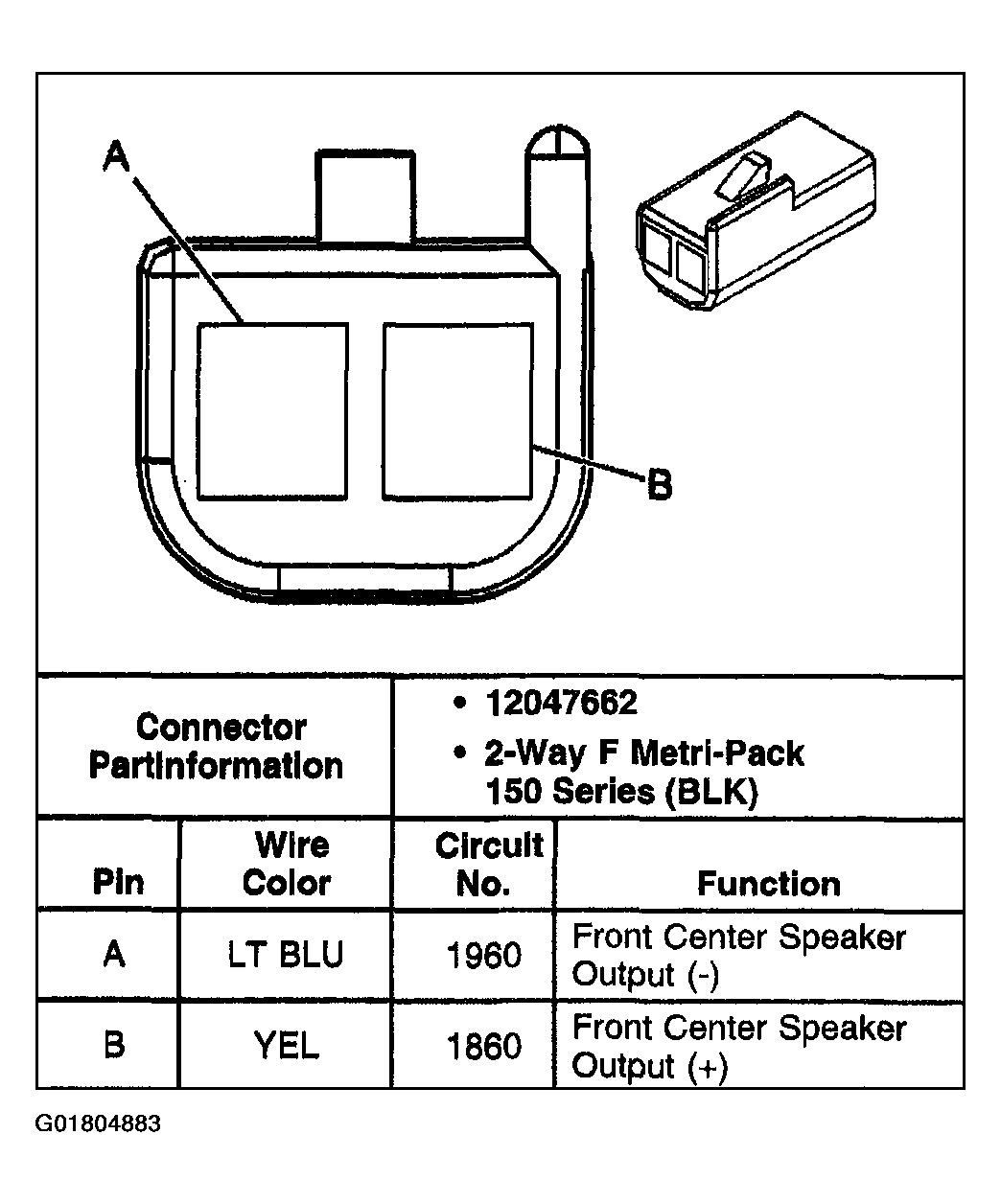

Fig 20: Speaker - Front I/P Midrange
Courtesy of GENERAL MOTORS CORP.

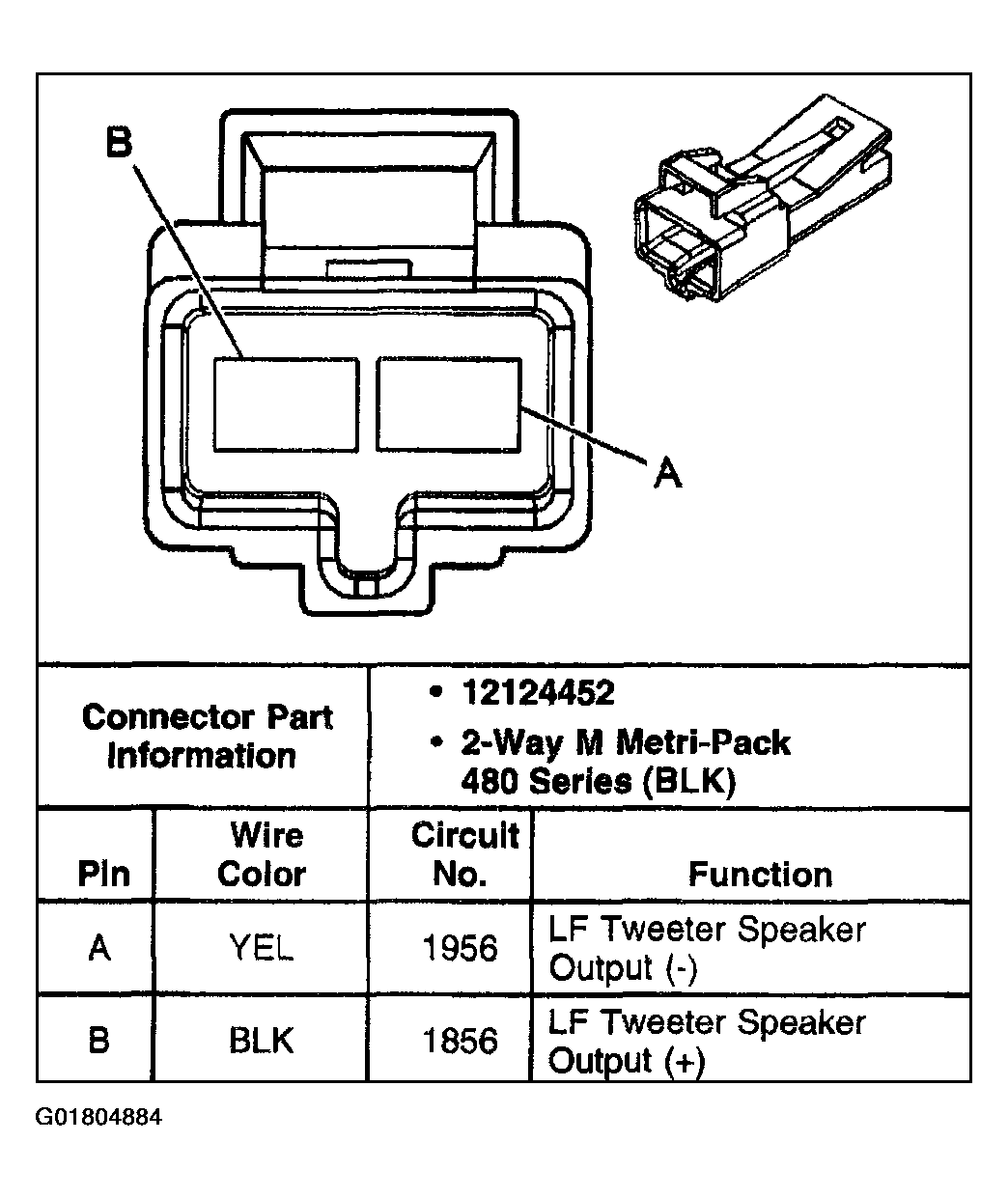

Fig 21: Speaker - LF (w/U57)
Courtesy of GENERAL MOTORS CORP.

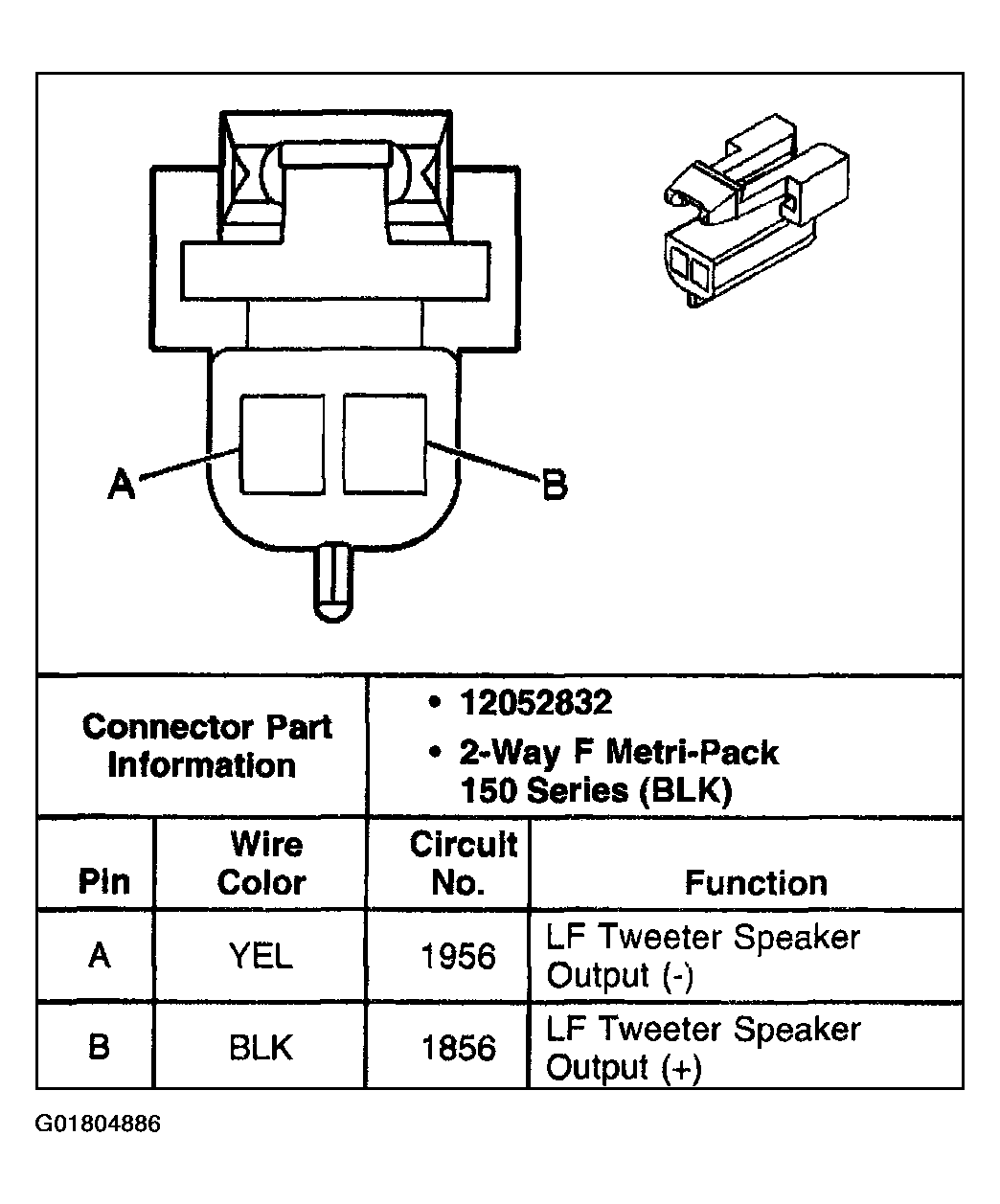

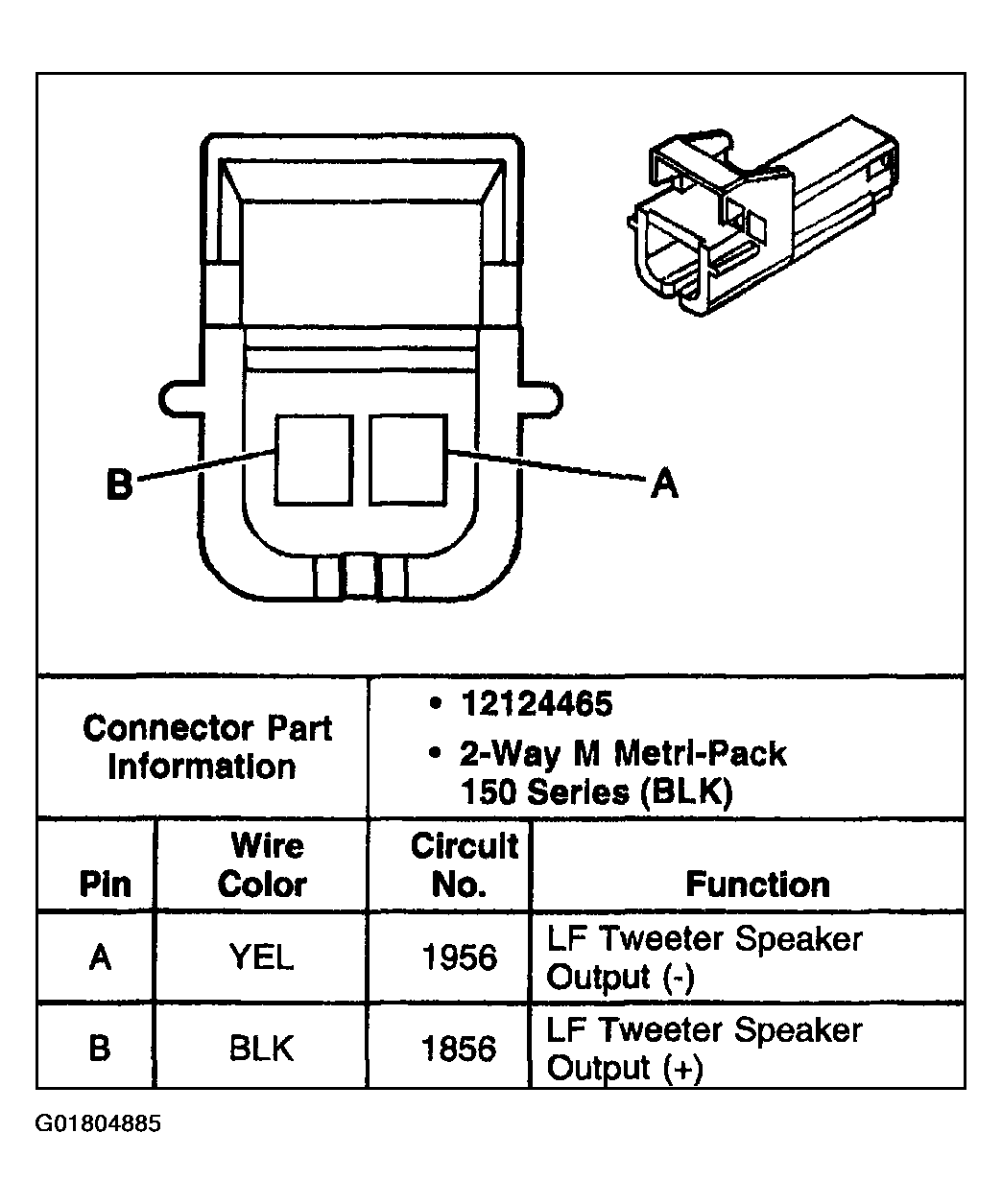

Fig 22: Speaker - LF (w/UX8)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Speaker - LF Door (w/U57)
Courtesy of GENERAL MOTORS CORP.

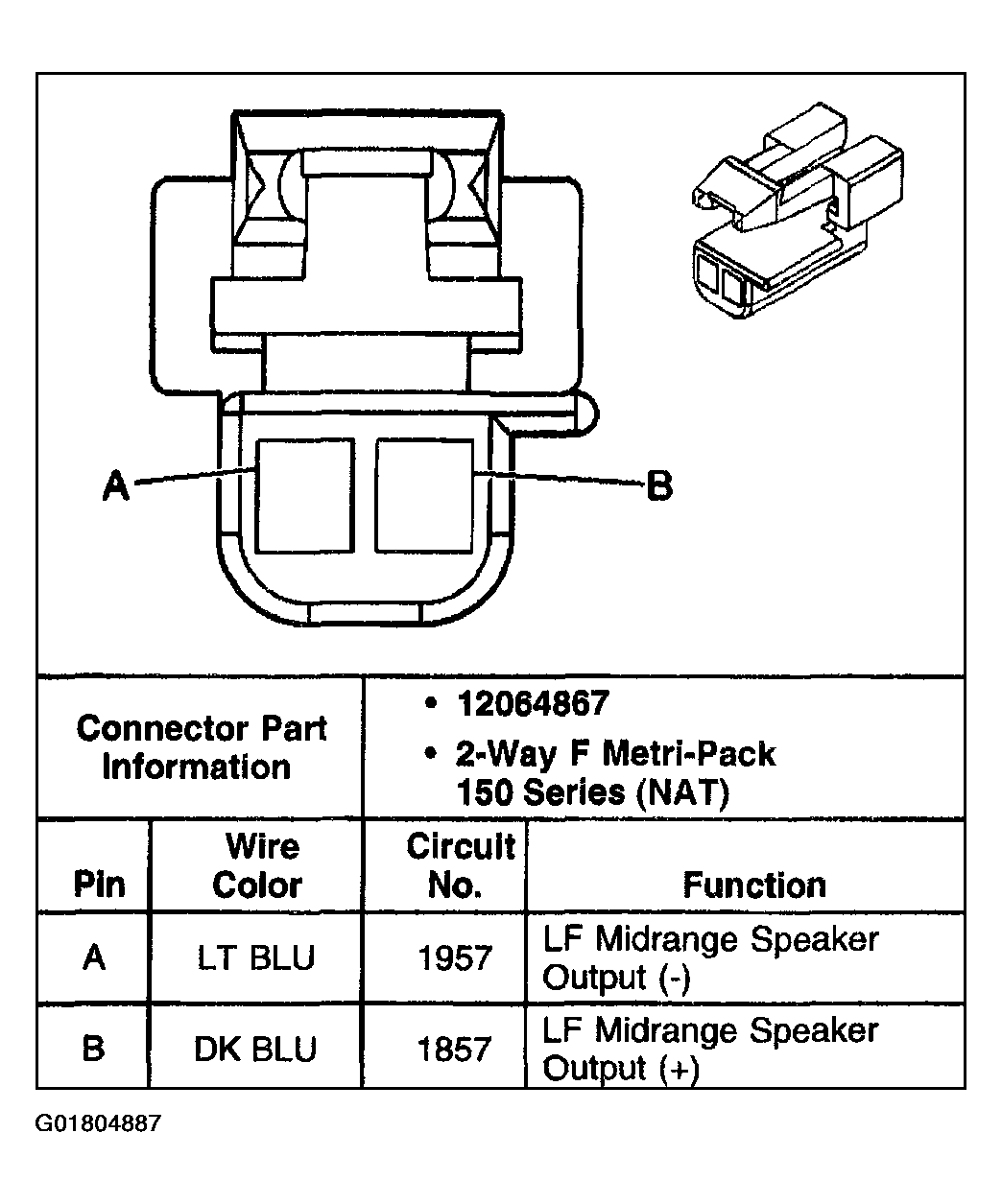

Fig 24: Speaker - LF Door (w/UX8)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Speaker - LR Door
Courtesy of GENERAL MOTORS CORP.

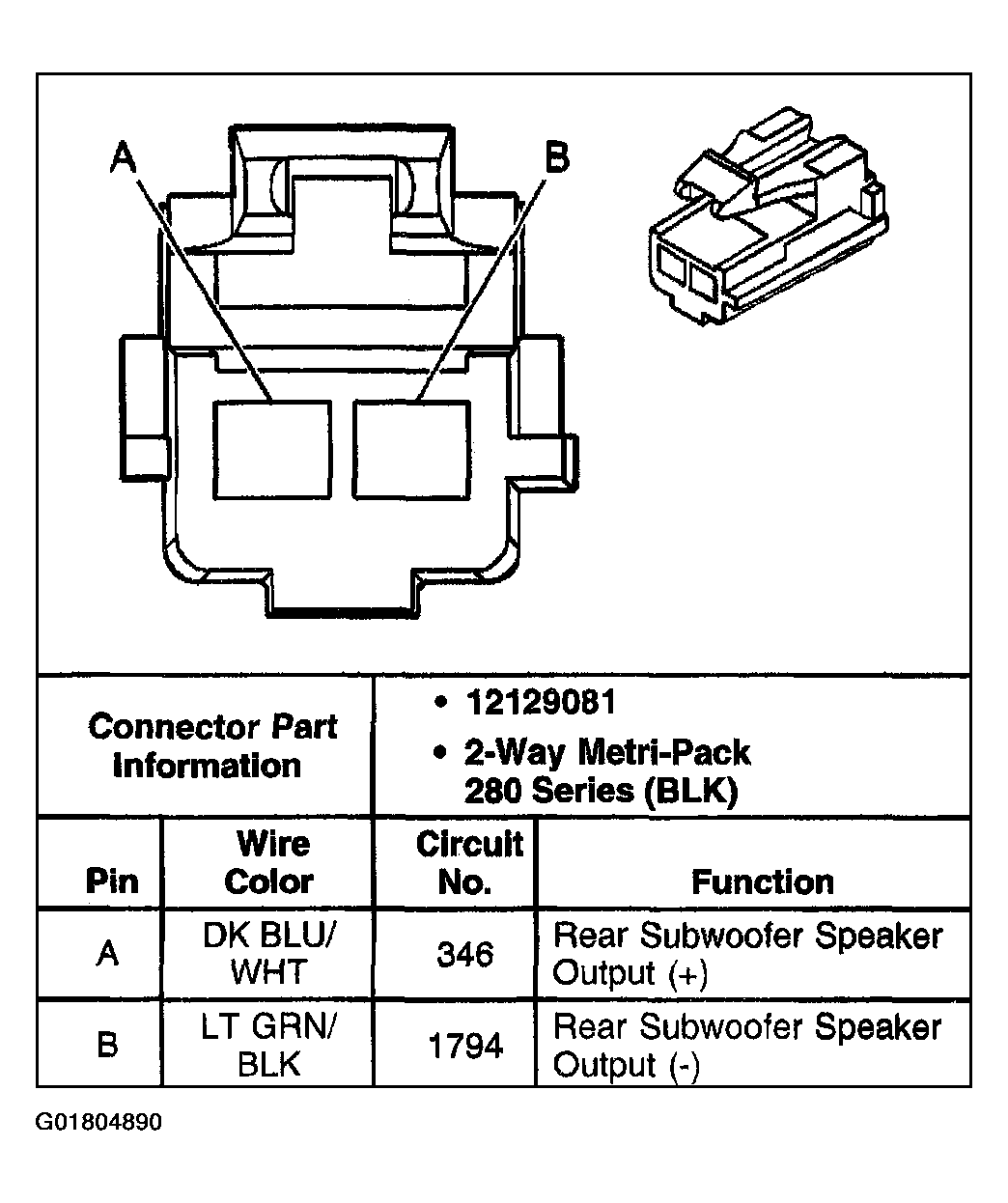

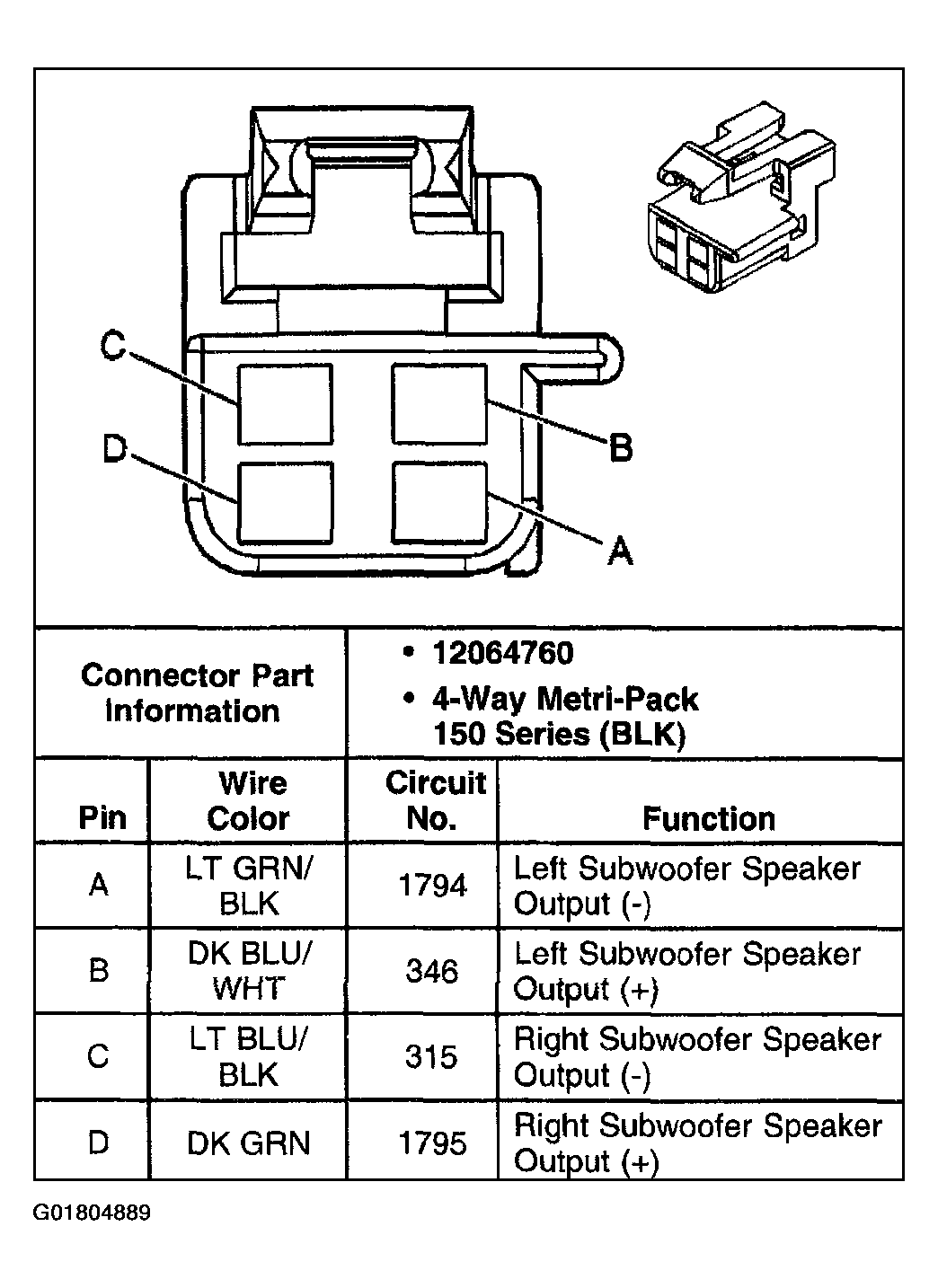

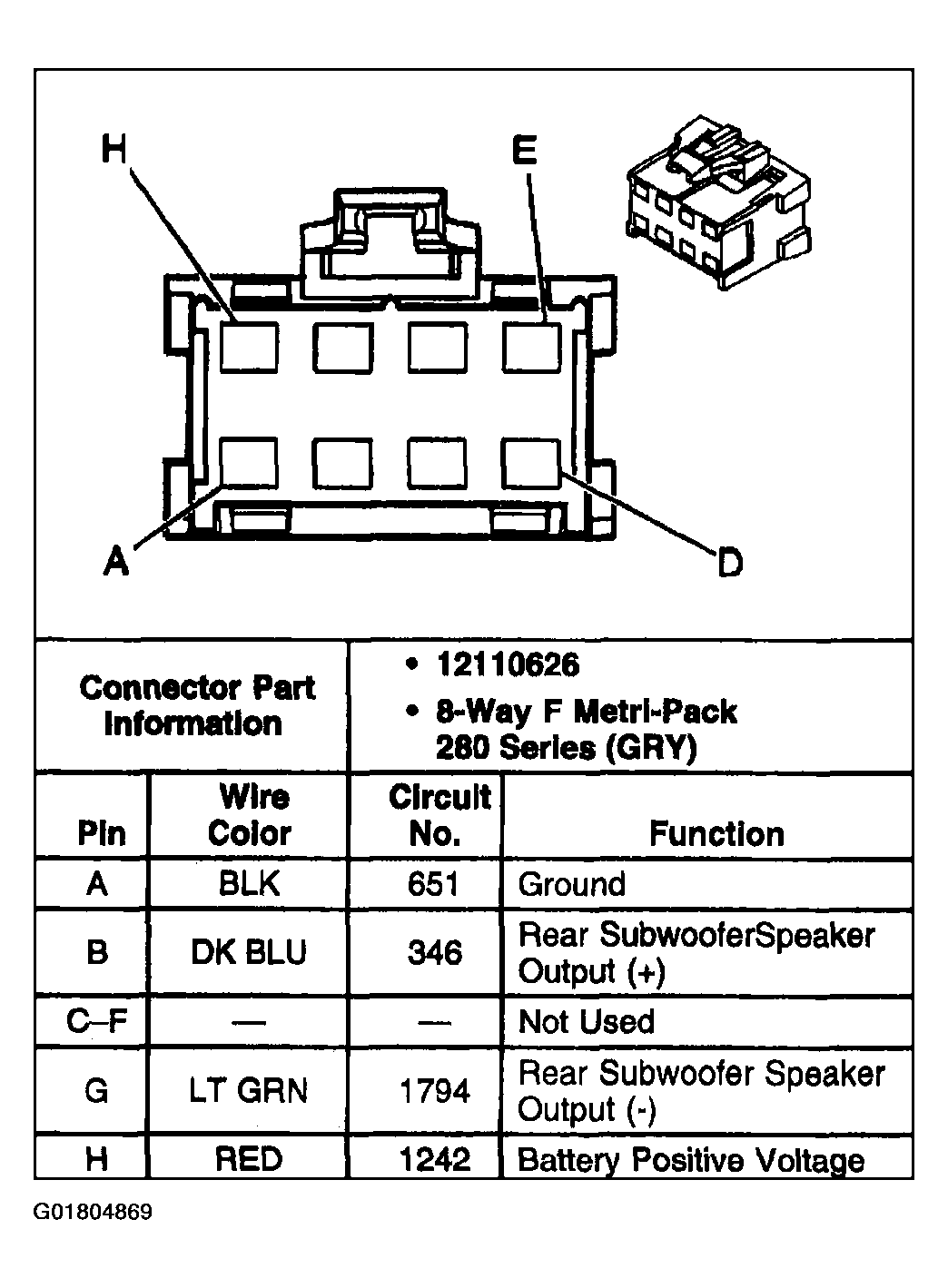

Fig 26: Speaker - Rear Subwoofer (w/UX8)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Speaker - Rear Subwoofer (w/U57)
Courtesy of GENERAL MOTORS CORP.

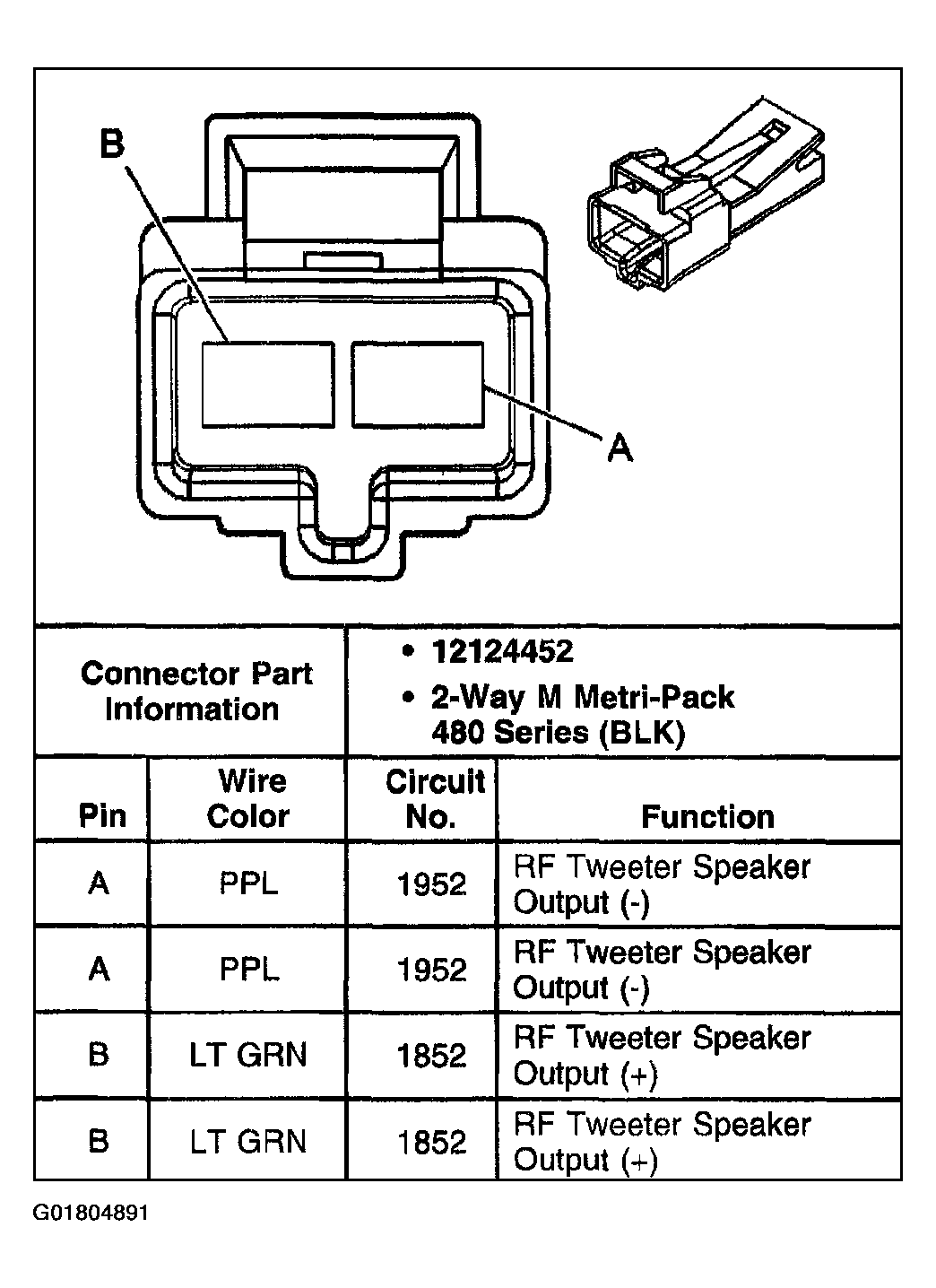

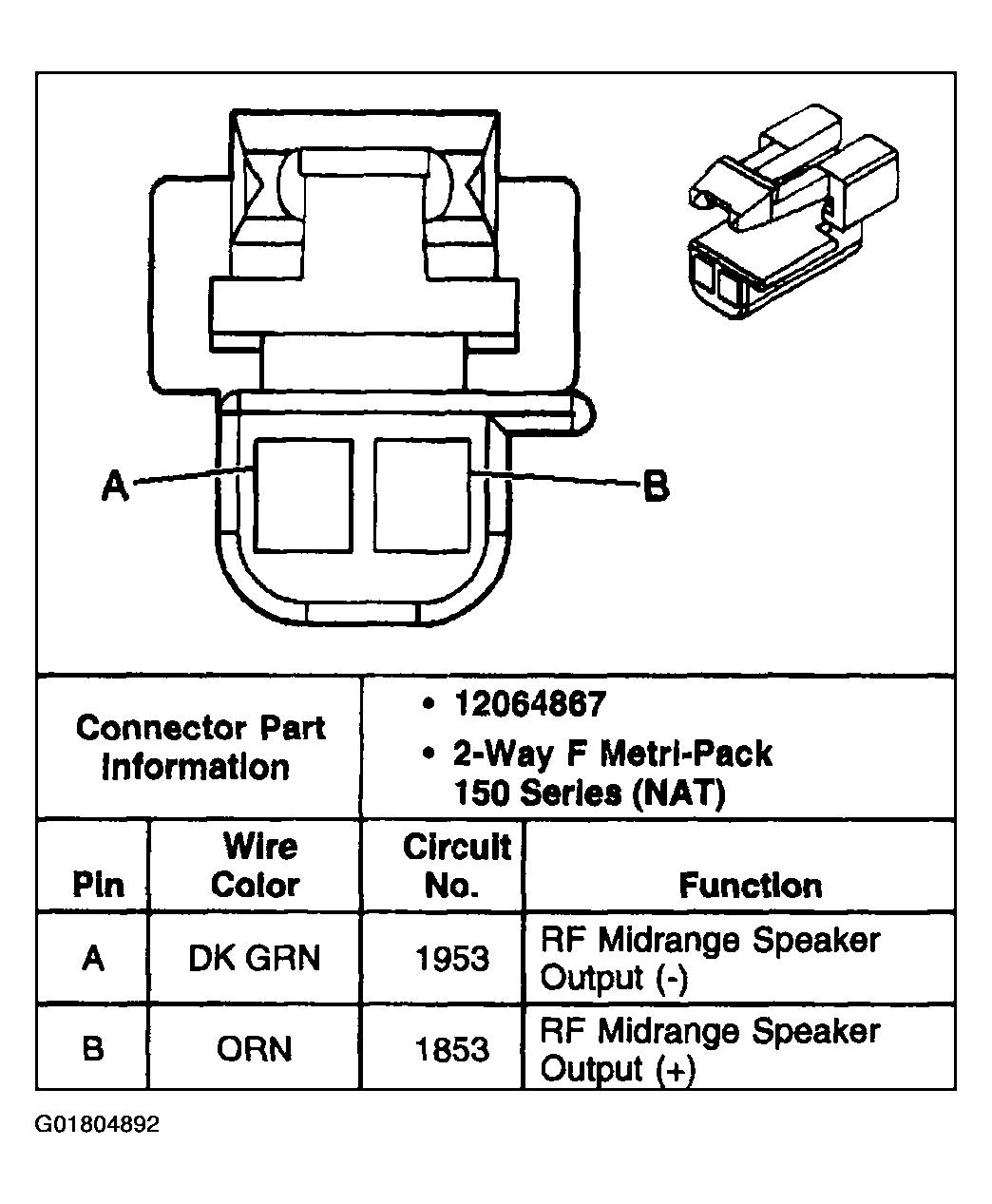

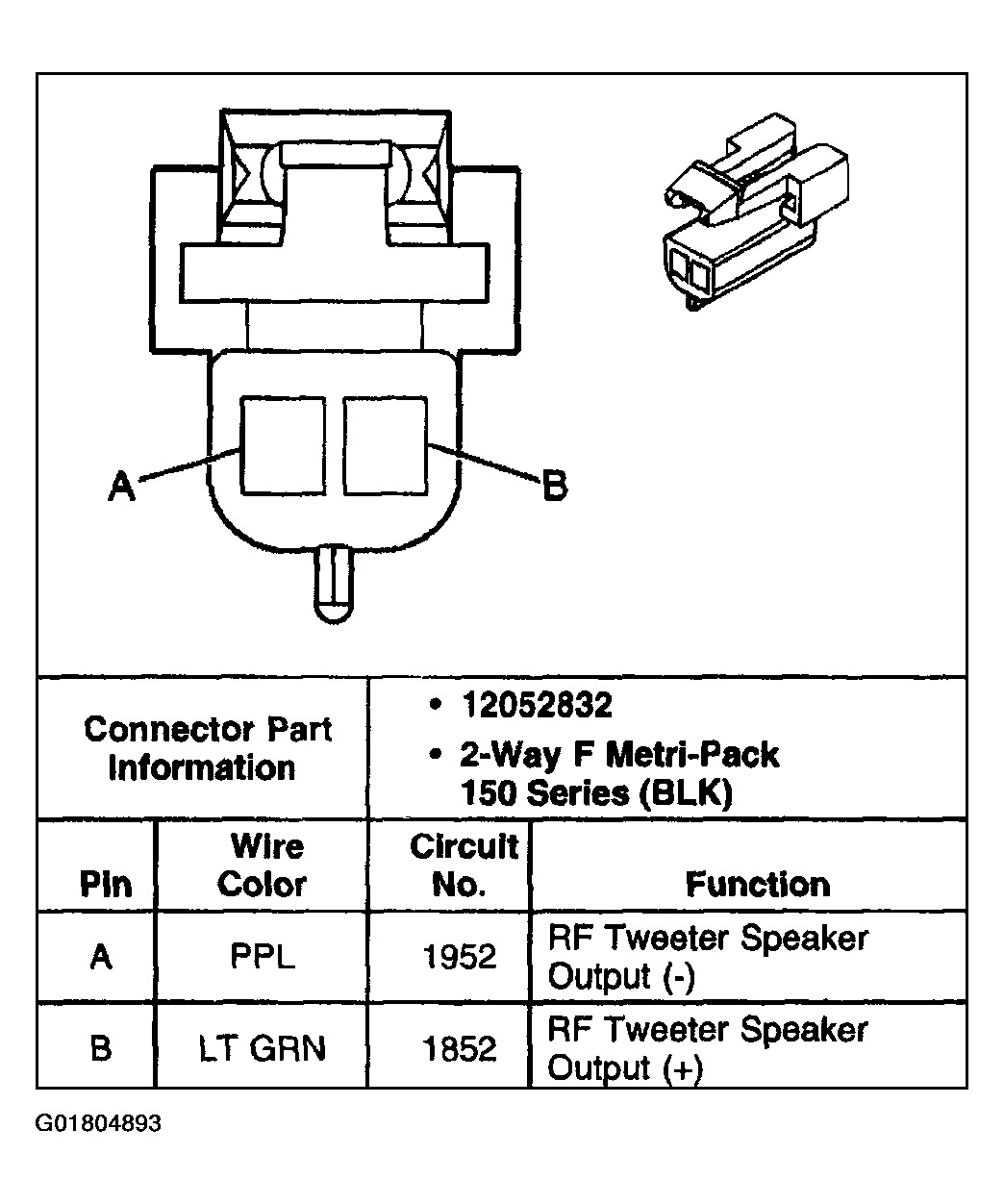

Fig 28: Speaker - RF (w/U57)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Speaker - RF Door (w/UX8)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Speaker - RF Door (w/U57)
Courtesy of GENERAL MOTORS CORP.

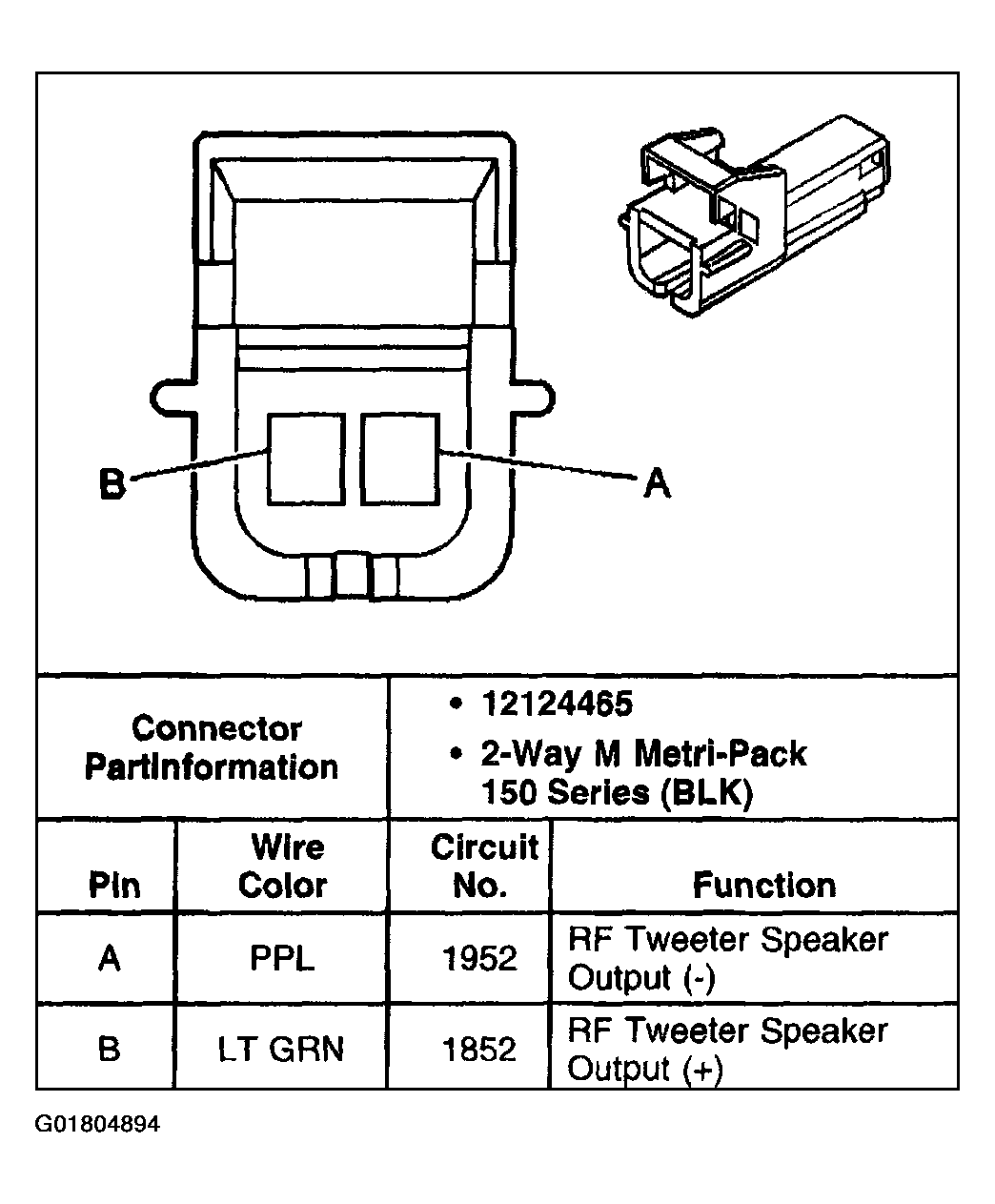

Fig 31: Speaker RF Door (w/UX8)
Courtesy of GENERAL MOTORS CORP.

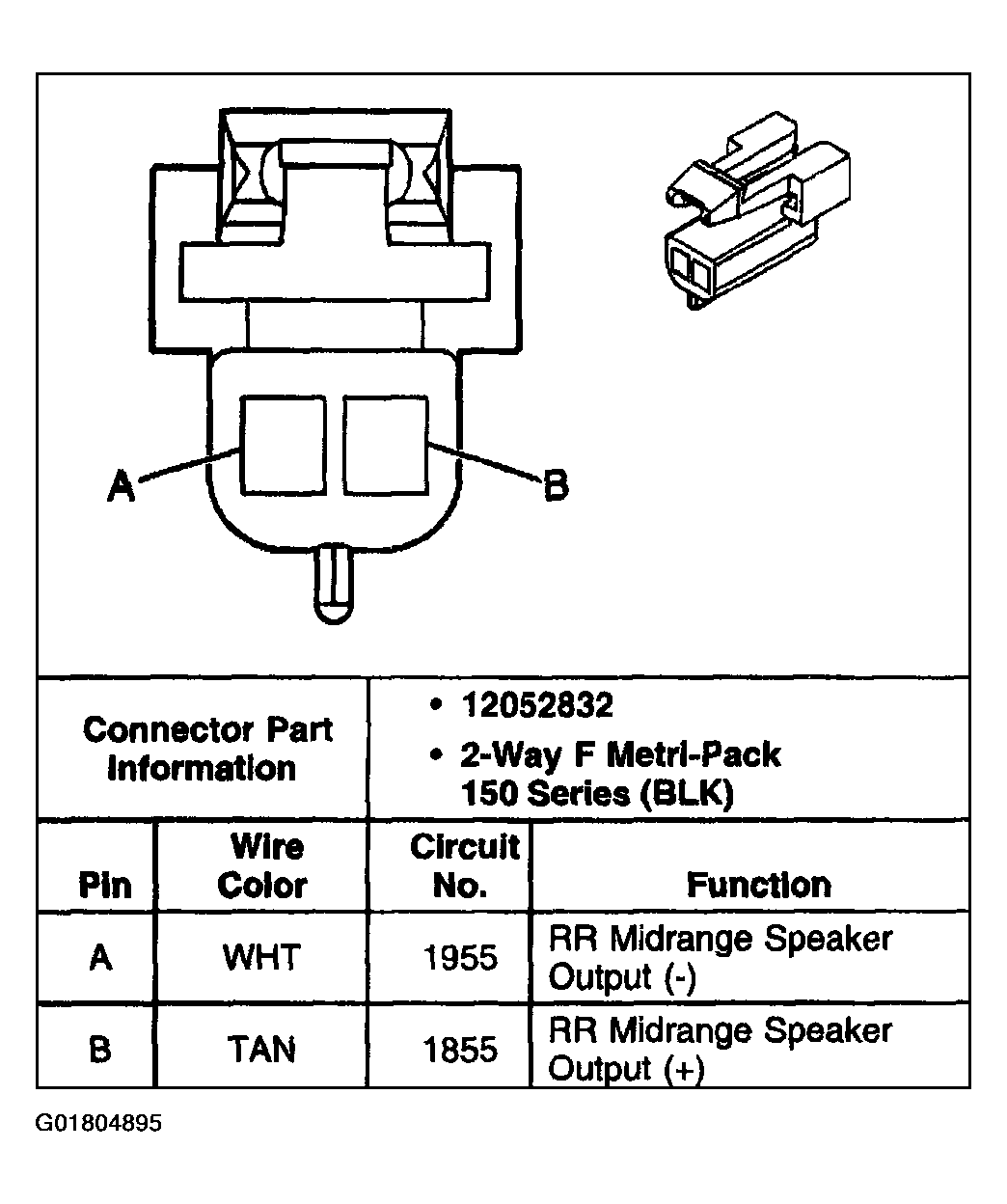

Fig 32: Speaker - RR Door
Courtesy of GENERAL MOTORS CORP.

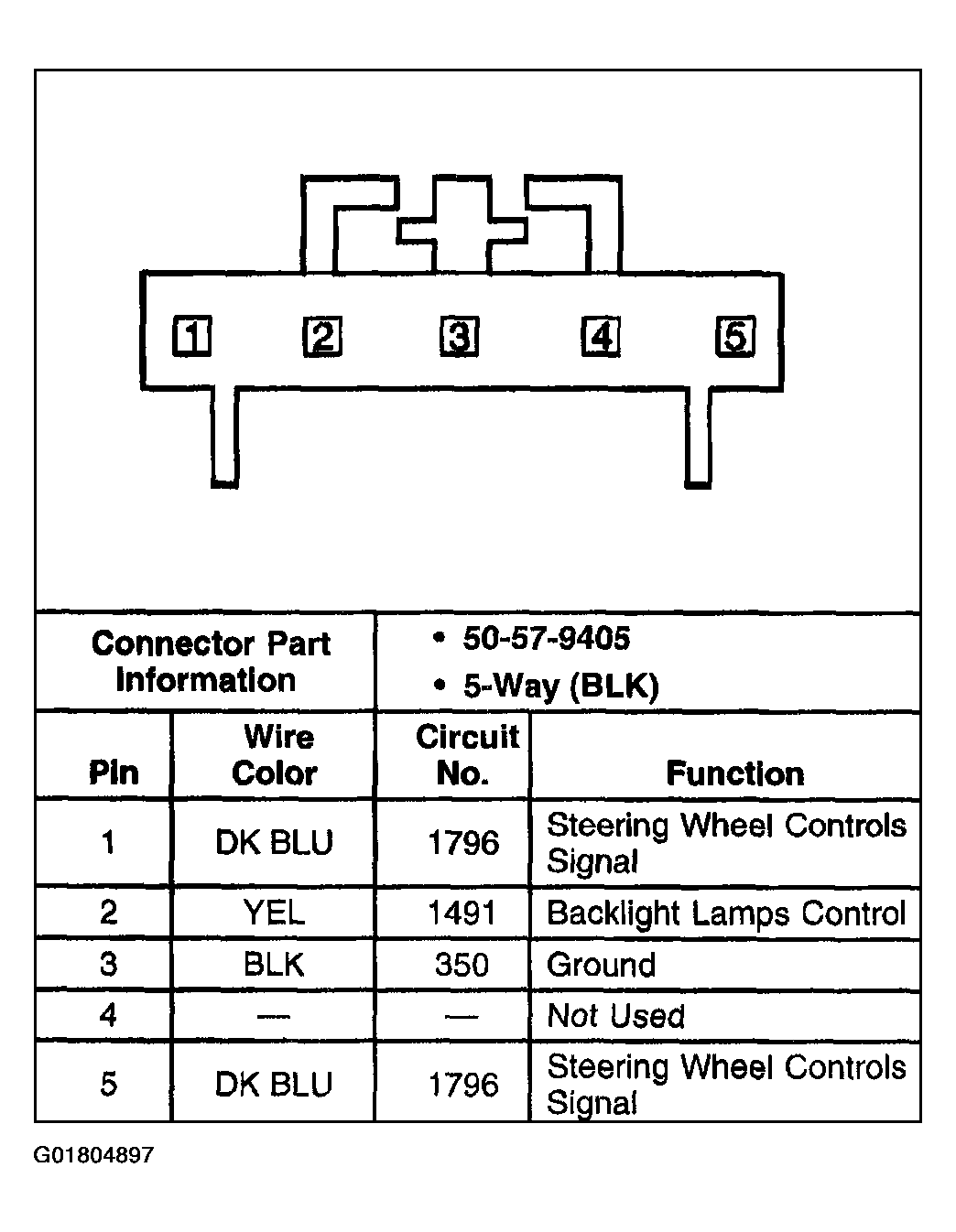

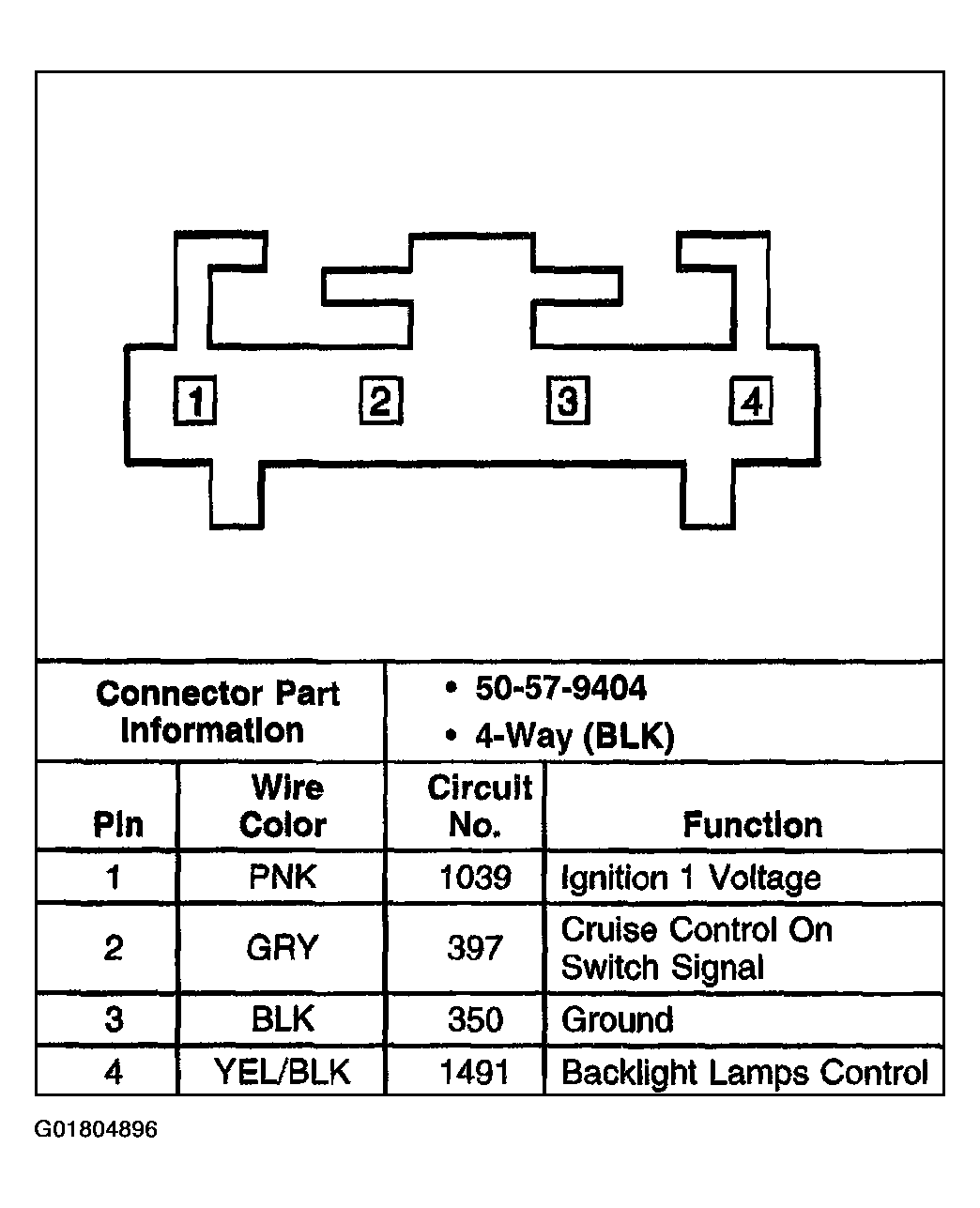

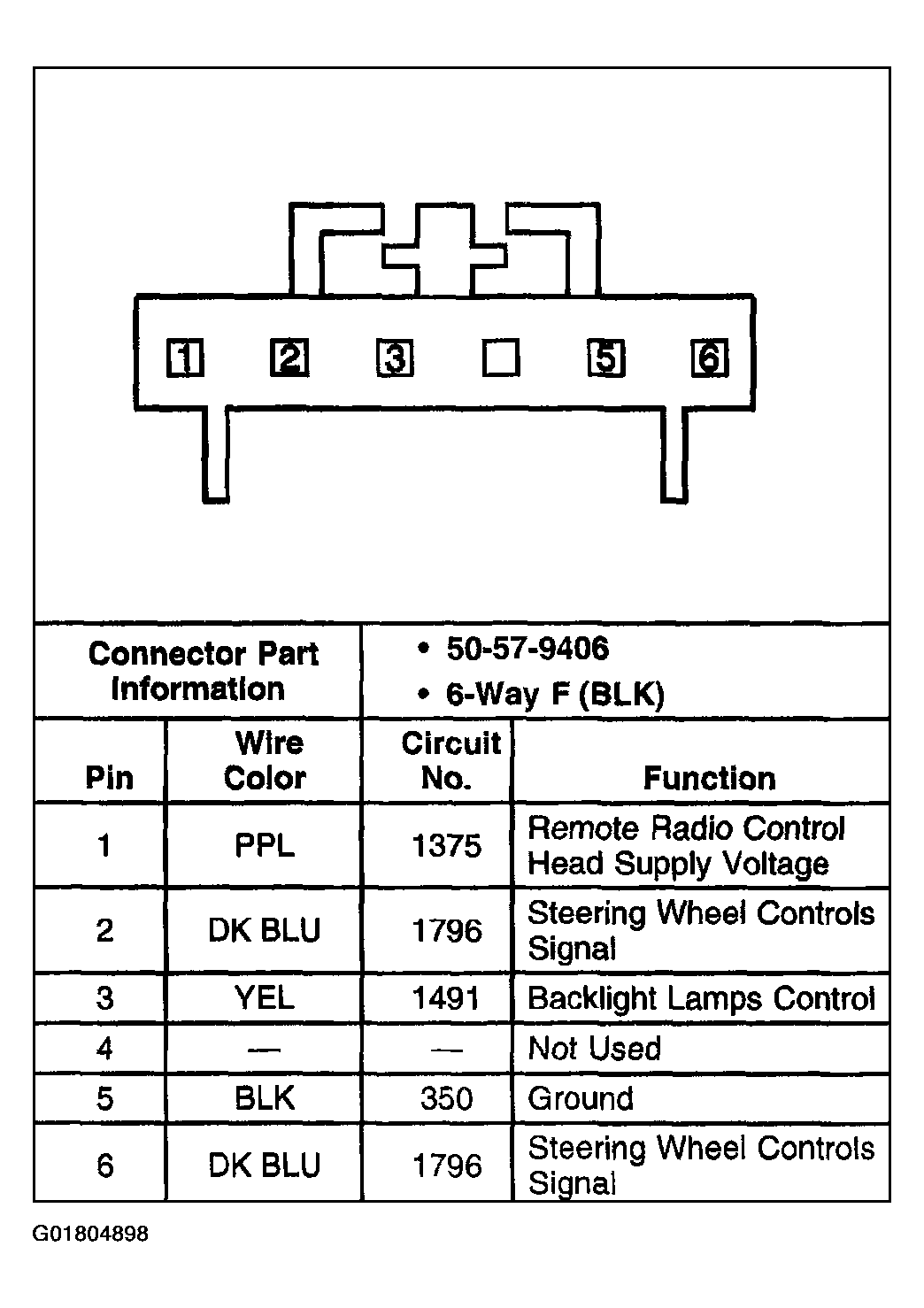

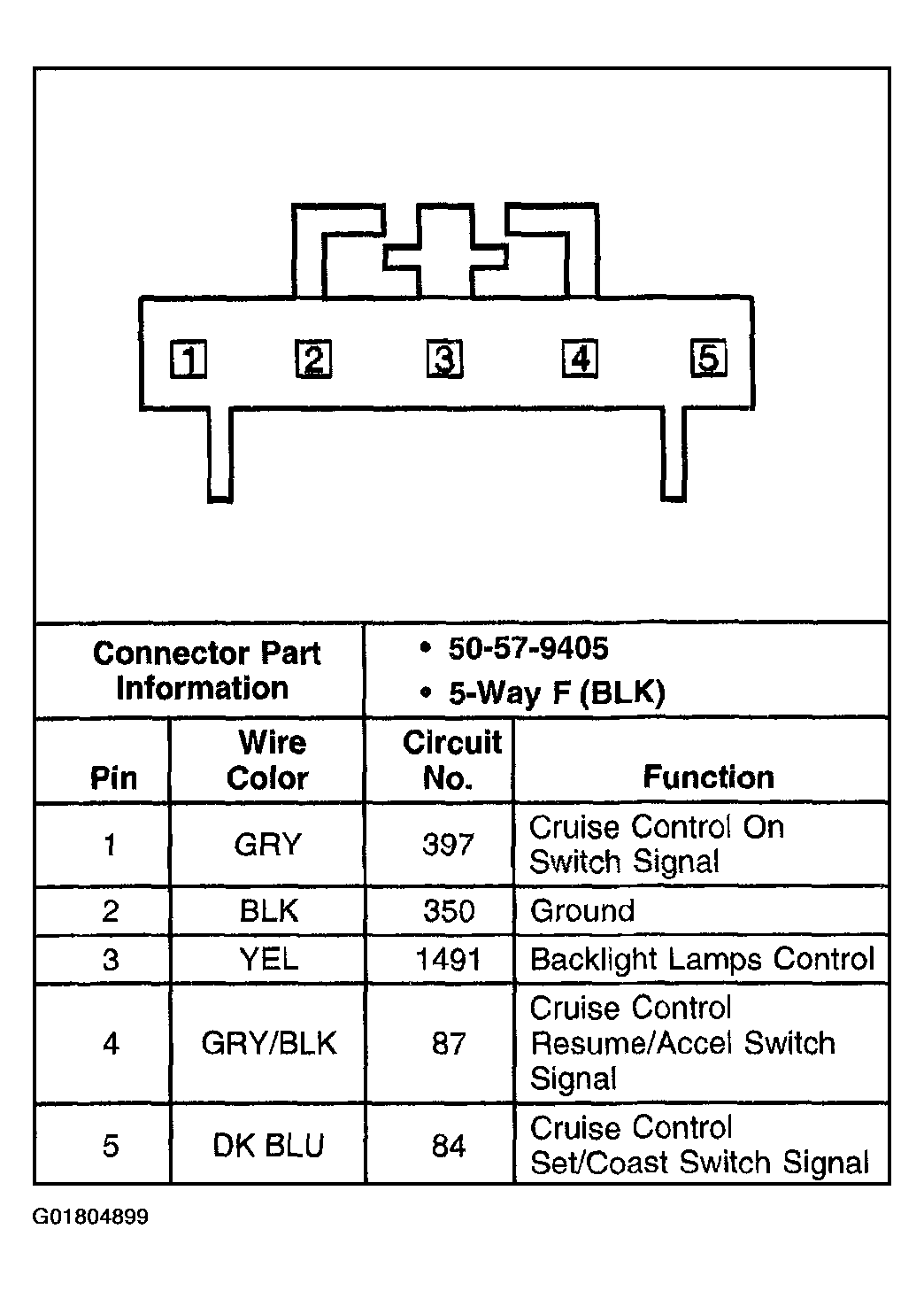

Fig 33: Steering Wheel Controls - Left C1
Courtesy of GENERAL MOTORS CORP.
Fig 34: Steering Wheel Controls - Left C2
Courtesy of GENERAL MOTORS CORP.
Fig 35: Steering Wheel Controls - Right C1
Courtesy of GENERAL MOTORS CORP.
Fig 36: Steering Wheel Controls - Right C2
Courtesy of GENERAL MOTORS CORP.
