Cooling System Connector End Views

WARNING: This page is about a different car, the 2002 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Coolant Level Switch Connector End View
G01619069Courtesy of GENERAL MOTORS CORP.

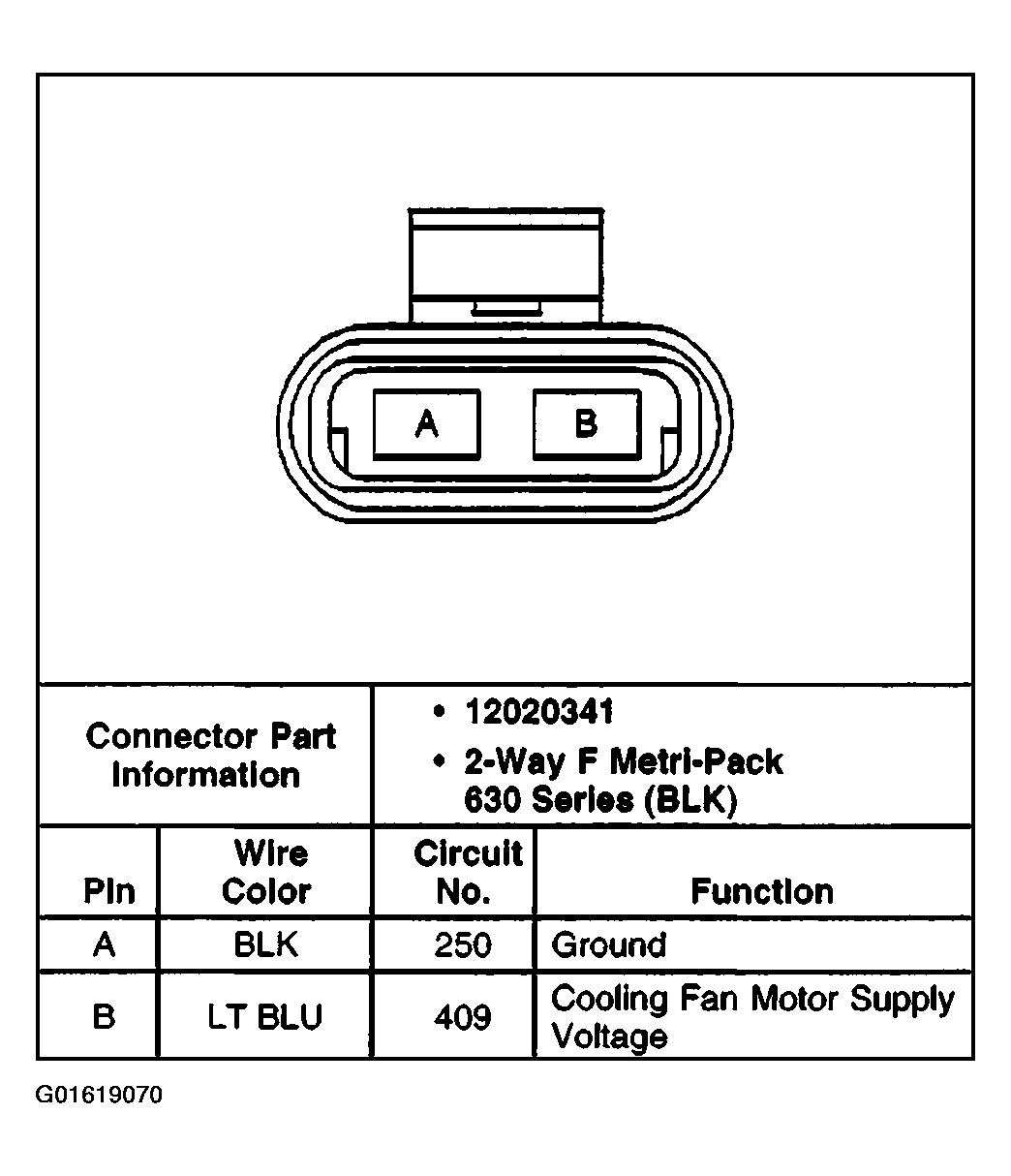

Fig 2: Cooling Fan Connector End View - Left
G01619070Courtesy of GENERAL MOTORS CORP.

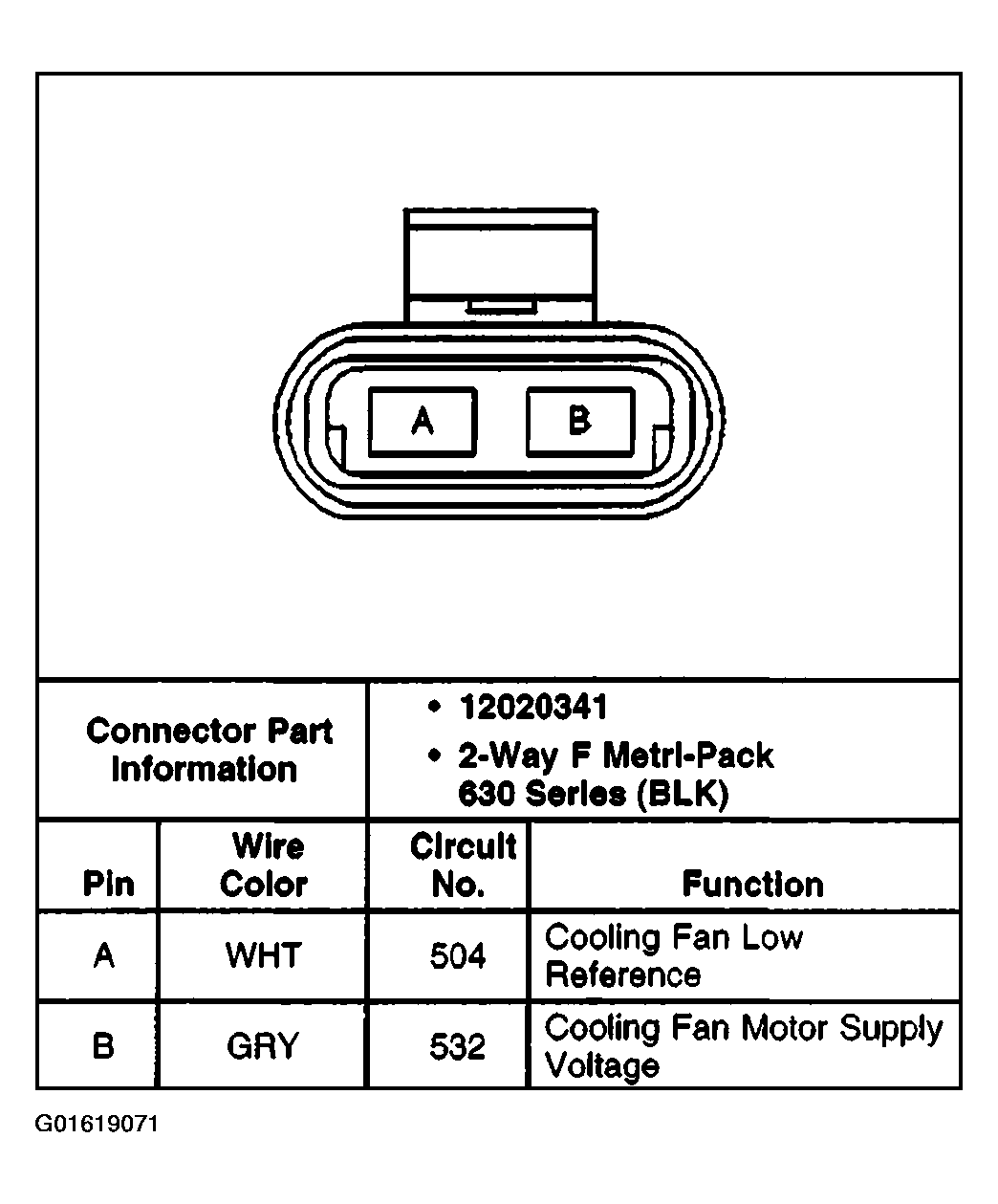

Fig 3: Cooling Fan Connector End View - Right
G01619071Courtesy of GENERAL MOTORS CORP.
