Section 47 (Data Link Communications System)
>>
Diagnostic Information And Procedures
>>
DTC U2103: Fewer Controllers On Bus Than Programmed
>>
Notes
DTC U2103: Fewer Controllers On Bus Than Programmed: Notes
WARNING:
This page is about a different car, the 2000 Cadillac Catera. However, it is still accessible from the selected car via links, so may be relevant.

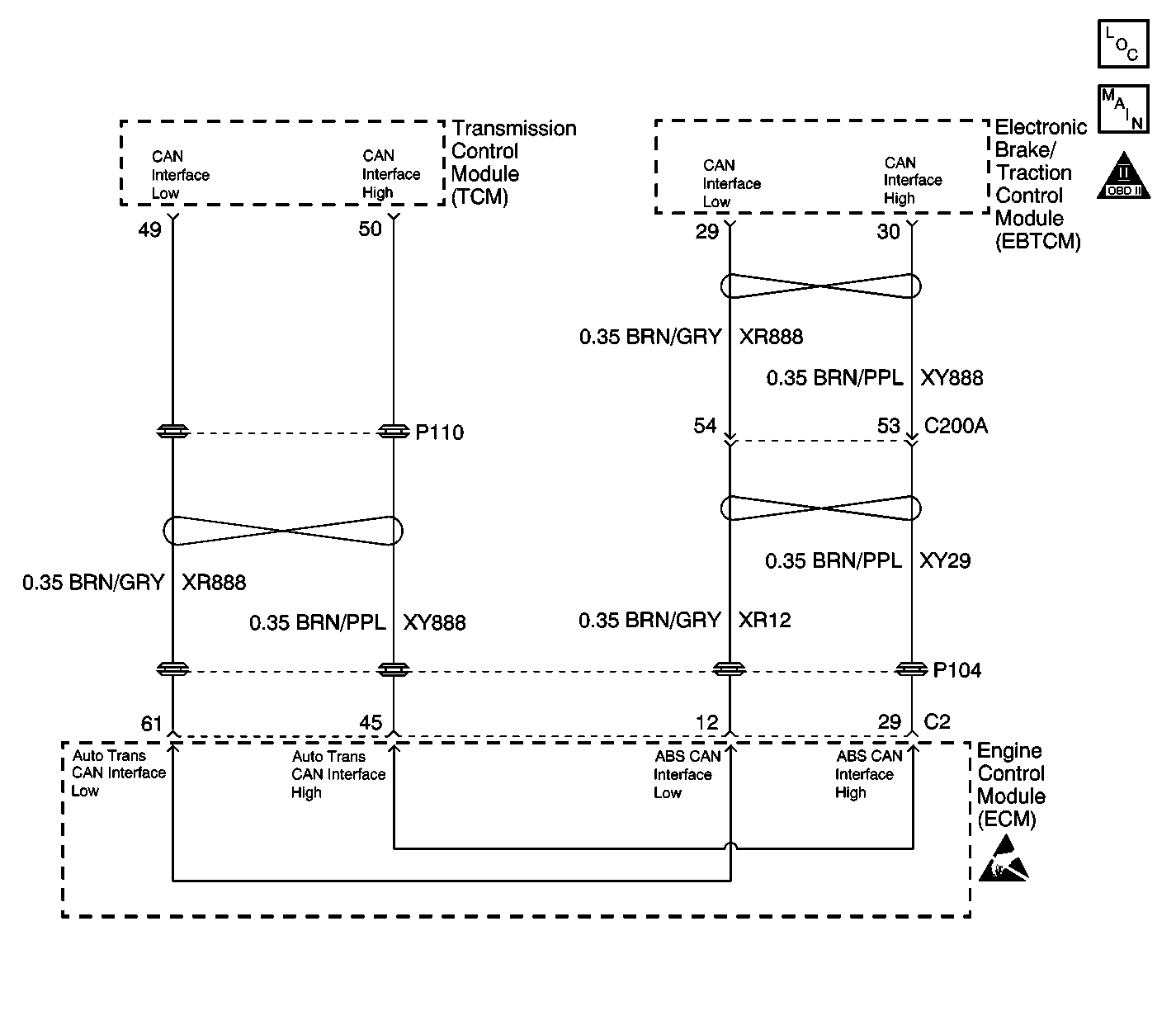

Fig 1: CAN Bus Communication Schematic
