UNDERHOOD Fuse Block

Underhood fuse block is located on the passenger's side of the engine compartment. See Fig 1 .

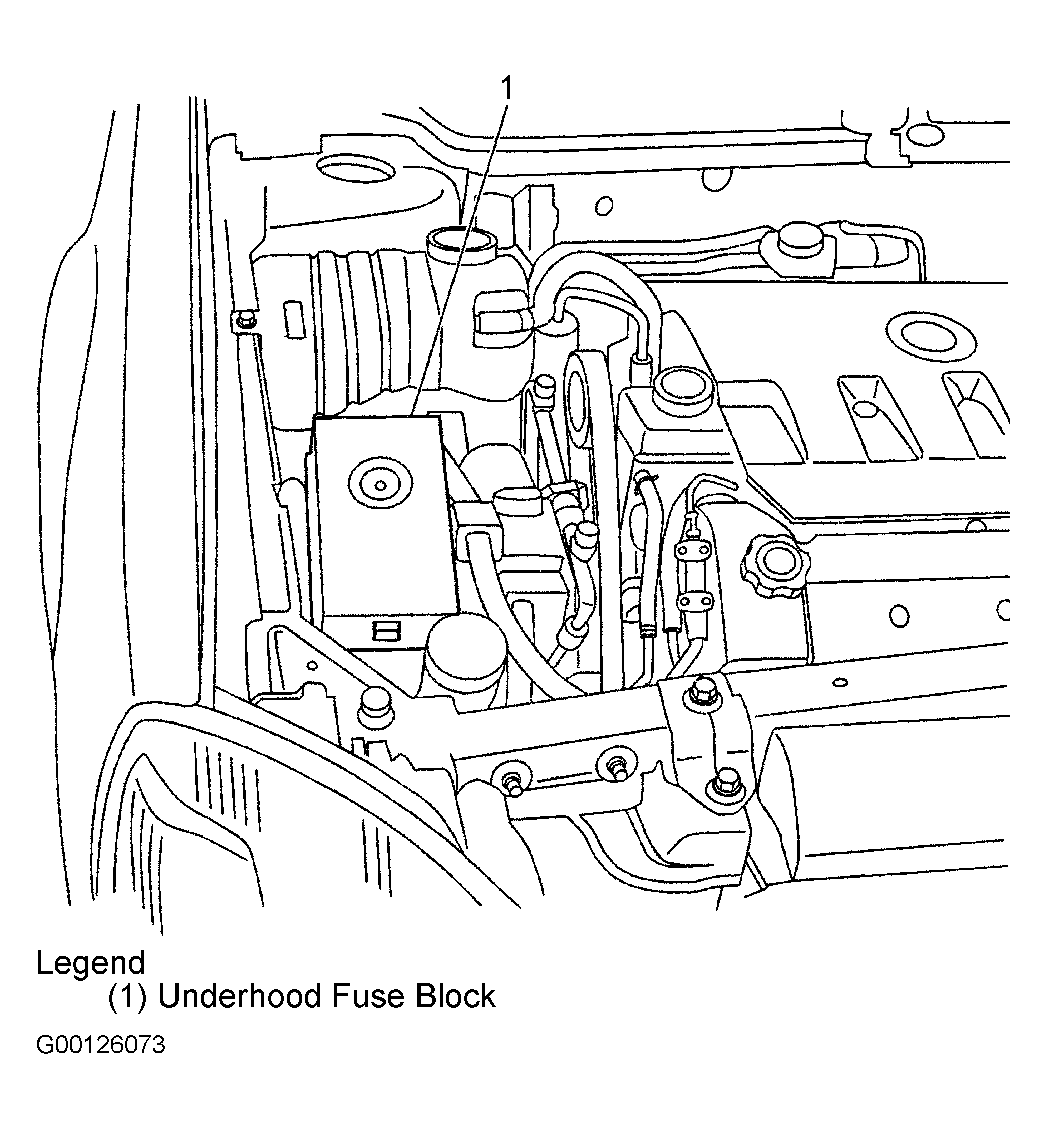

Fig 1: Locating Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.

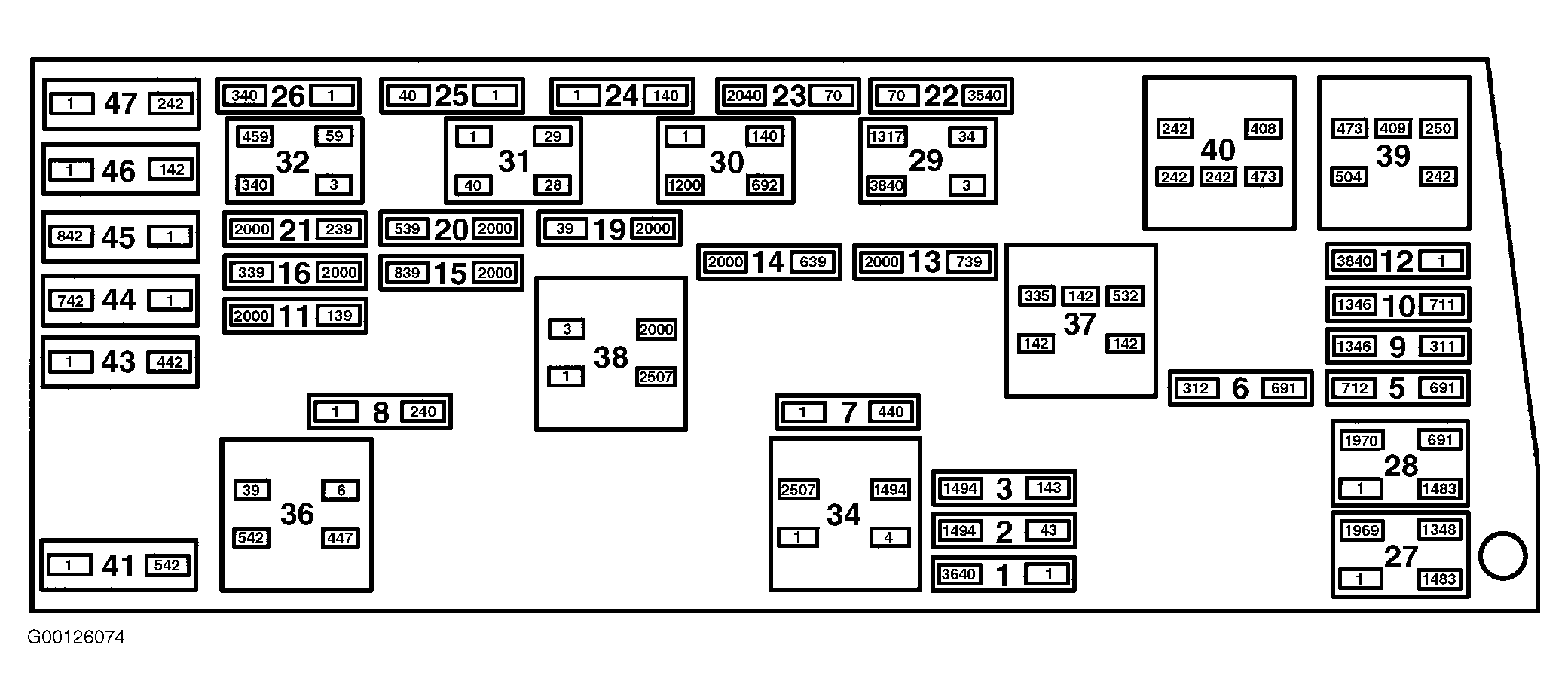

Fig 2: Identifying Underhood Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

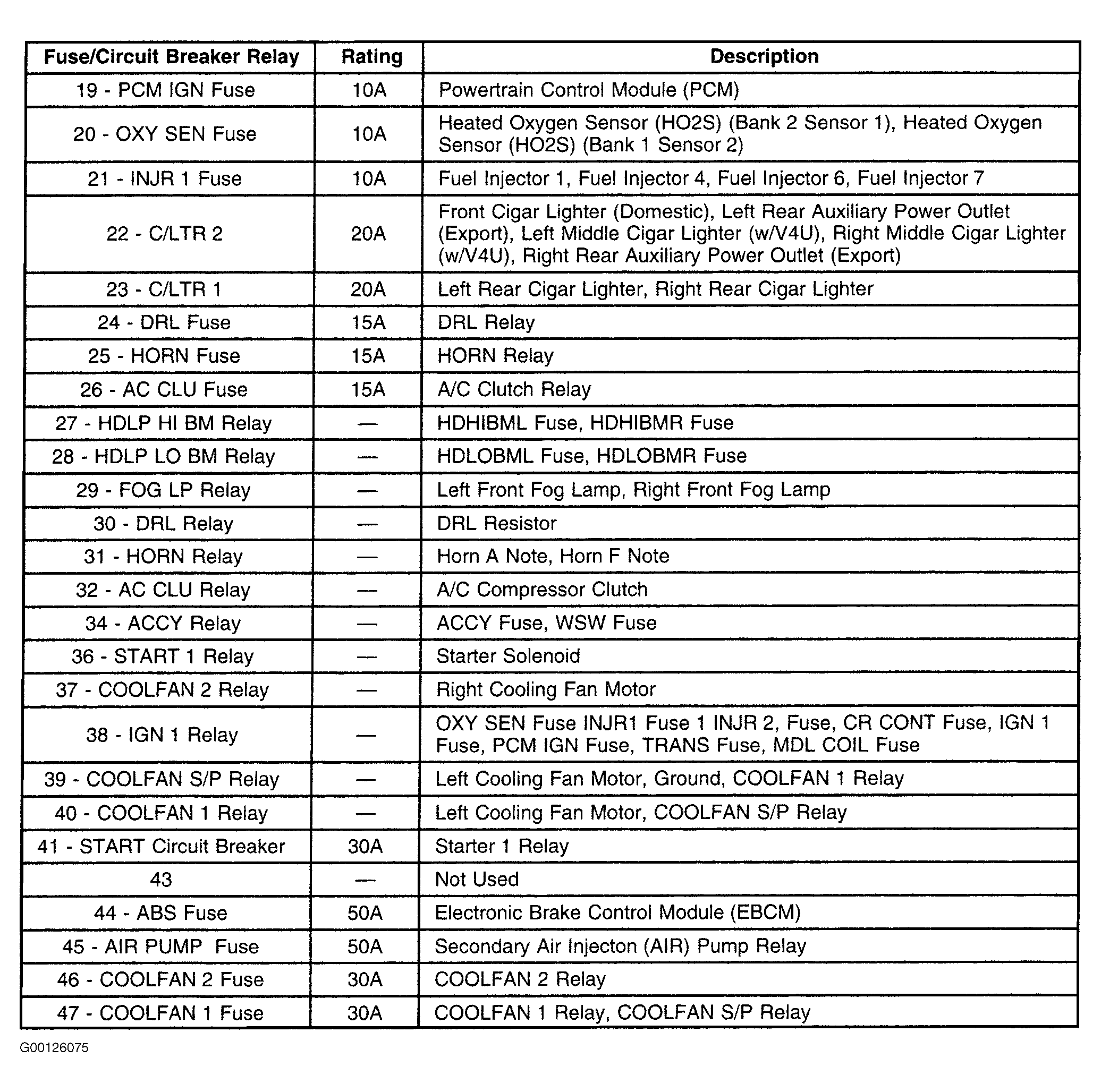

Fig 3: Underhood Fuse Block Legend (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

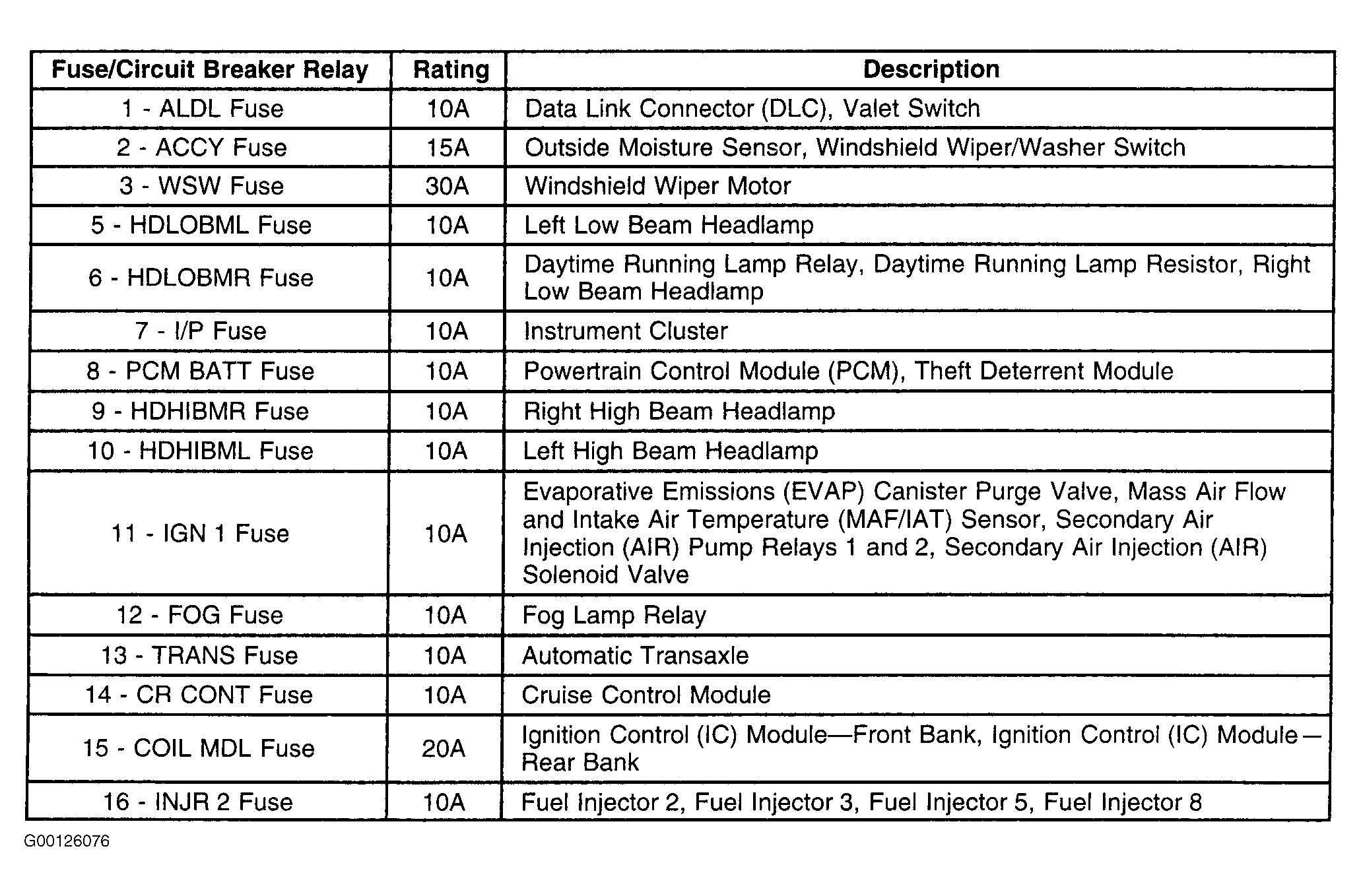

Fig 4: Underhood Fuse Block Legend (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
