Radio Amplifier - C2

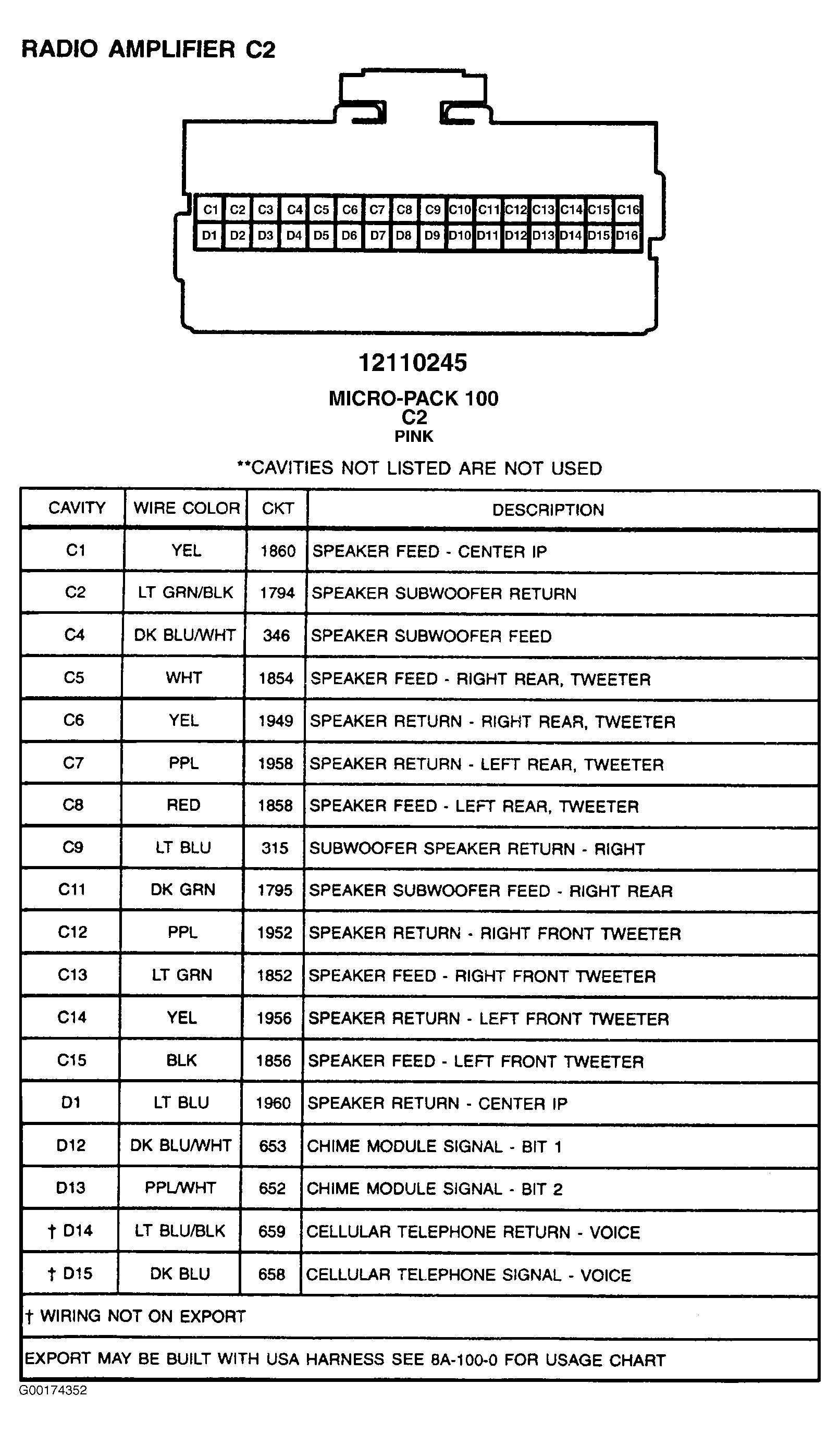

Fig 1: Radio Amplifier (C2) - 32-Pin Connector (Pink)

G00174352

Courtesy of GENERAL MOTORS CORP.
