Instrument Panel Cluster (IPC) - C1
Instrument Panel Cluster (IPC) - C1

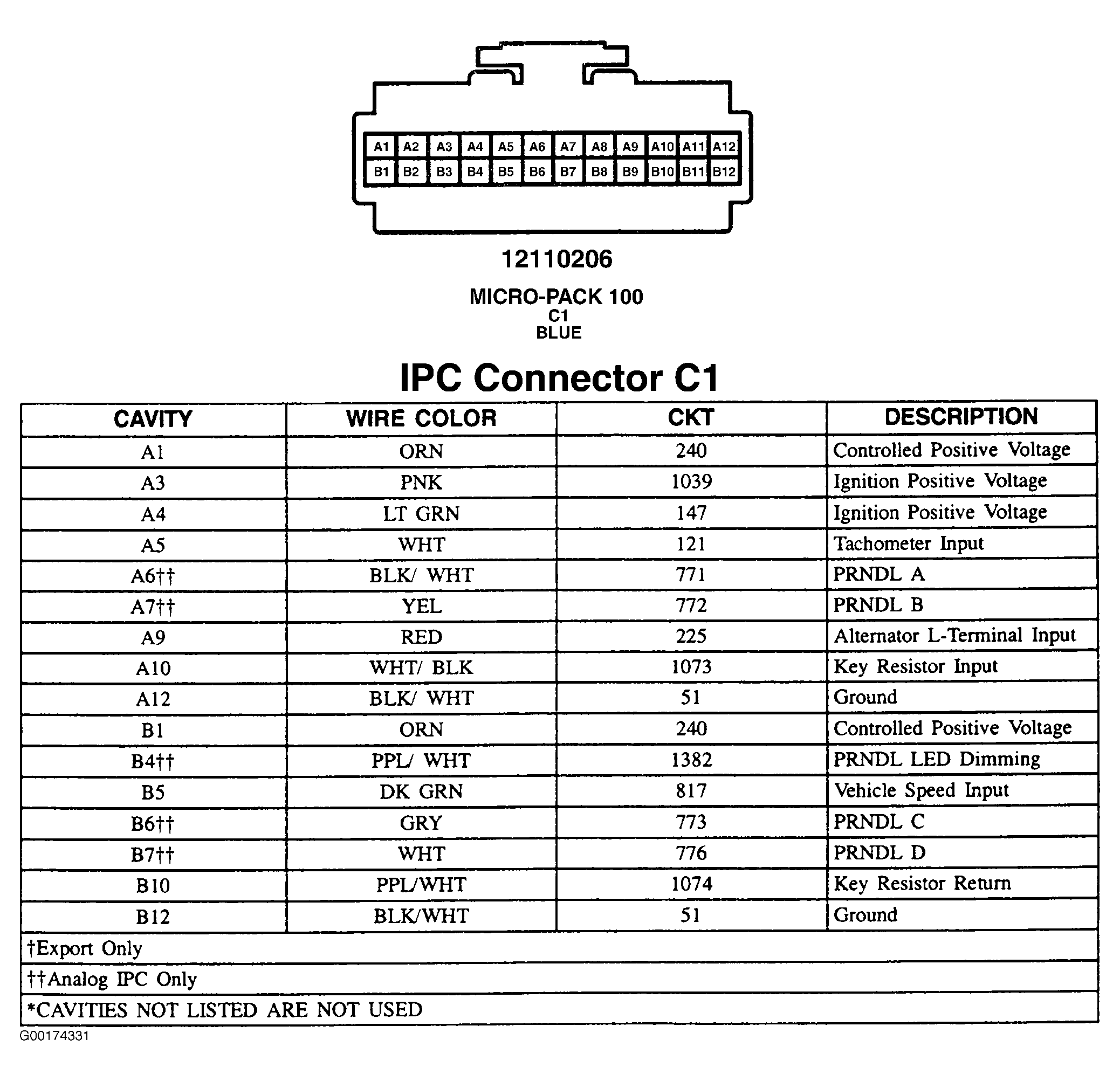

Fig 1: Instrument Panel Cluster (C1) - 24-Pin Connector (Blue)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
