Instrument Panel Cluster (IPC) - C3
Instrument Panel Cluster (IPC) - C3

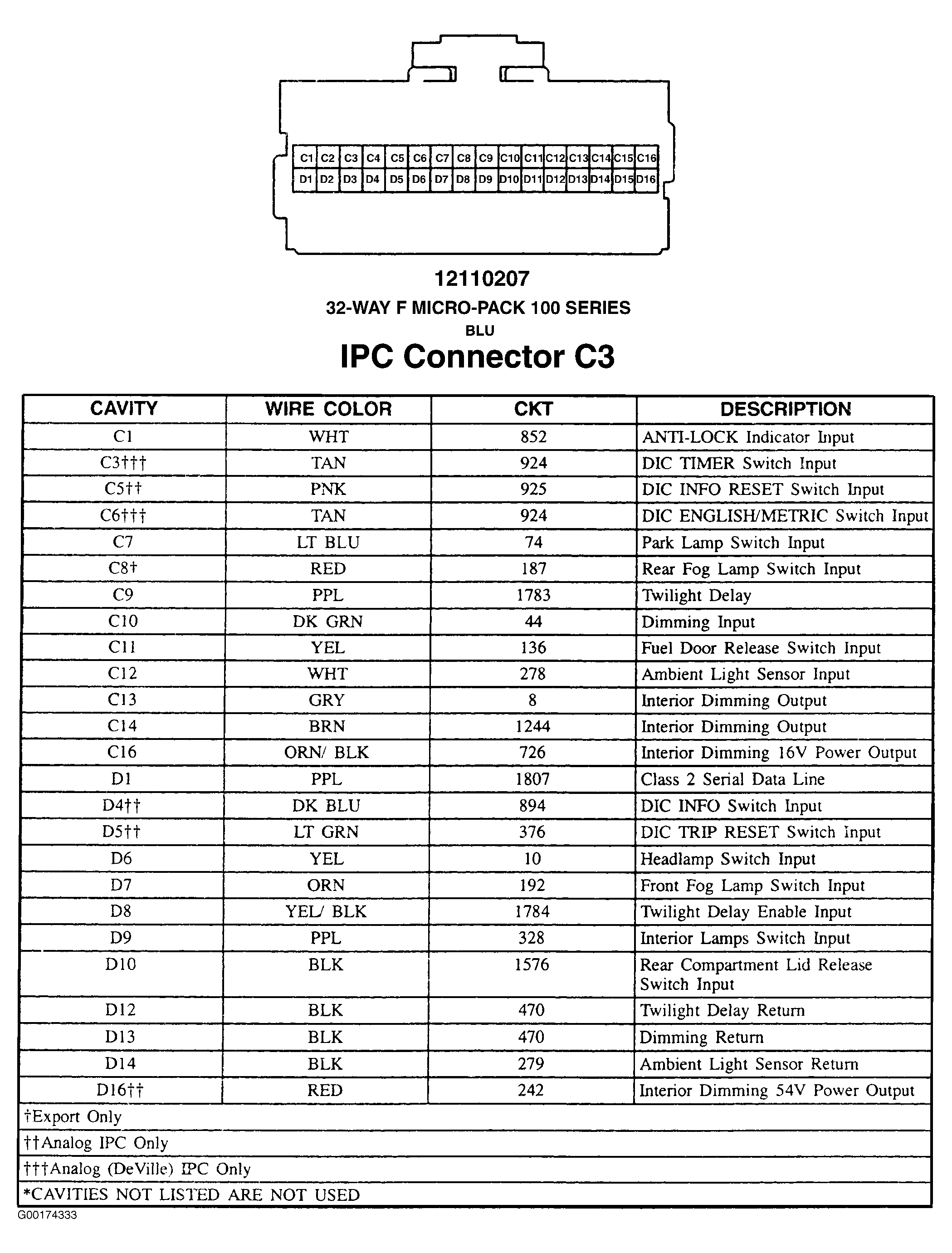

Fig 1: Instrument Panel Cluster (C3) - 32-Pin Connector (Blue)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
