Radio Amplifier - C3

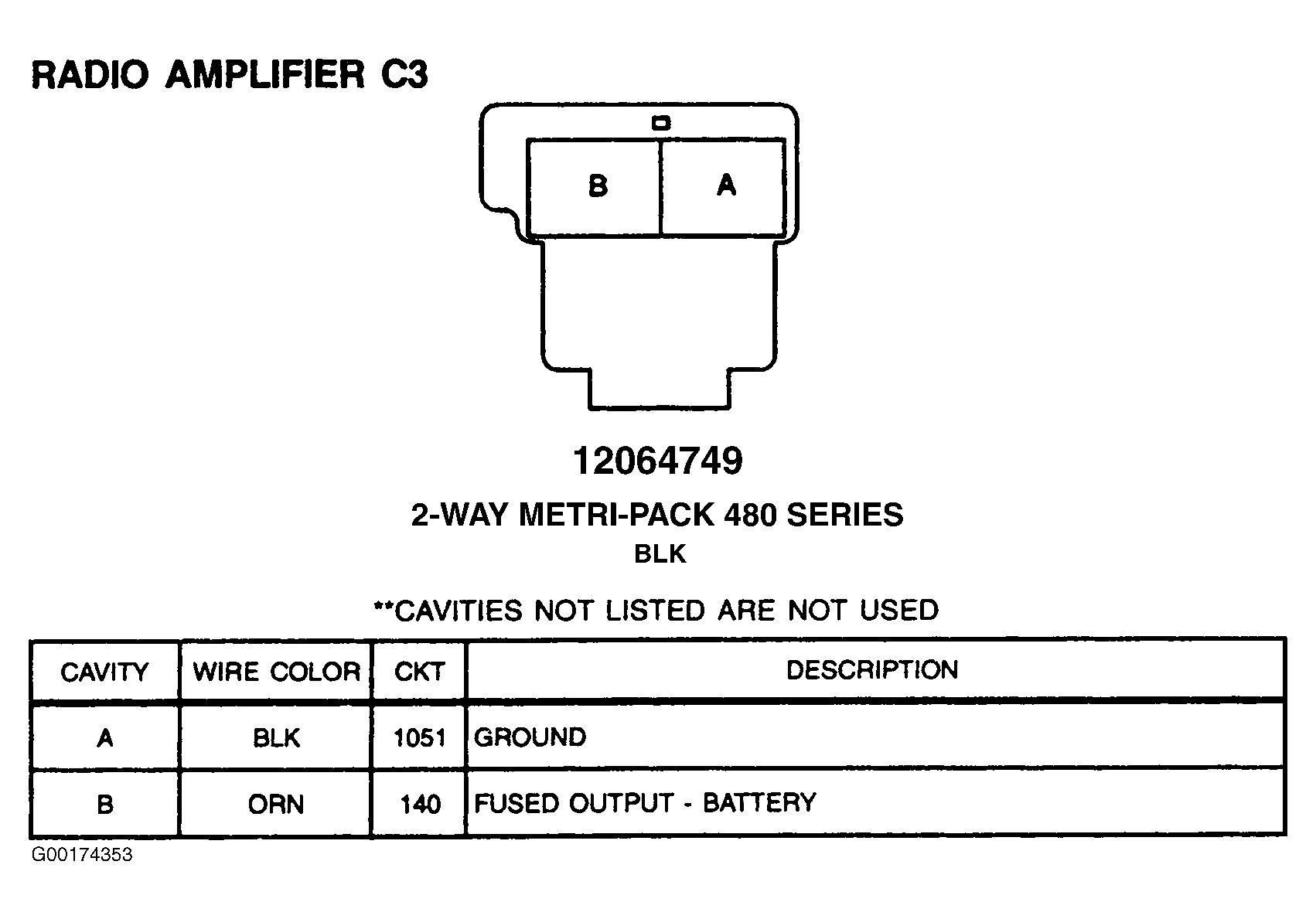

Fig 1: Radio Amplifier (C3) - 2-Pin Connector (Black)

G00174353

Courtesy of GENERAL MOTORS CORP.
