Cadillac
>>
1997
>>
Catera
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Power Seats
>>
Passenger Seat Heater Switch
Passenger Seat Heater Switch

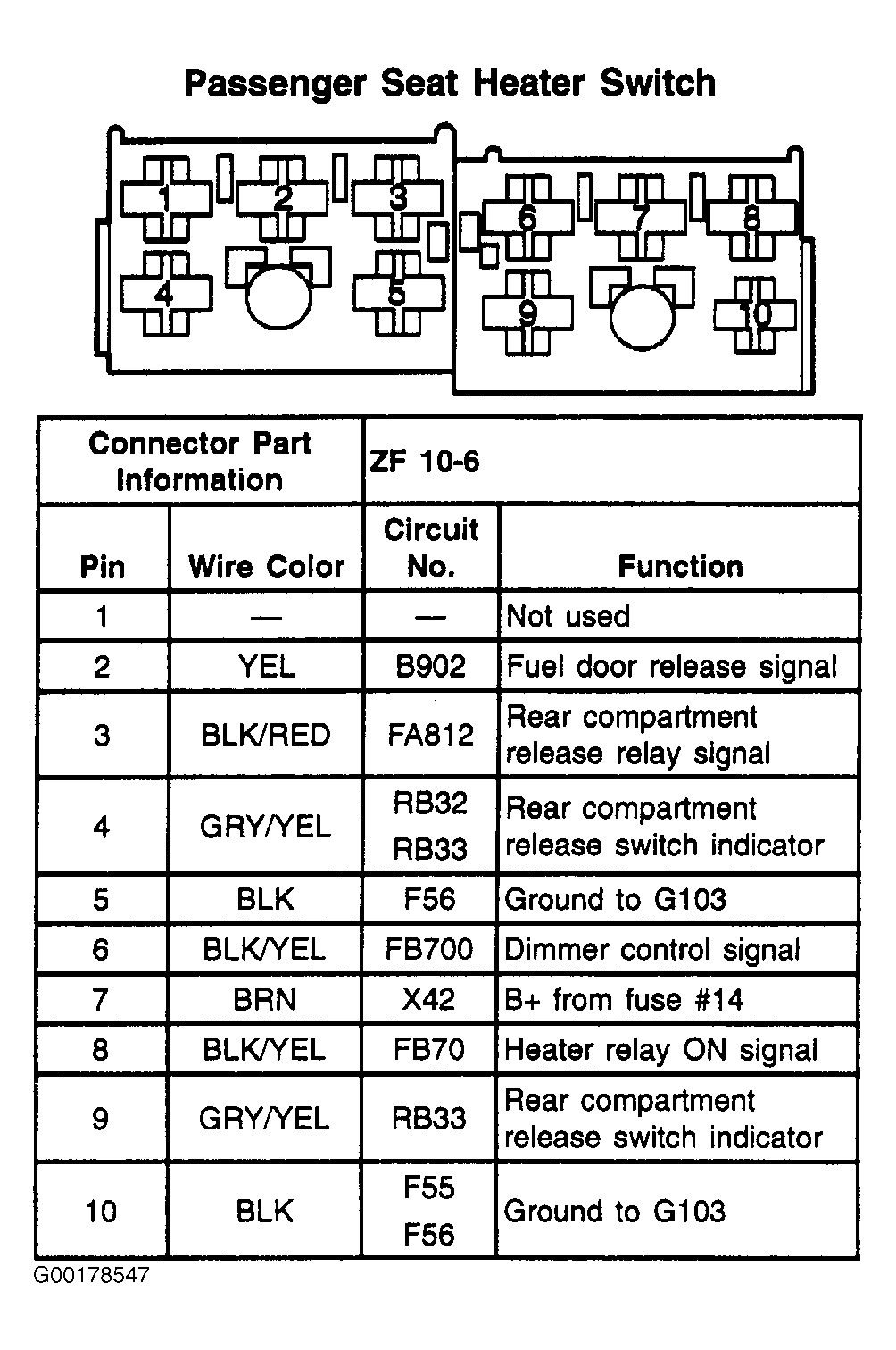

Fig 1: Passenger Seat Heater Switch - 10-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
