Passenger Seat Connector C316
Passenger Seat Connector C316

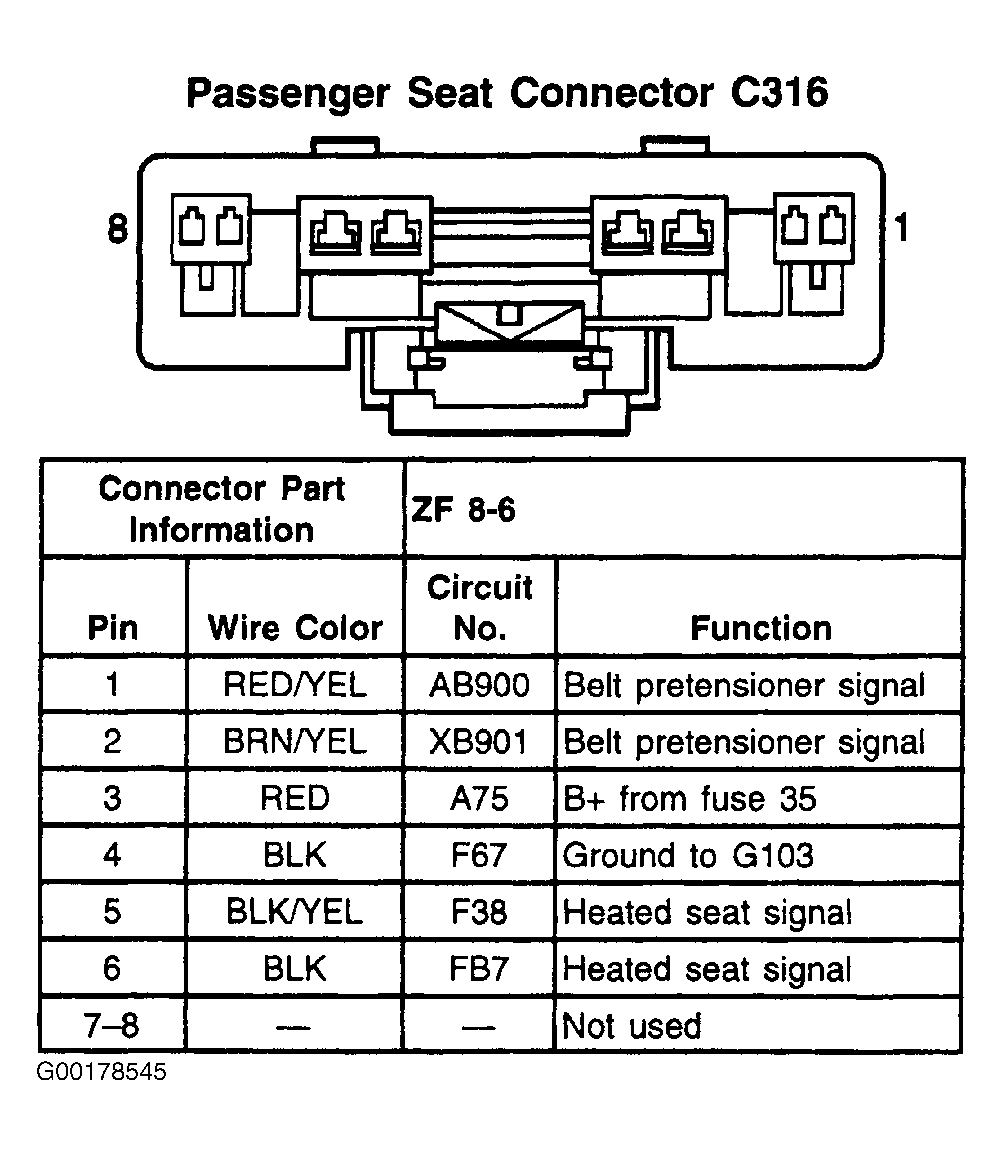

Fig 1: Passenger Seat Connector C316 - 8-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
