Connector Terminal Identification
>>
Power Seats
>>
Driver Seat Heater Relay - K55
Driver Seat Heater Relay - K55

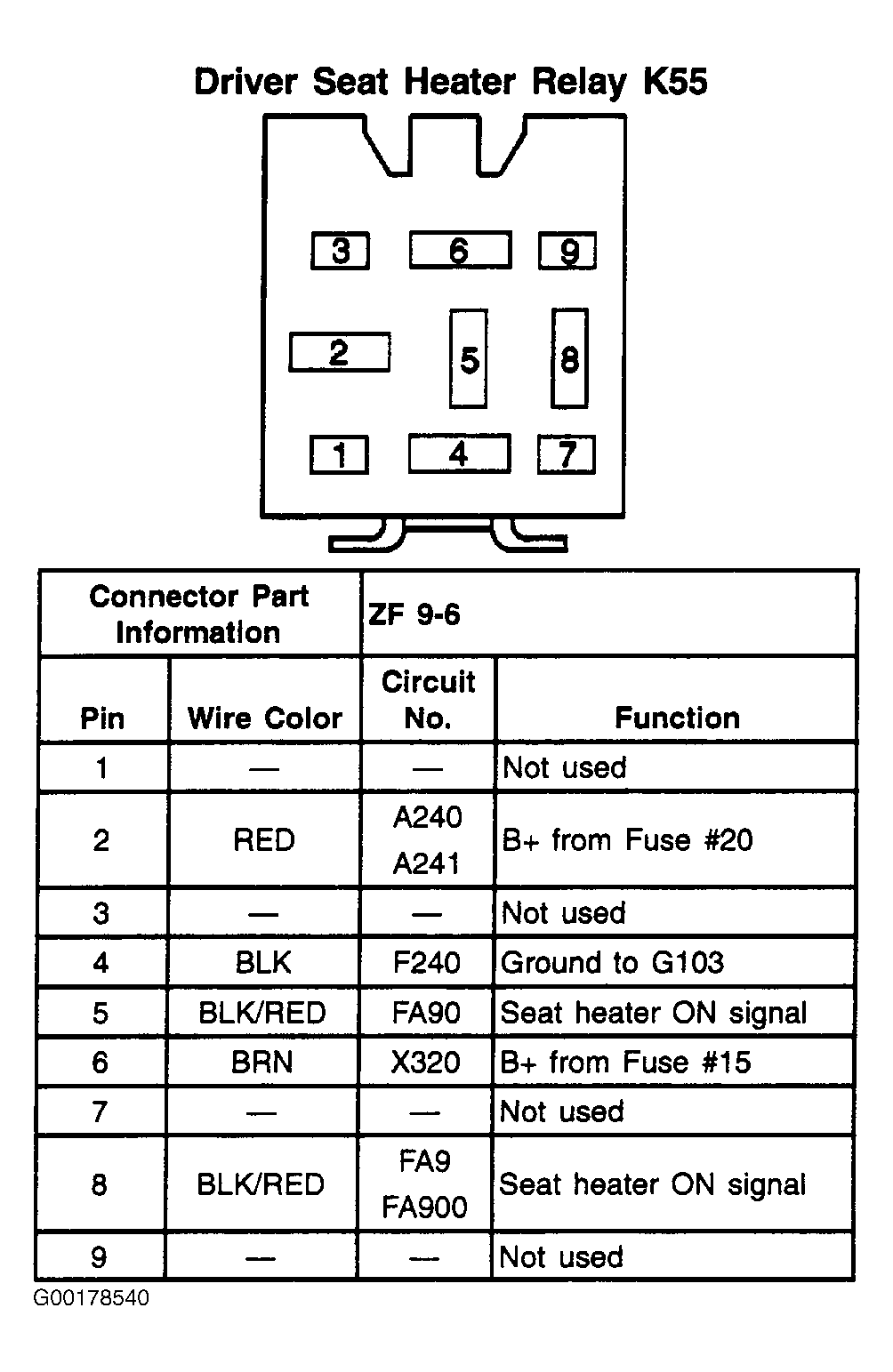

Fig 1: Driver Seat Heater Relay (K55) - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
