Connector Terminal Identification
>>
Power Seats
>>
Driver Seat - C315
Driver Seat - C315

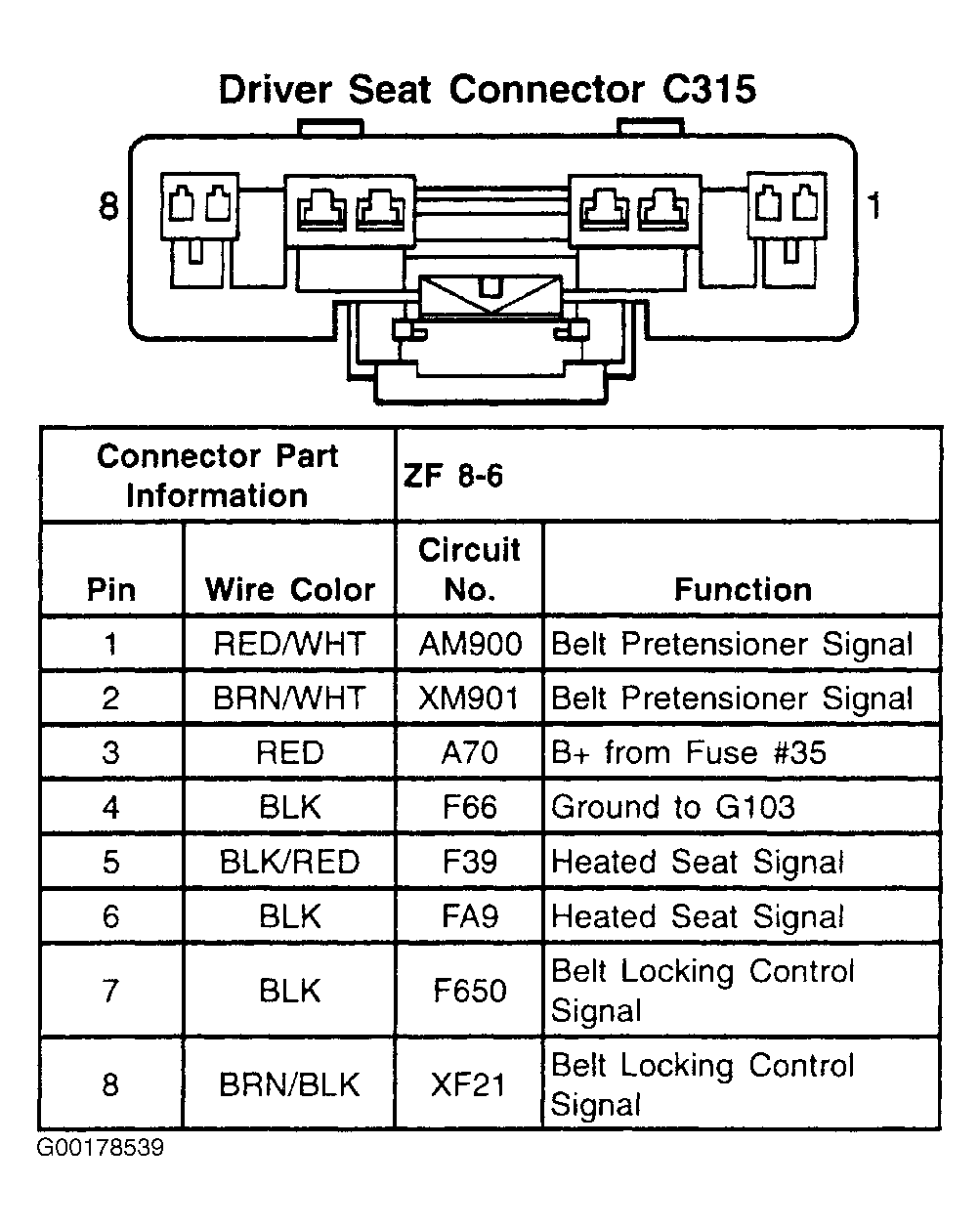

Fig 1: Driver Seat C315 - 8-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
