Evaporative (EVAP) Tank Solenoid Valve

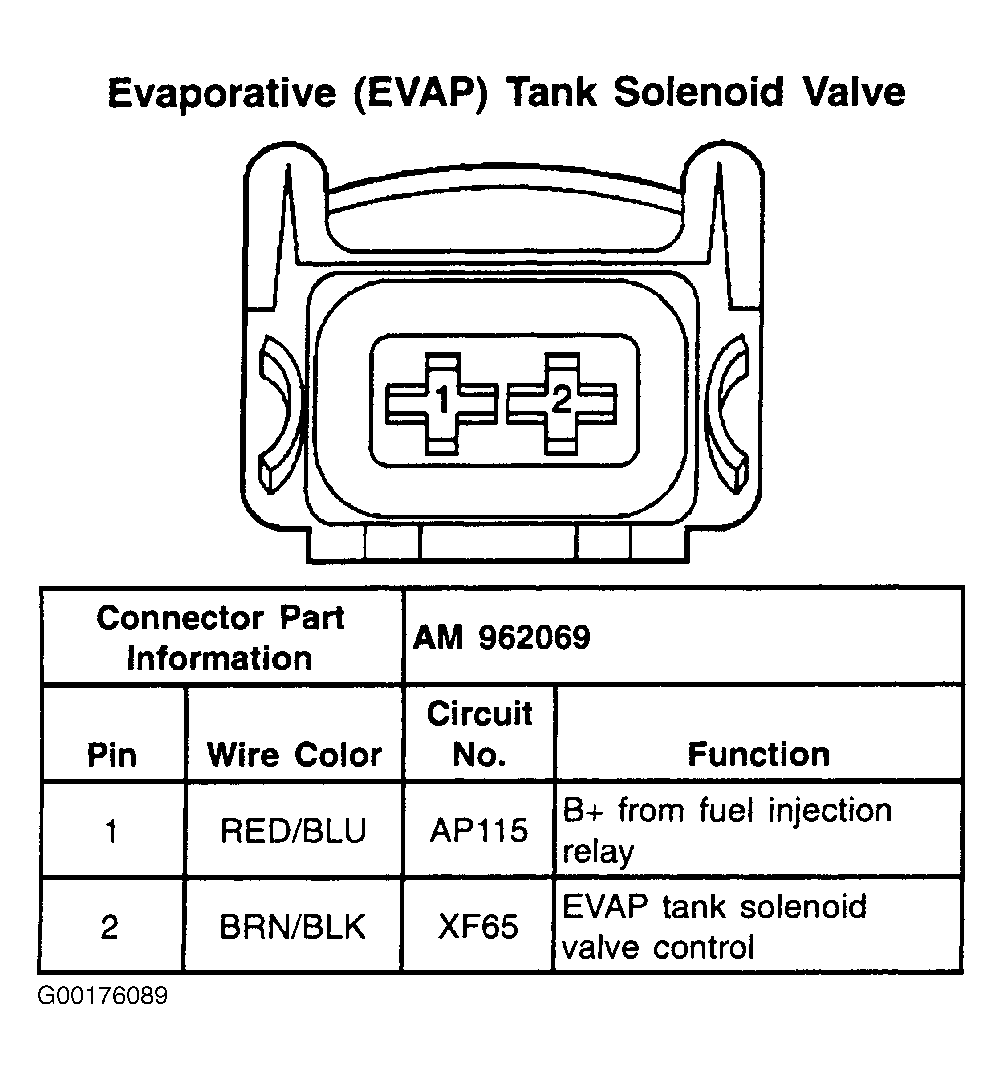

Fig 1: Evaporative (EVAP) Tank Solenoid Valve - 2-Pin Connector

G00176089

Courtesy of GENERAL MOTORS CORP.
