Flow Chart 5, Recliner Inoperative
Flow Chart 5, Recliner Inoperative

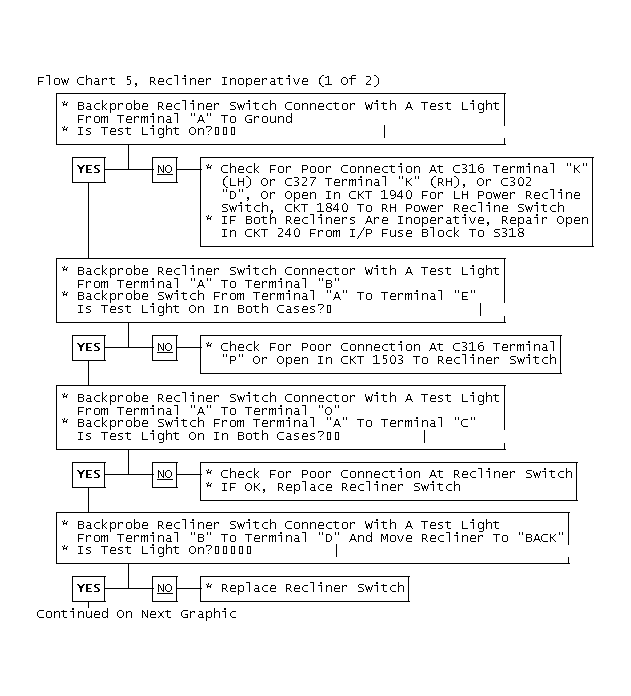

Fig 1: Flow Chart 5, Recliner Inoperative (1 Of 2)

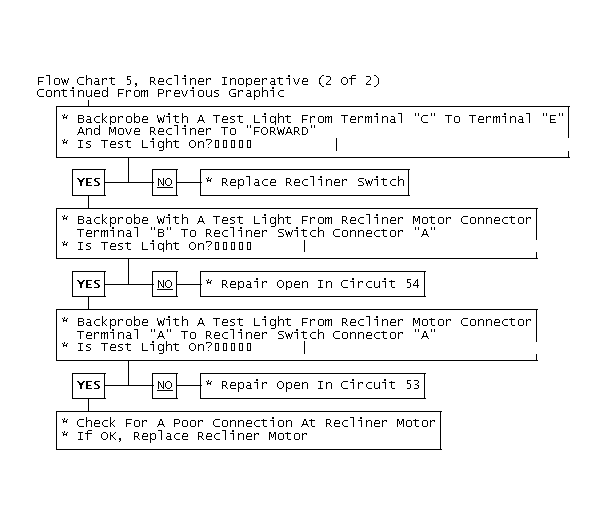

Fig 2: Flow Chart 5, Recliner Inoperative (2 Of 2)
