Home >> Cadillac >> 1994 >> Fleetwood Base >> Repair and Diagnosis >> Body & Frame >> Seats - Power >> Testing >> Flow Chart 1, All Positions Do Not Operate

Flow Chart 1, All Positions Do Not Operate

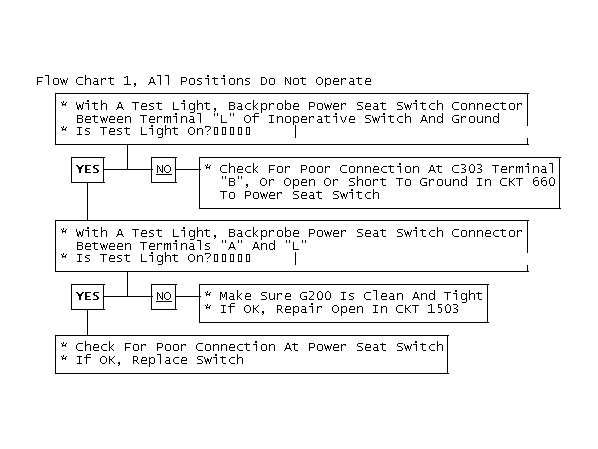

Fig 1: Flow Chart 1, All Positions Do Not Operate

GB0022329
