DTC P081: Cam To 4X Reference Correlation Problem: Action

None.

NOTE: Numbers in list refer to circled numbers in diagnostic flow chart, see Fig 1. For circuit identification see Fig 2.

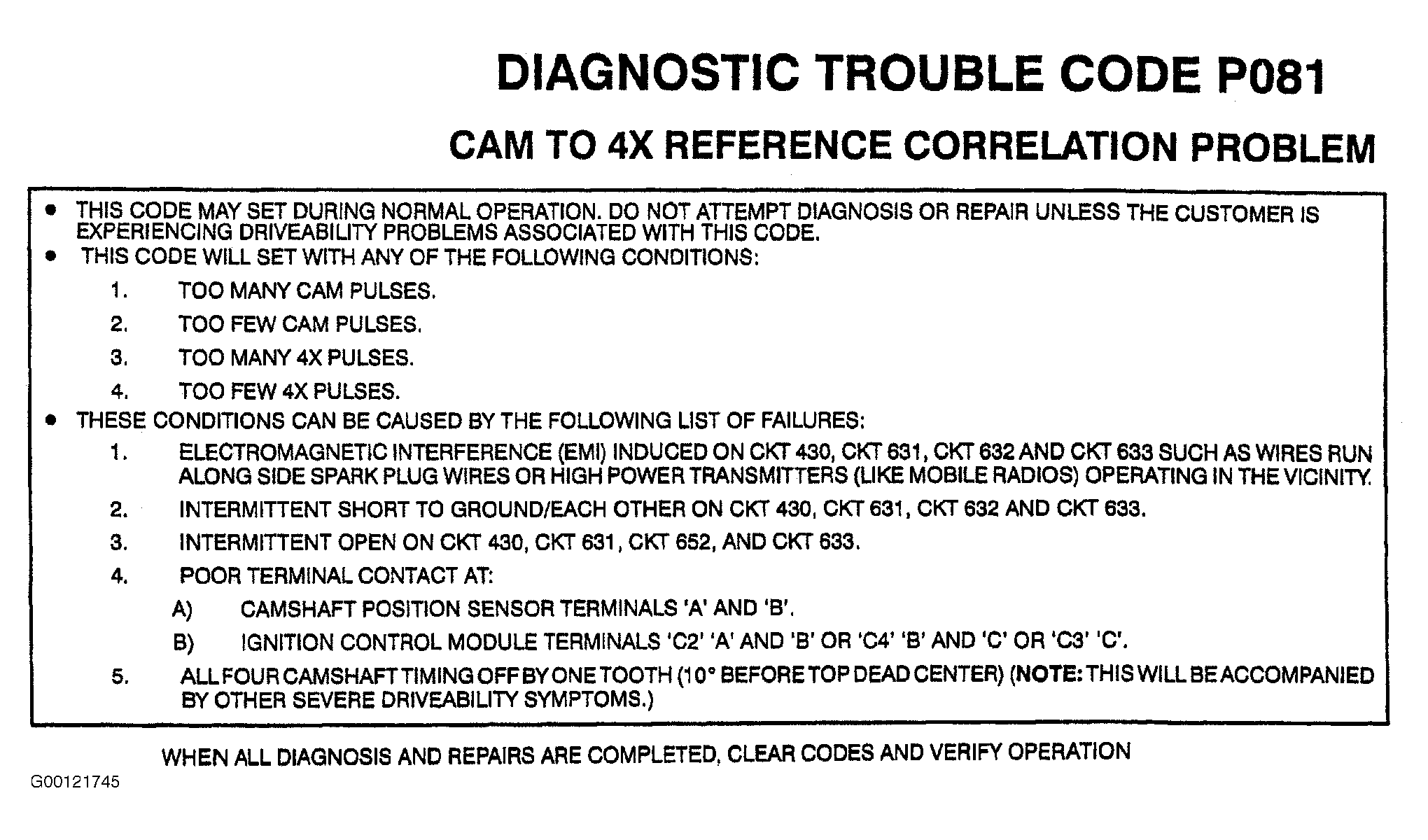

Fig 1: DTC P081: CAM To 4X Reference Correlation Problem Flow Chart

Courtesy of GENERAL MOTORS CORP.

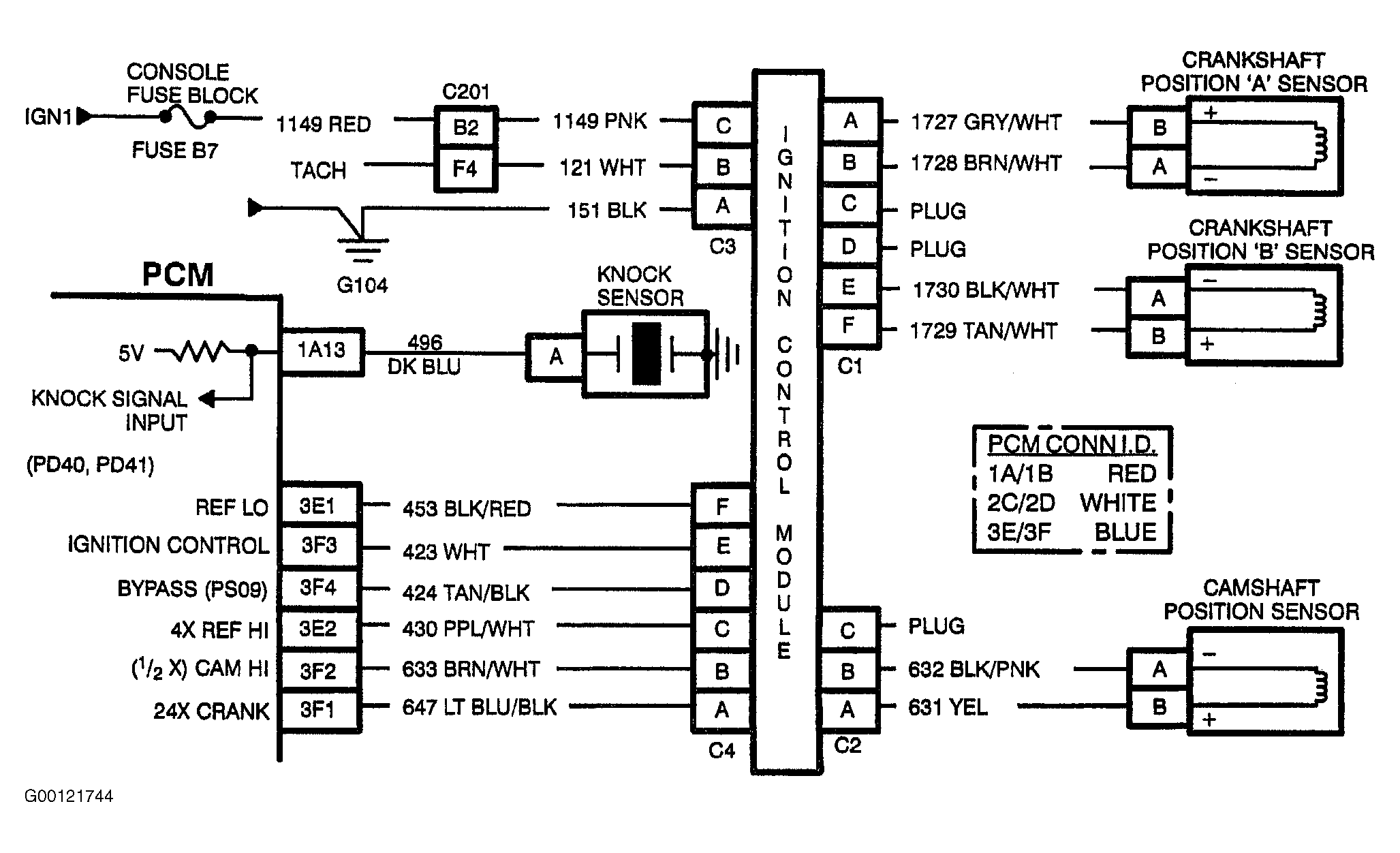

Fig 2: DTC P081: CAM To 4X Reference Correlation Problem Flow Chart Circuit

Courtesy of GENERAL MOTORS CORP.
