Generator Test & Reassembly

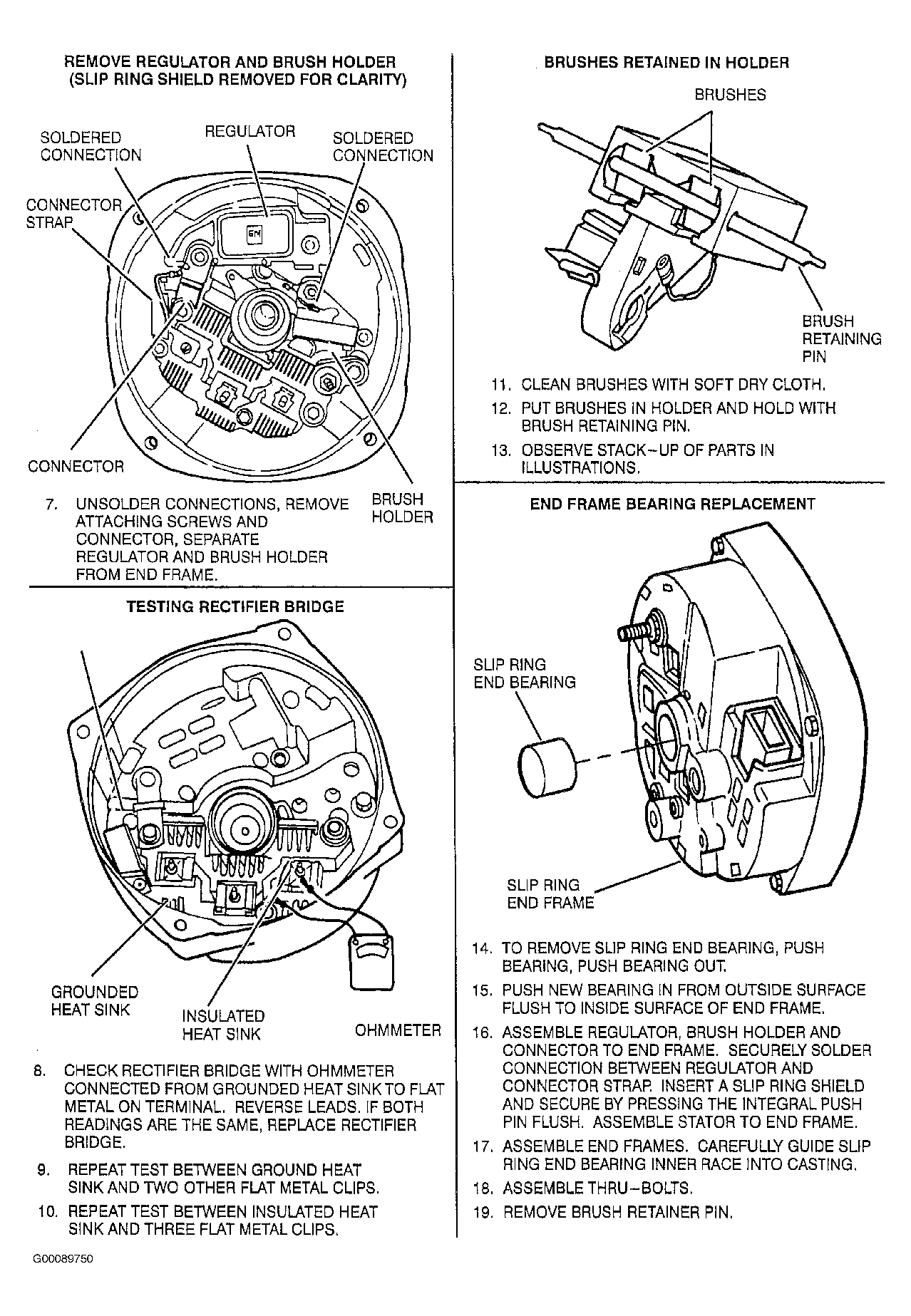

For generator component tests, refer to illustrations. See Fig 1 -Fig 3 .

Fig 1: Testing Generator Components (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Testing Generator Components (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Testing Generator Components (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
