Electronic Brake & Traction Control Module (EBTCM): Removal

1. Disconnect negative battery cable.
2. Remove left sound insulator. See Fig 1.
3. Remove instrument panel extension.
4. Remove left shroud panel.
5. Remove hood release mechanism.
6. Remove knee bolster.
7. Remove instrument panel driver knee bolster inner bracket.
8. Remove EBTCM retaining screws.
9. Remove EBTCM.
10. Disconnect EBTCM wiring harness connector.

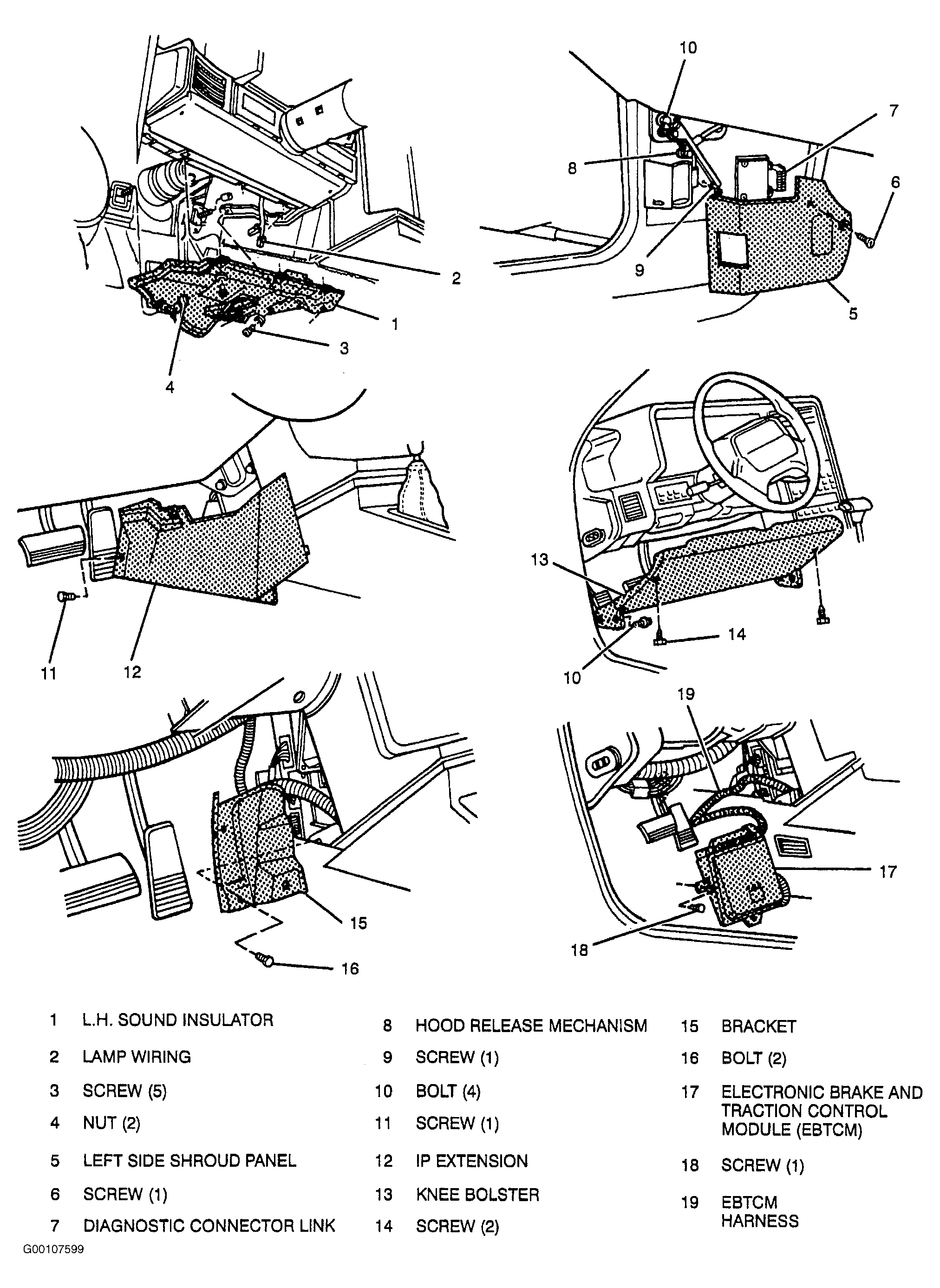

Fig 1: Removing Electronic Brake & Traction Control Module

Courtesy of GENERAL MOTORS CORP.
