Test H: Heated Seat Relay Module PINOUT

To perform Test H, see Fig 1 .

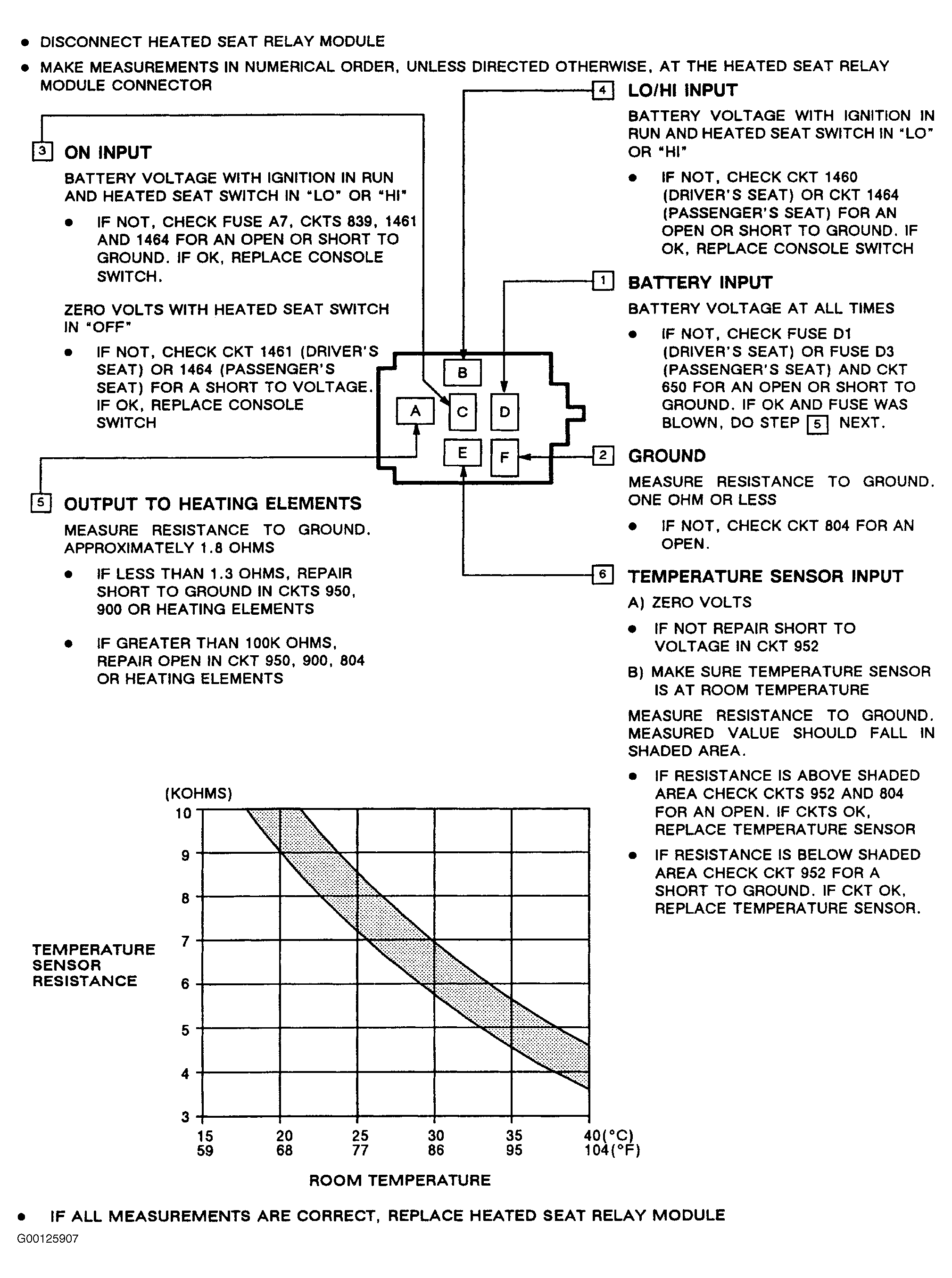

Fig 1: Test H: Heated Seat Relay Module Pinout
G00125907Courtesy of GENERAL MOTORS CORP.
