COMPONENT LOCATIONS
| Component | Location |
|---|---|

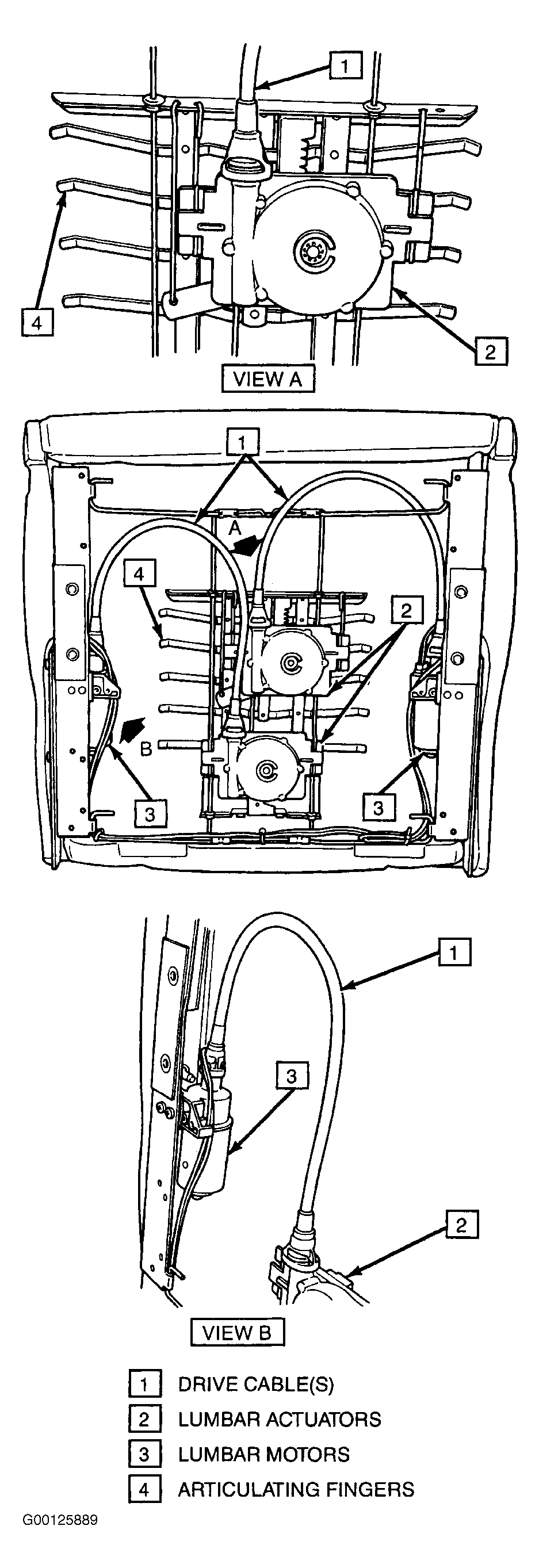

| Fore/Aft Lumbar Motors | In Respective Front Seatbacks See Figure . |
| Fore/Aft Lumbar Relays | Under Respective Front Seats |

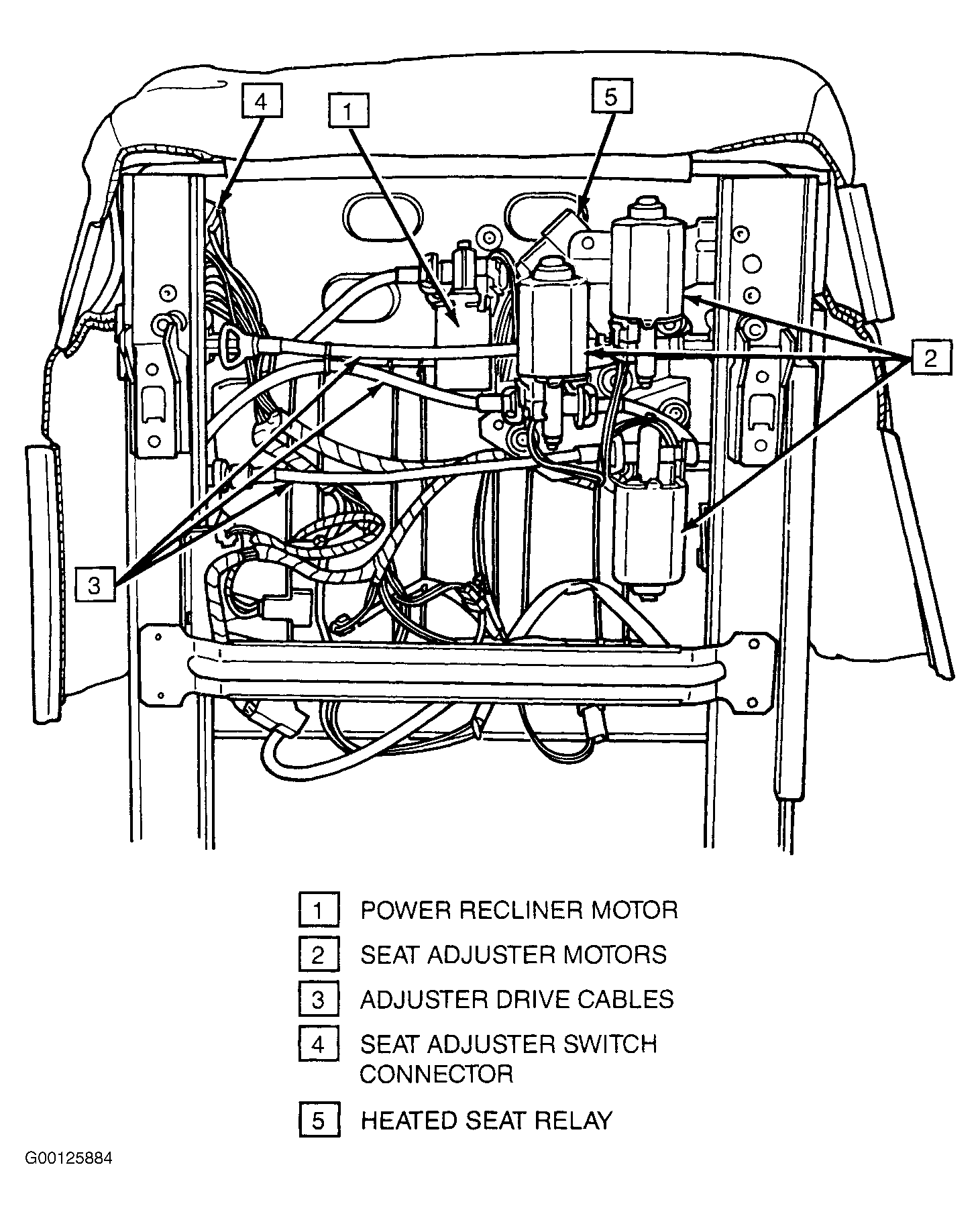

| Front Height Motors | Under Respective Front Seats. See Fig 1 . |
| Forward/Back Motors | Under Respective Front Seats. See Fig 1 . |
| Heated Seat Relay Modules (Relays) | Under Respective Front Seats. See Fig 1 . |

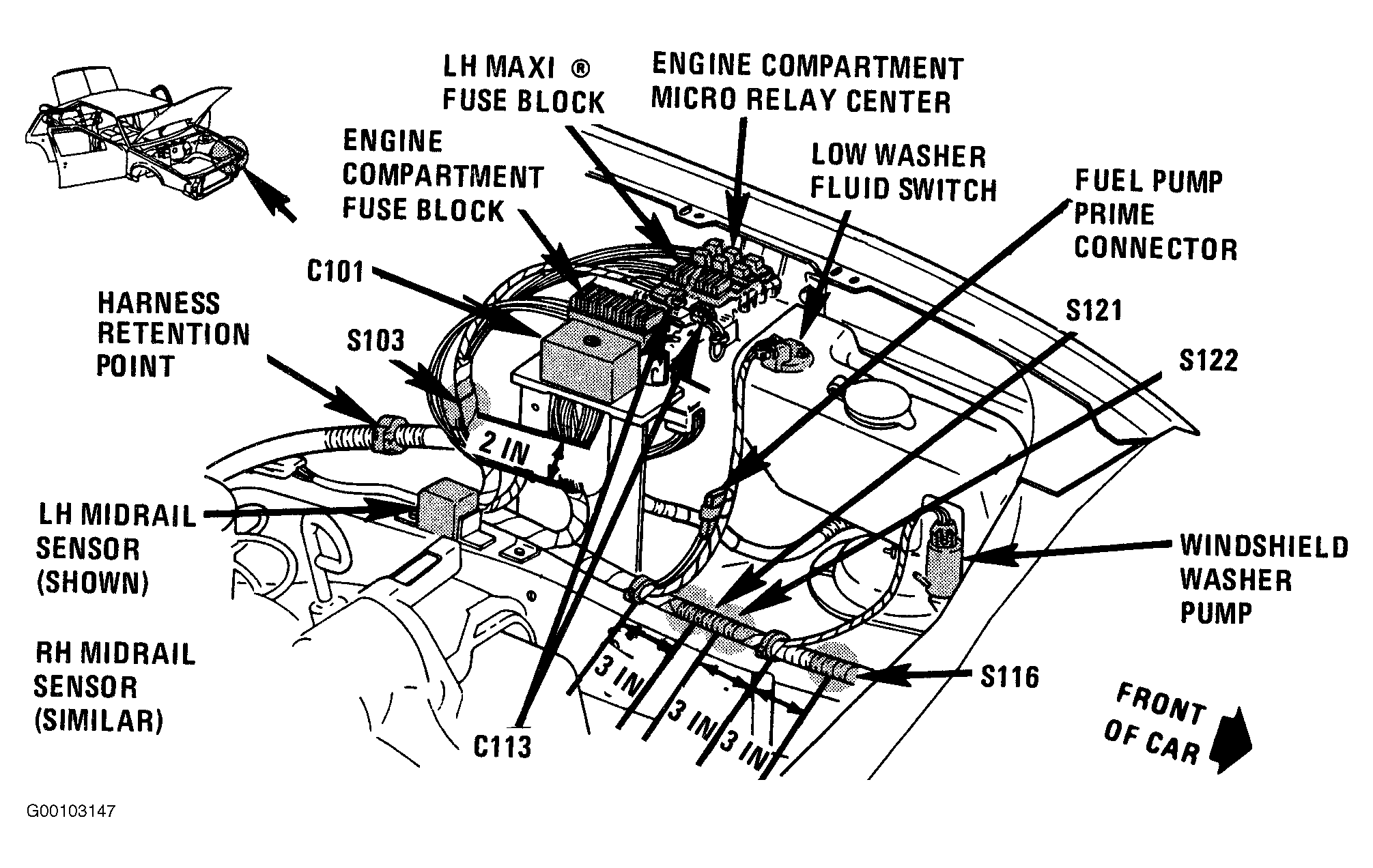

| Left Maxi(R) Fuse Block | In Left Side Of Engine Compartment, On Wheelhouse. See Fig 2 . |
| Rear Height Motors | Under Respective Front Seats. See Fig 1 . |
| Recliner Motors | Under Respective Front Seats |

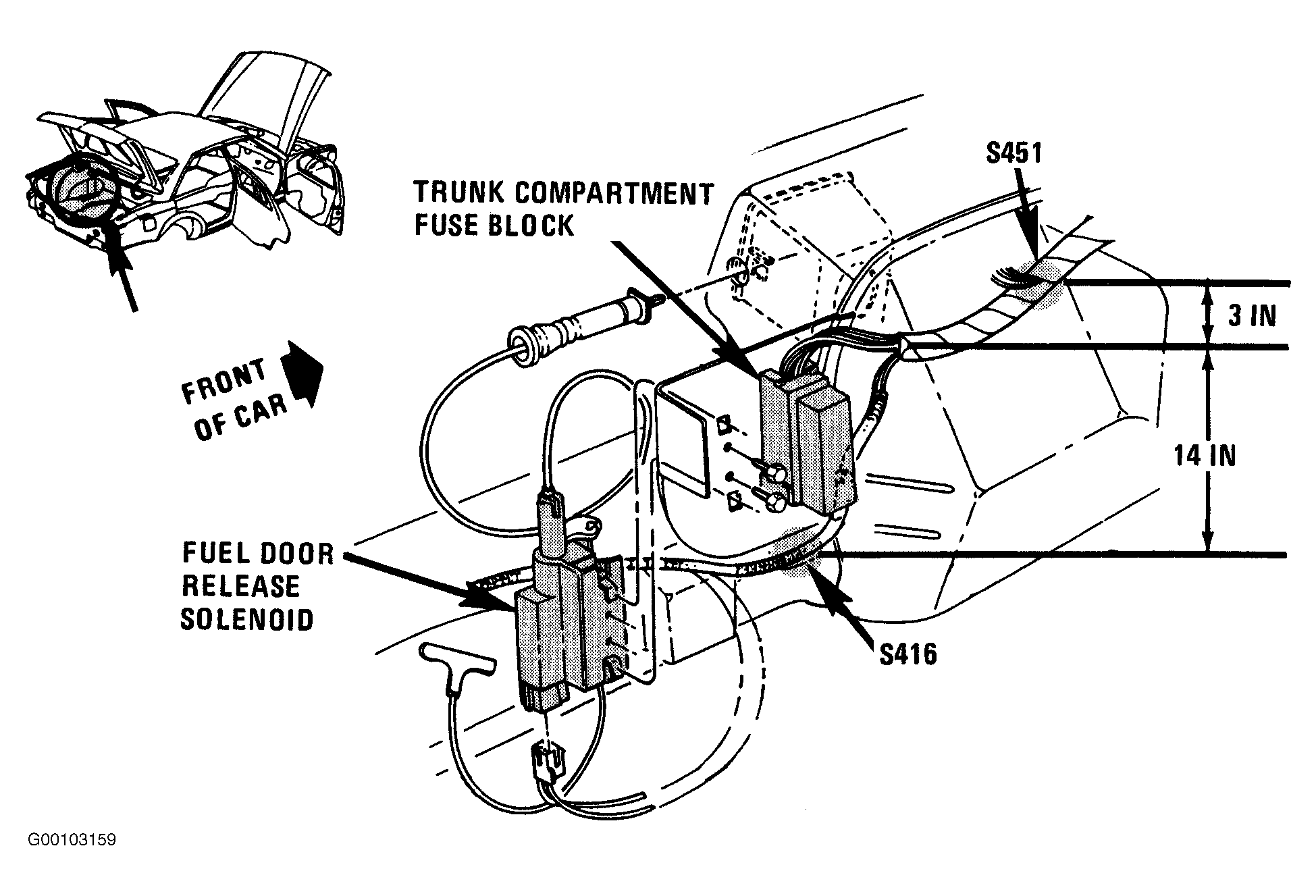

| Trunk Compartment Fuse Block | In Left Side Of Trunk, Rearward Of Wheelhouse. See Fig 3 . |
| Up/Down Lumbar Motors | In Respective Front Seatbacks. See Figure . |
| Up/Down Lumbar Relays | Under Respective Front Seats |
| C302 (6 Cavities) | Under Driver's Seat. See Fig 4 . |
| C303 (6 Cavities) | Under Passenger's Seat. See Fig 4 . |
| C304 (4 Cavities) | Under Driver's Seat |
| C305 (4 Cavities) | Under Passenger's Seat |
| C312 (4 Cavities) | Under Driver's Seat |
| C313 (4 Cavities) | Under Passenger's Seat |
| C314 (6 Cavities) | Under Driver's Seat |
| C315 (6 Cavities) | Under Passenger's Seat |
| G302 | Under Driver's Seat. See Fig 4 . |
| P101 | In Left Rear Corner Of Engine Compartment, On Cowl |

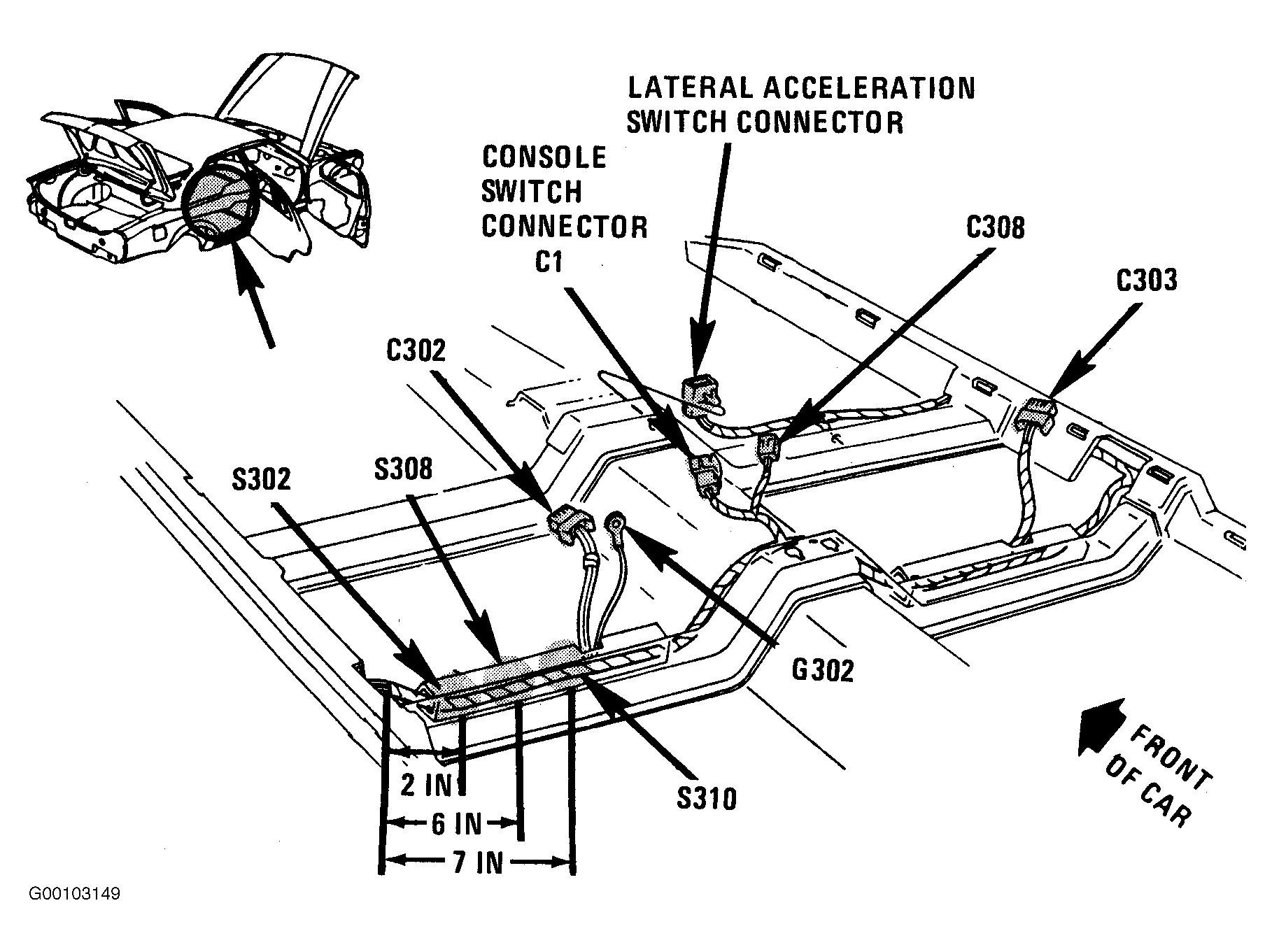

| S302 | In Body Main Harness, Under Driver's Seat, 2 Inches Right Of Left Rocker Panel Channel. See Fig 4 . |
| S308 | In Body Main Harness, Under Driver's Seat, 6 Inches Right Of Left Rocker Panel Channel. See Fig 4 . |
| S310 | In Body Main Harness, Under Driver's Seat, 7 Inches Right Of Left Rocker Panel Channel. See Fig 4 . |
| S311 | In Driver's Power Seat Harness, In In-Line Connectors (C302, C312) Branch, 4 Inches From Breakout |
| S312 | In Passenger's Power Seat Harness, In In-Line Connectors (C303, C313) Branch, 4 Inches From Breakout |
| S325 | In Driver's Power Seat Harness, In In-Line Connectors (C302, C312) Branch, 8 Inches From Breakout |
| S326 | In Passenger's Power Seat Harness, In In-Line Connectors (C303, C313) Branch, 8 Inches From Breakout |
| S327 | In Driver's Heated Seat Harness, 4 Inches Rearward Of Driver's Heated Seat Element Breakout |
| S328 | In Passenger's Heated Seat Harness, 4 Inches Rearward Of Passenger's Heated Seat Element Breakout |

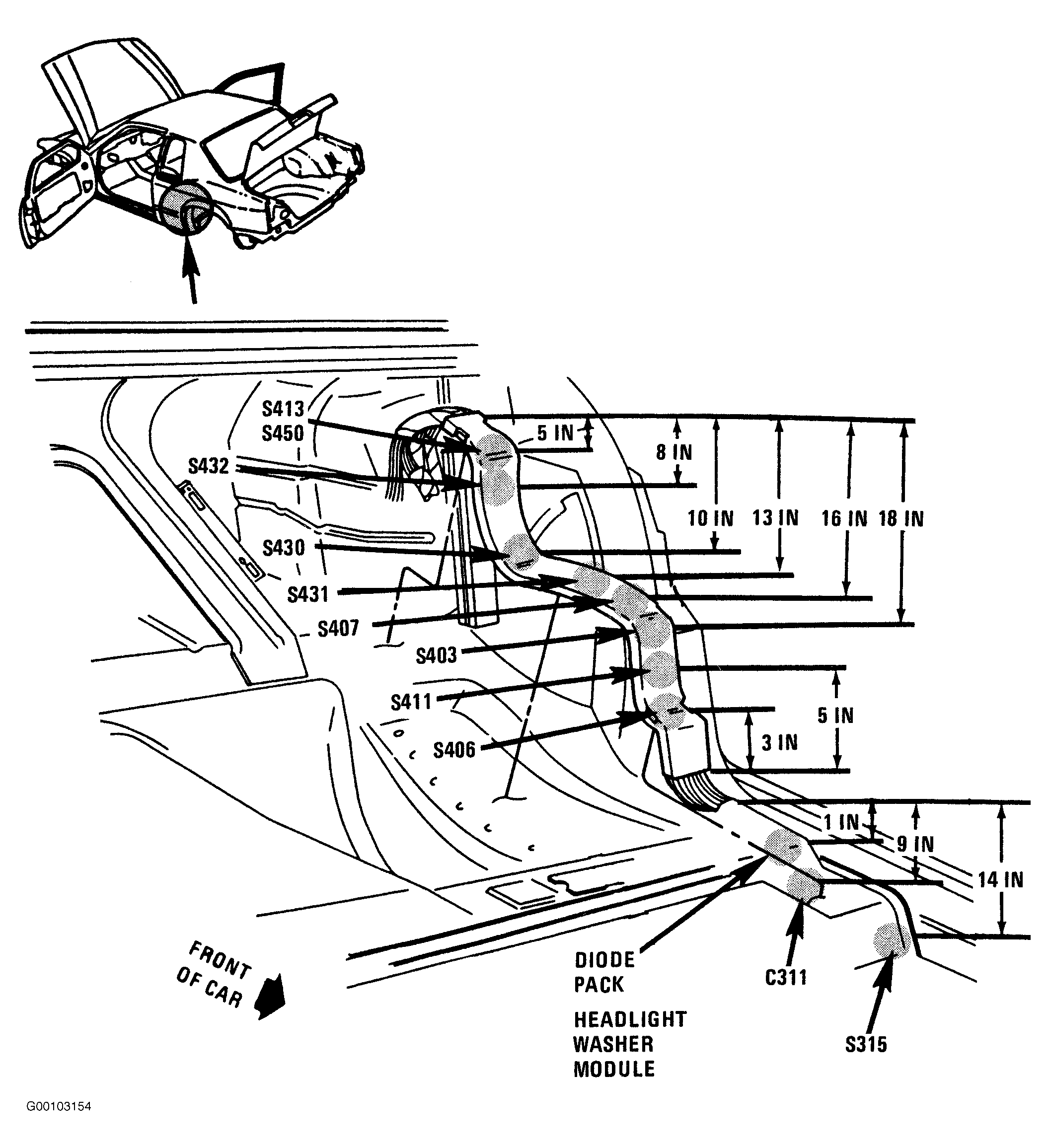

| S407 | In Body Main Harness, Under Left Rear Seat, 16 Inches Forward Of Rear Edge Of Left Seat Pan Channel. See Fig 5 . |
