Home >> Cadillac >> 1987 >> Allante F7/ME9 >> Repair and Diagnosis >> Steering >> Steering Columns >> Overhaul

Steering Columns: Overhaul

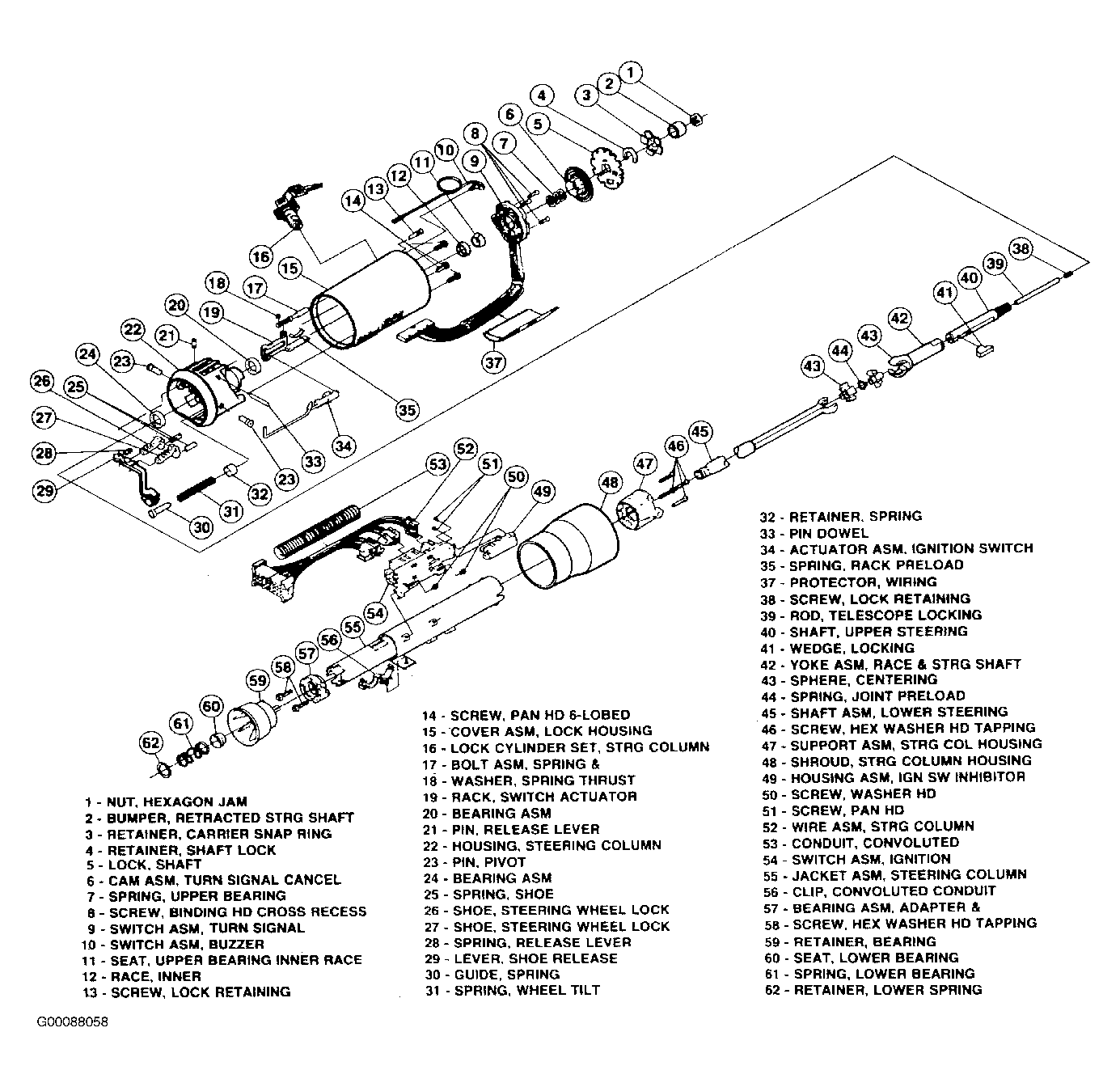

Fig 1: Exploded View Of Steering Column

G00088058

Courtesy of GENERAL MOTORS CORP.
