Test G: No System Power

NOTE: For diagnostic flow chart, see Fig 1 . For circuit identification, see Fig 2 .

NOTE: For circuit description, see SYSTEM POWER CIRCUITS under DESCRIPTION & OPERATION.

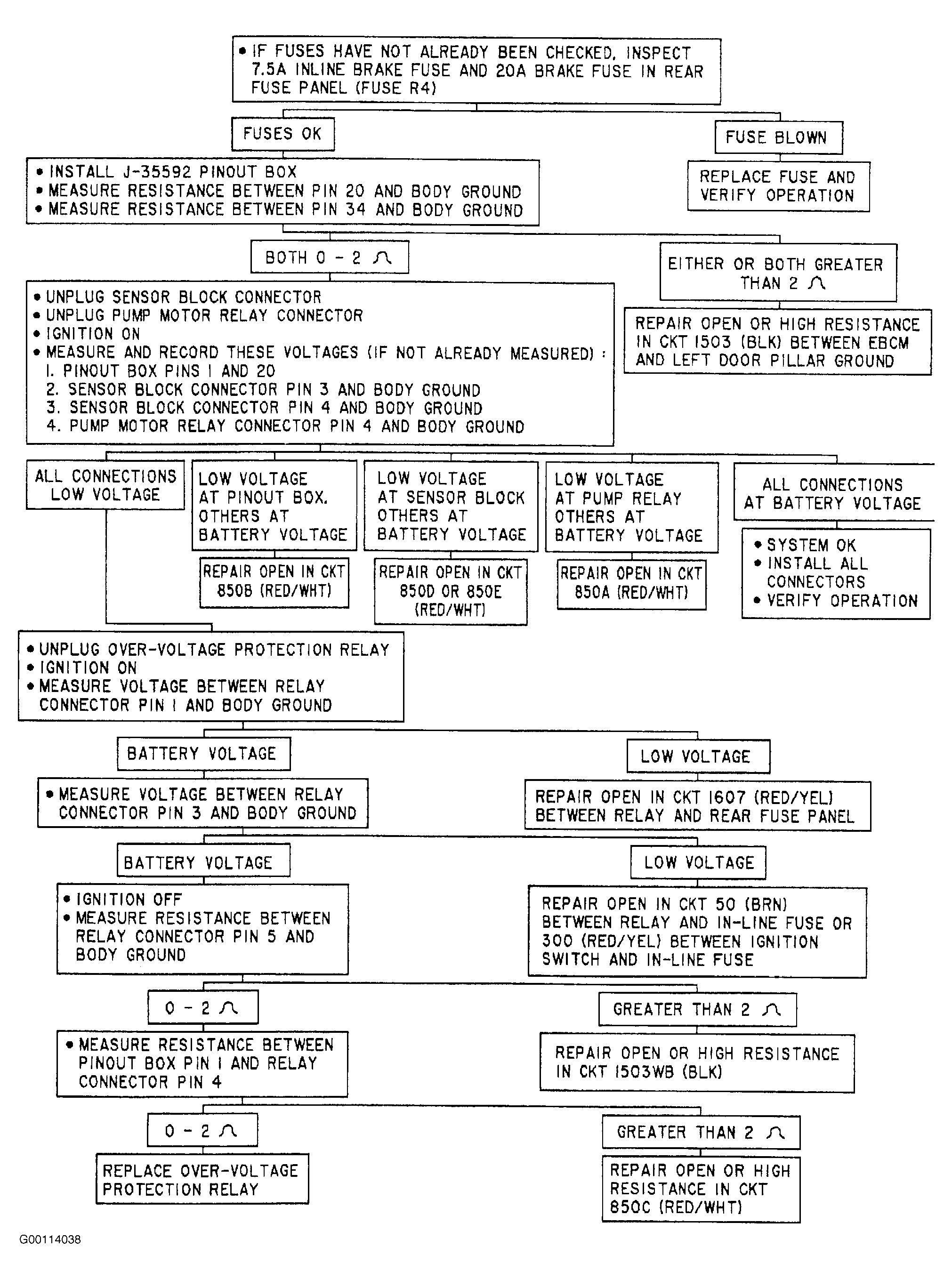

Fig 1: Chart G: No System Power Diagnostic Flow Chart

Courtesy of GENERAL MOTORS CORP.

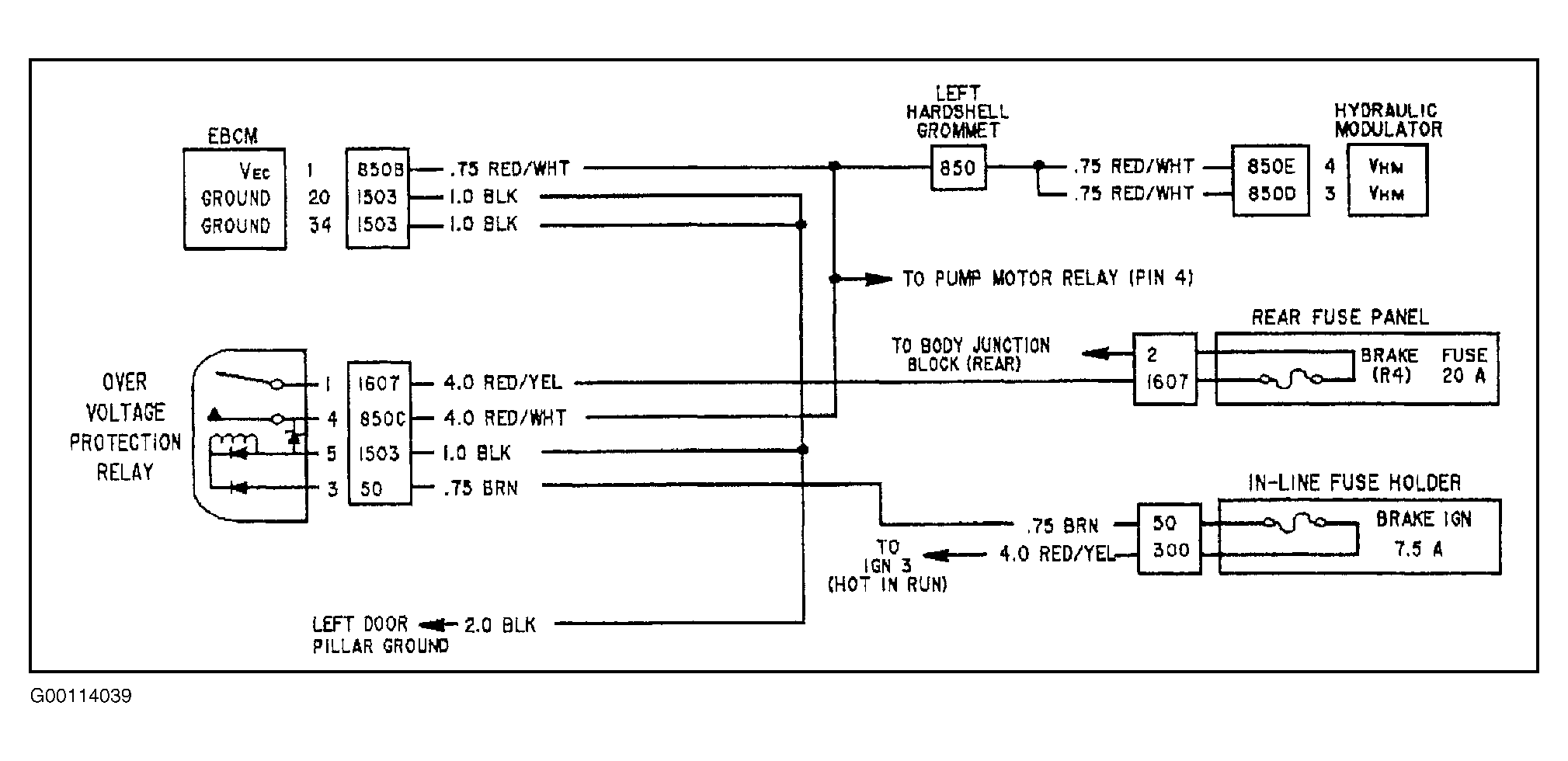

Fig 2: Identifying System Power Circuits

Courtesy of GENERAL MOTORS CORP.
