Chart A-1: Brake Light Switch
Chart A-1: Brake Light Switch

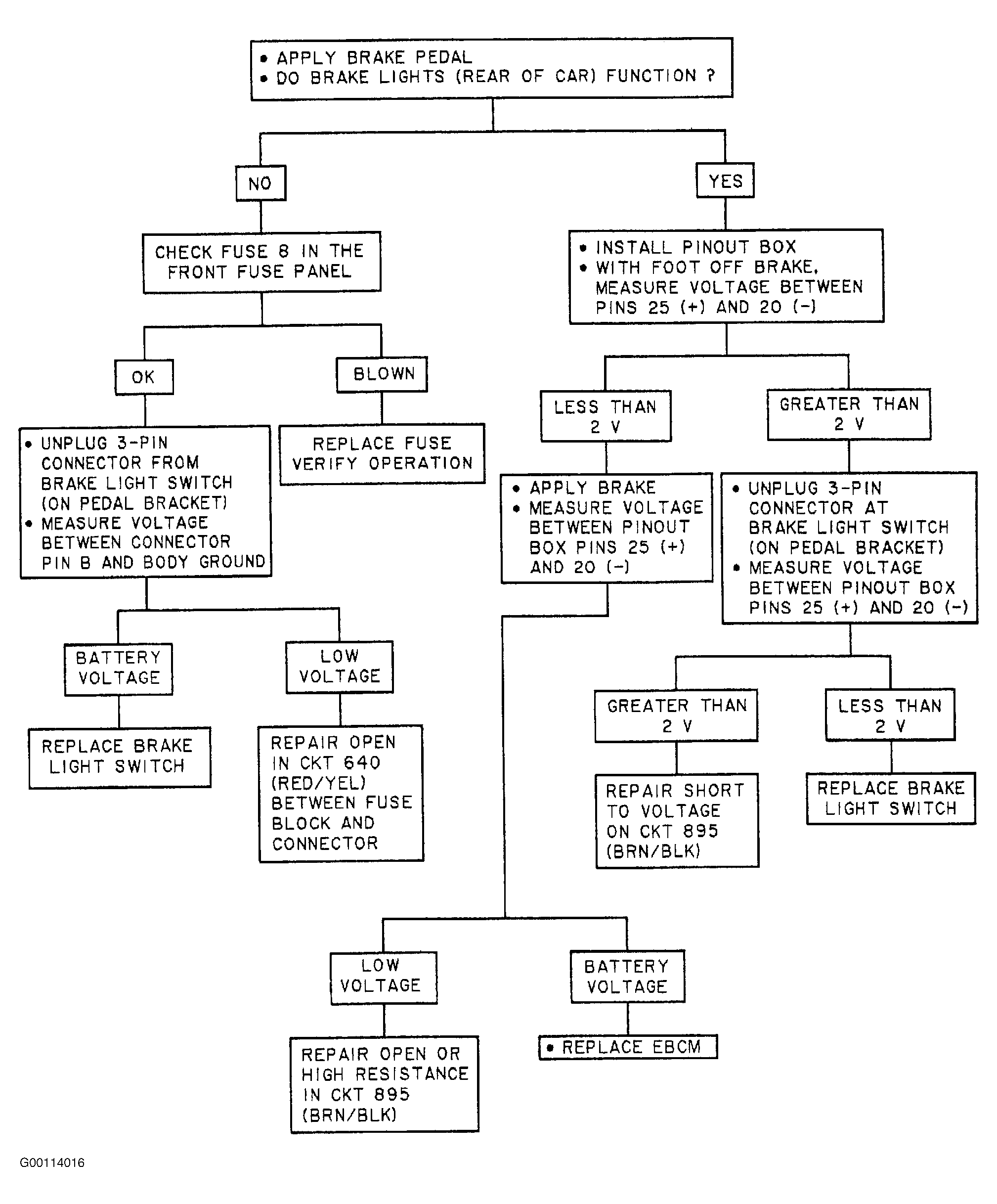

Fig 1: Chart A-1: Brake Light Switch Diagnostic Flow Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
