Control Pressure Switch: Removal

  1. Depressurize hydraulic accumulator by pumping brake pedal a minimum of 25 times. See DEPRESSURIZING HYDRAULIC ACCUMULATOR  under SERVICING.
  2. Disconnect control pressure switch from booster/master cylinder assembly.

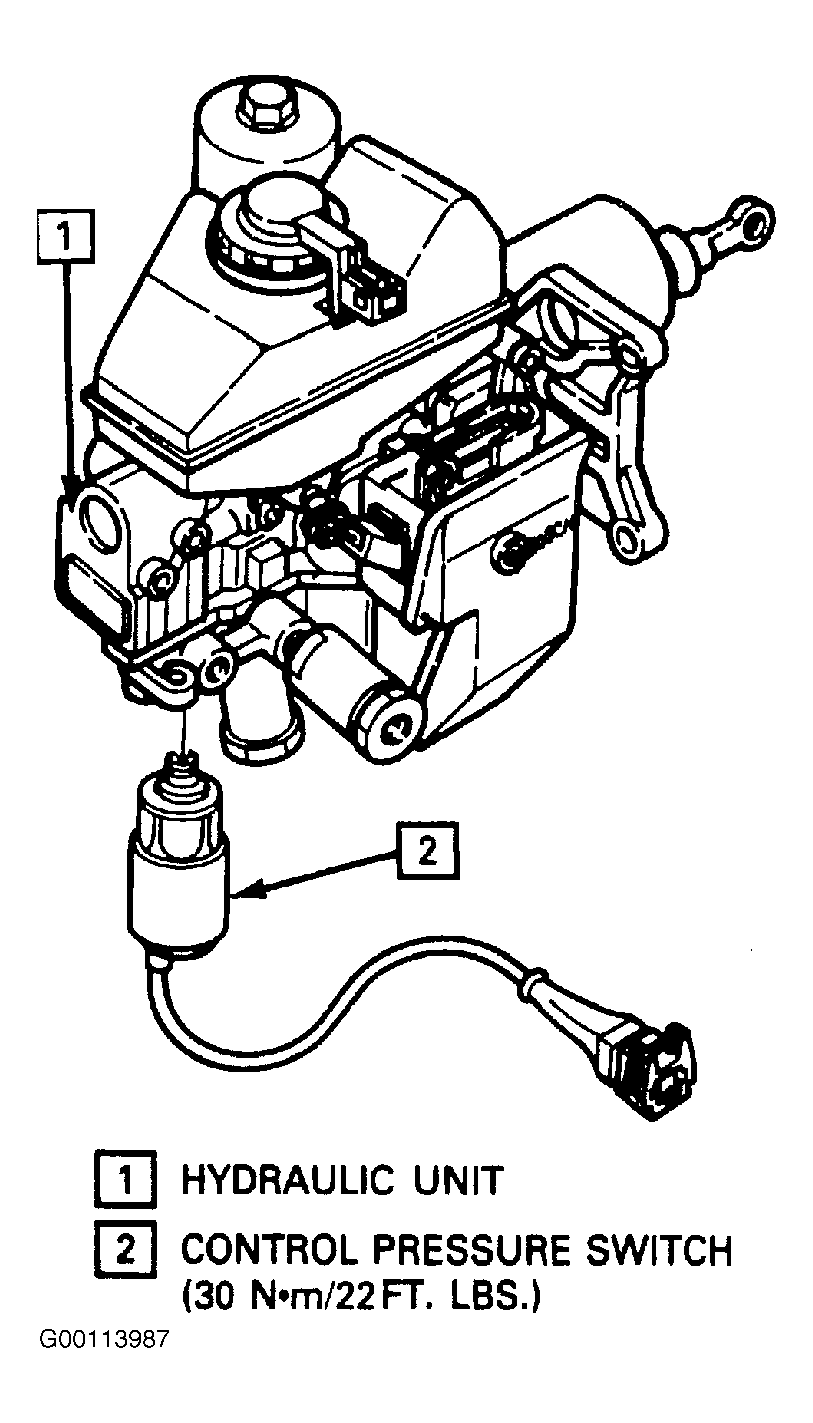

Fig 1: Removing Control Pressure Switch
G00113987Courtesy of GENERAL MOTORS CORP.
