EXPERTEC TSB (T84-92)

Publication date: 1984-08-02
Reference number: T84-92

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): T84-92, Date of Issue: 08/02/84

Fig 1: Service Information (1 Of 7)

Fig 2: Service Information (2 Of 7)

Fig 3: Service Information (3 Of 7)

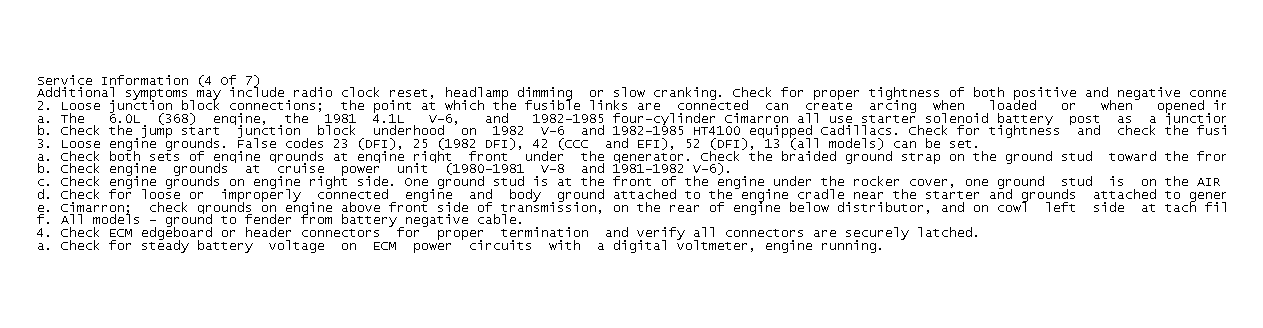

Fig 4: Service Information (4 Of 7)

Fig 5: Service Information (5 Of 7)

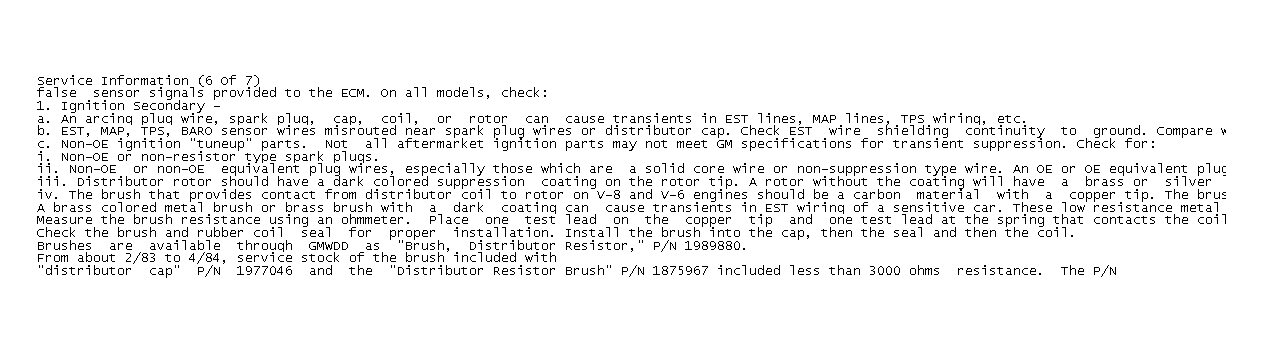

Fig 6: Service Information (6 Of 7)

Fig 7: Service Information (7 Of 7)
