Installation Procedure

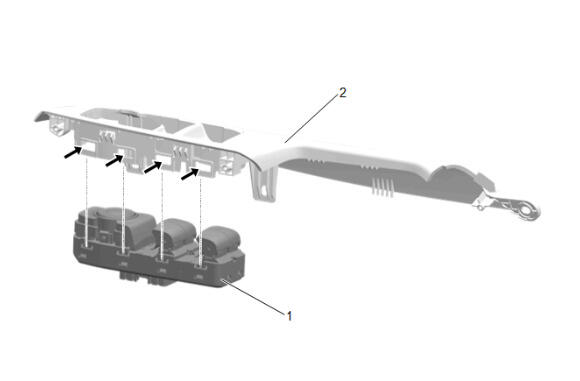

  1. GM6274561Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Window Control Switch (1) @ Front Side Door Armrest Switch Mount Plate (2) - Install

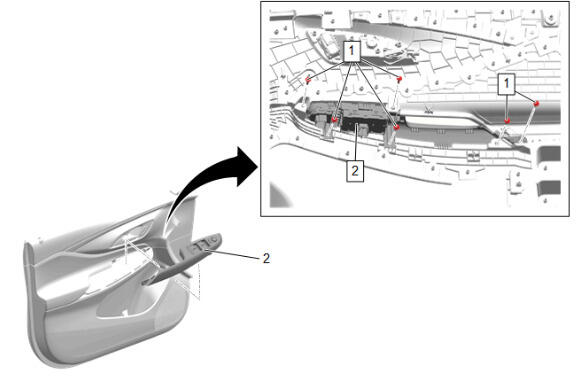

  2. GM5973662Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Armrest Switch Mount Plate (2) - Install

    3. CAUTION:

    Refer to Fastener Caution .

  3. Front Side Door Trim Bolt (1) - Install and tighten [6x] - Fastener Specifications

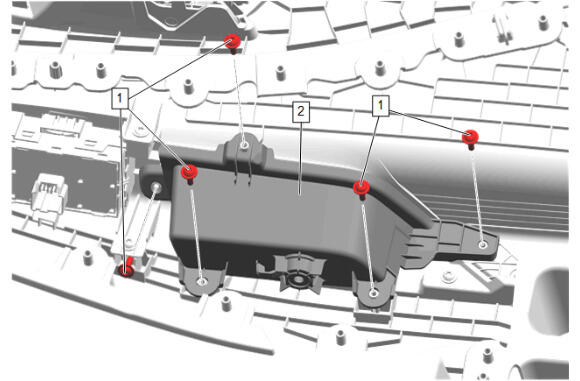

  4. GM5973660Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Armrest Pull Cup (2) - Install

  5. Front Side Door Trim Bolt (1) - Install and tighten [5x] - Fastener Specifications

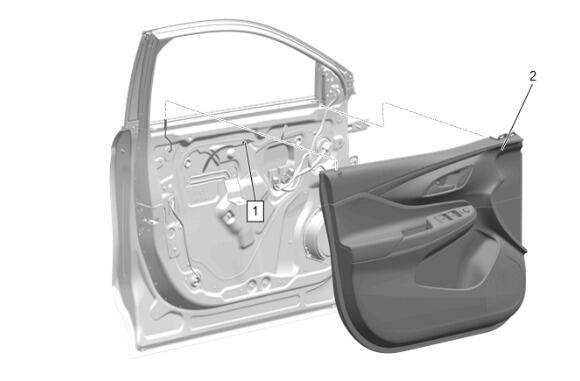

  6. GM5973594Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Trim (2) - Install - Front Side Door Trim Removal and Installation
