Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

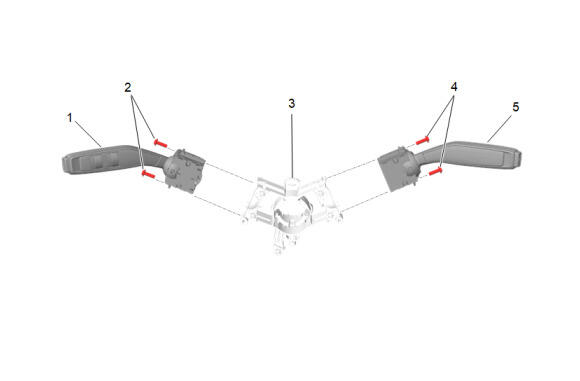

Gear Shift Control Module (5) @ Turn Signal Switch Bracket (3) - Install

CAUTION:

Automatic Transmission Electronic Control Bolt (4) @ Turn Signal Switch Bracket (3) - Install and tighten [2x] - Fastener Specifications
Turn Signal Switch (1) @ Turn Signal Switch Bracket (3) - Install
Turn Signal Switch Bolt (2) @ Turn Signal Switch Bracket (3) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the turn signal switch bracket (1) as an assembly.
Ensure the tabs on the turn signal switch bracket are fully engaged.
Courtesy of GENERAL MOTORS COMPANY

Tighten the turn signal switch bracket band clamp (1) to specification. Fastener Specifications
Ensure the steering wheel airbag coil is CENTERED during installation. Steering Wheel Airbag Coil Centering
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the 5 integral retainers are fully engaged.

Steering Wheel Airbag Coil (1) - Install
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector, if equipped.
Instrument Panel Steering Column Lower Trim Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
Steering Wheel - Install - Steering Wheel Replacement (N5L) Steering Wheel Replacement (N5Q)
Enable the SIR System. SIR Disabling and Enabling
