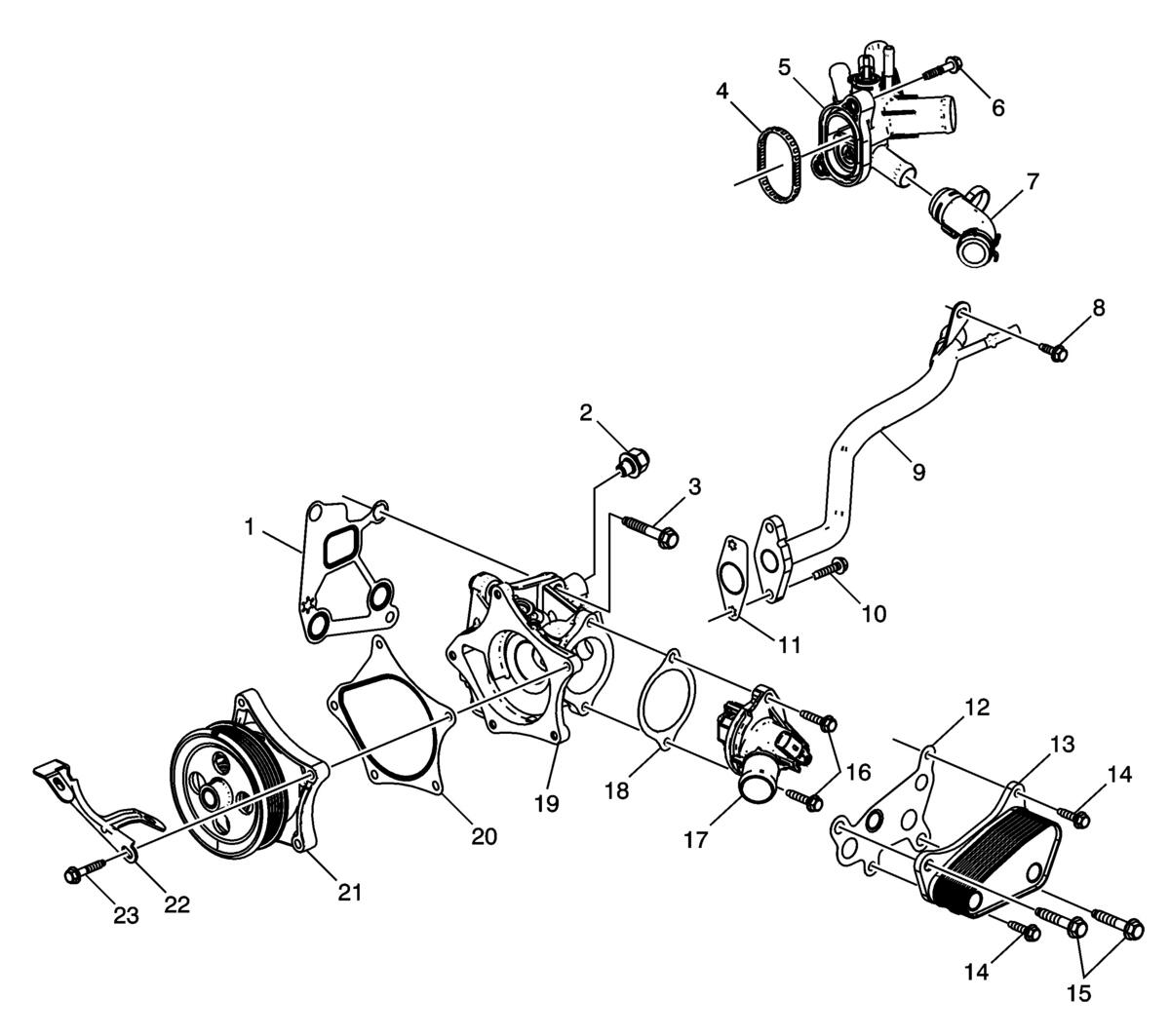

| 1 |
Water Pump Housing Gasket |
| 2 |
Turbocharger Coolant Feed Pipe Fitting |
| 3 |
Water Pump Rear Housing Bolt (Qty: 2) |
| 4 |
Water Outlet Gasket |
| 5 |
Water Outlet Assembly |
| 6 |
Water Outlet Assembly Bolt (Qty: 2) |
| 7 |
Thermal Bypass Hose |
| 8 |
Thermal Bypass Pipe Assembly Bolt (Qty: 1) |
| 9 |
Thermal Bypass Pipe Assembly |
| 10 |
Thermal Bypass Pipe Assembly Bolt (Qty: 2) |
| 11 |
Thermal Bypass Pipe Gasket |
| 12 |
Engine Oil Cooler Gasket |
| 13 |
Engine Oil Cooler Assembly |
| 14 |
Engine Oil Cooler Assembly Bolt (Qty: 2) |
| 15 |
Engine Oil Cooler Assembly Bolt (Qty: 2) |
| 16 |
Engine Coolant Thermostat Housing Bolt |
| 17 |
Engine Coolant Thermostat Housing Assembly |
| 18 |
Engine Coolant Thermostat Housing Gasket |
| 19 |
Water Pump Rear Housing |
| 20 |
Water Pump Gasket |
| 21 |
Water Pump Housing Assembly |
| 22 |
ECM Engine Wiring Harness Bracket |
| 23 |
Water Pump Housing Assembly Bolt (Qty: 5) |
