Drive Belt Accessory Components

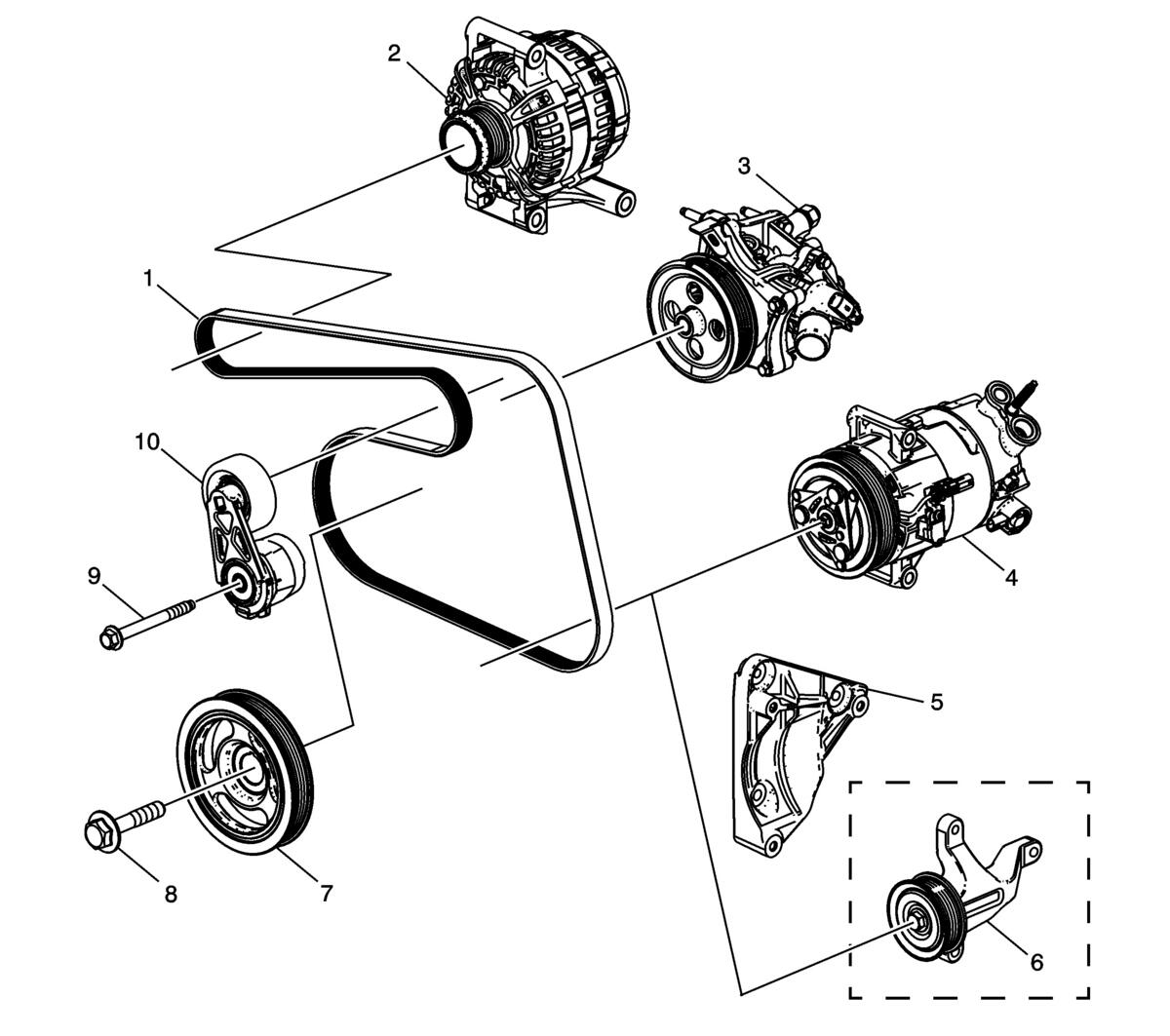

Fig 1: Exploded View Of Drive Belt Accessory Components
GM3385650Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Drive Belt
2 Generator
3 Water Pump
4 A/C Compressor
5 A/C Compressor Bracket
6 Belt Idler Bracket Assembly, Some Models
7 Crankshaft Balancer
8 Crankshaft Balancer Bolt
9 Drive Belt Tensioner Bolt
10 Drive Belt Tensioner
