Headlamp LED Driver Module Replacement
WARNING: This page is about a different car, the 2020 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
TIGHTENING TORQUE SPECIFICATIONS

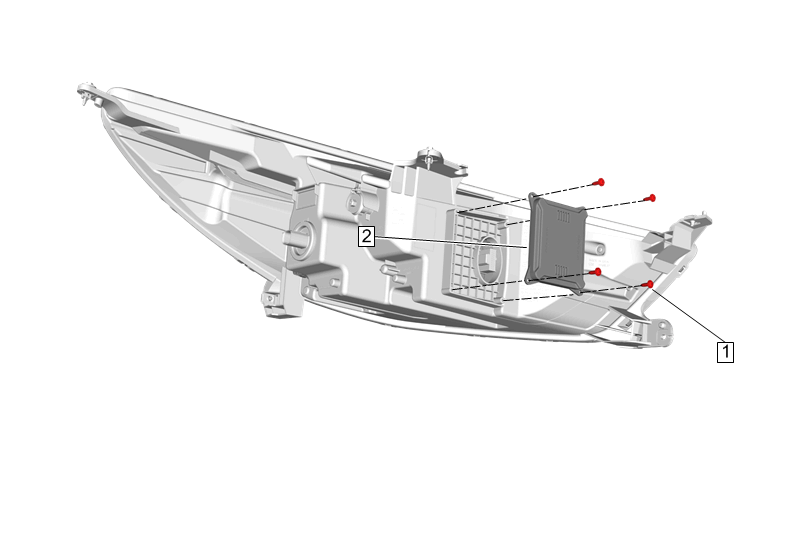

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Headlamp Replacement |
|
| 1 | Headlamp LED Driver Module Bolt [4x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Headlamp LED Driver Module Procedure Disconnect the electrical connector. |
