Home >> Buick >> 2021 >> Envision Preferred, FWD >> Repair and Diagnosis >> Body & Frame >> Fixed And MOVEABLE Windows >> Schematic Wiring Diagrams >> Defogger Wiring Schematics >> Defogger

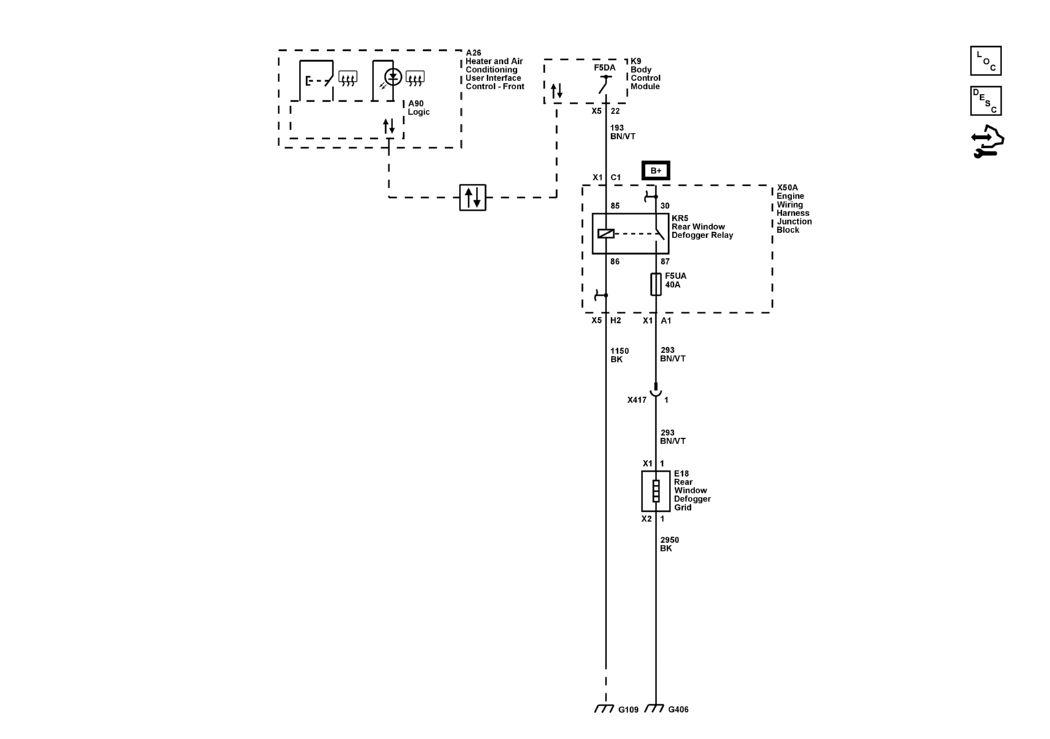

Defogger Wiring Schematics: Defogger

GM5572018Courtesy of GENERAL MOTORS COMPANY
