Front Seat Adjuster Memory Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

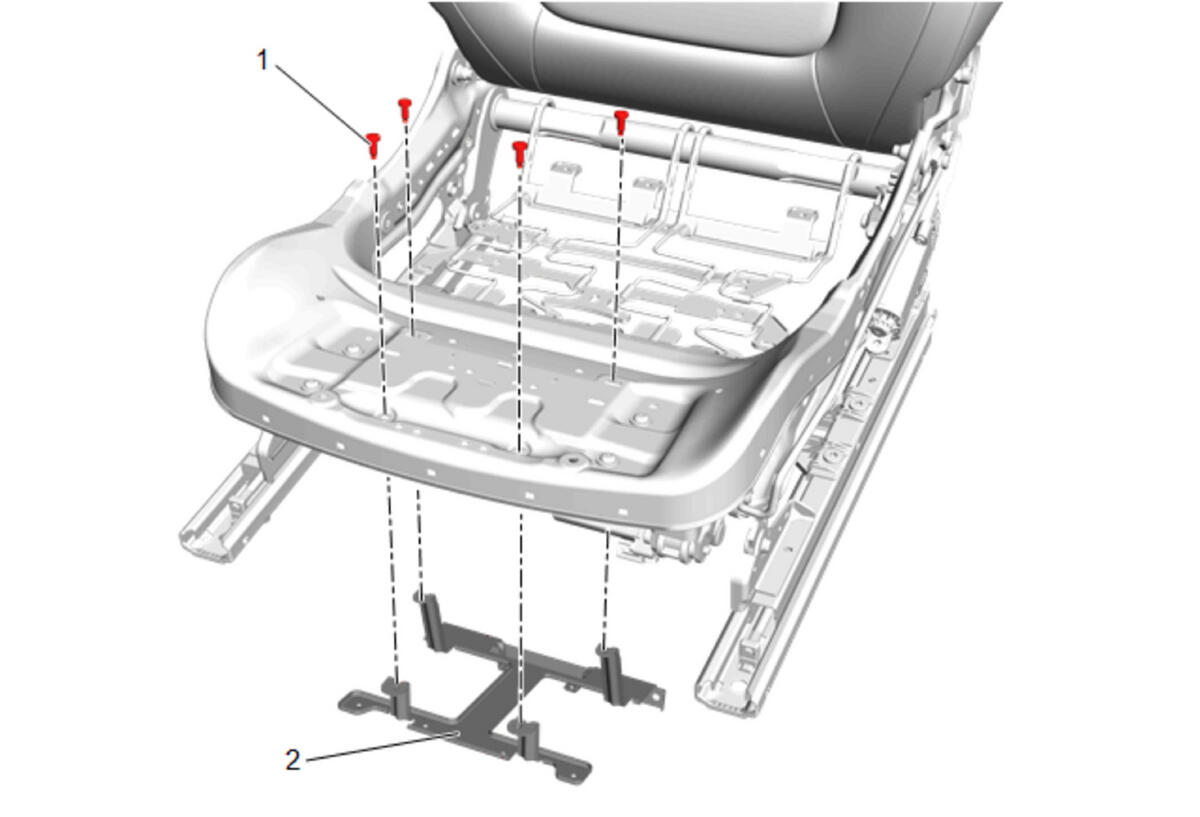

Callout	Component Name
Preliminary Procedures Front Seat Cushion Cover and Pad Replacement Driver Seat Adjuster Memory Module Replacement
1	Front Seat Adjuster Memory Module Bracket Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Front Seat Adjuster Memory Module Bracket

Callout

Component Name

Preliminary Procedures

Front Seat Adjuster Memory Module Bracket Bolt [4x]

CAUTION:

Tighten
4 N.m (35 lb in)

Front Seat Adjuster Memory Module Bracket
