Outside Rearview Mirror Actuator Replacement

Courtesy of GENERAL MOTORS COMPANY

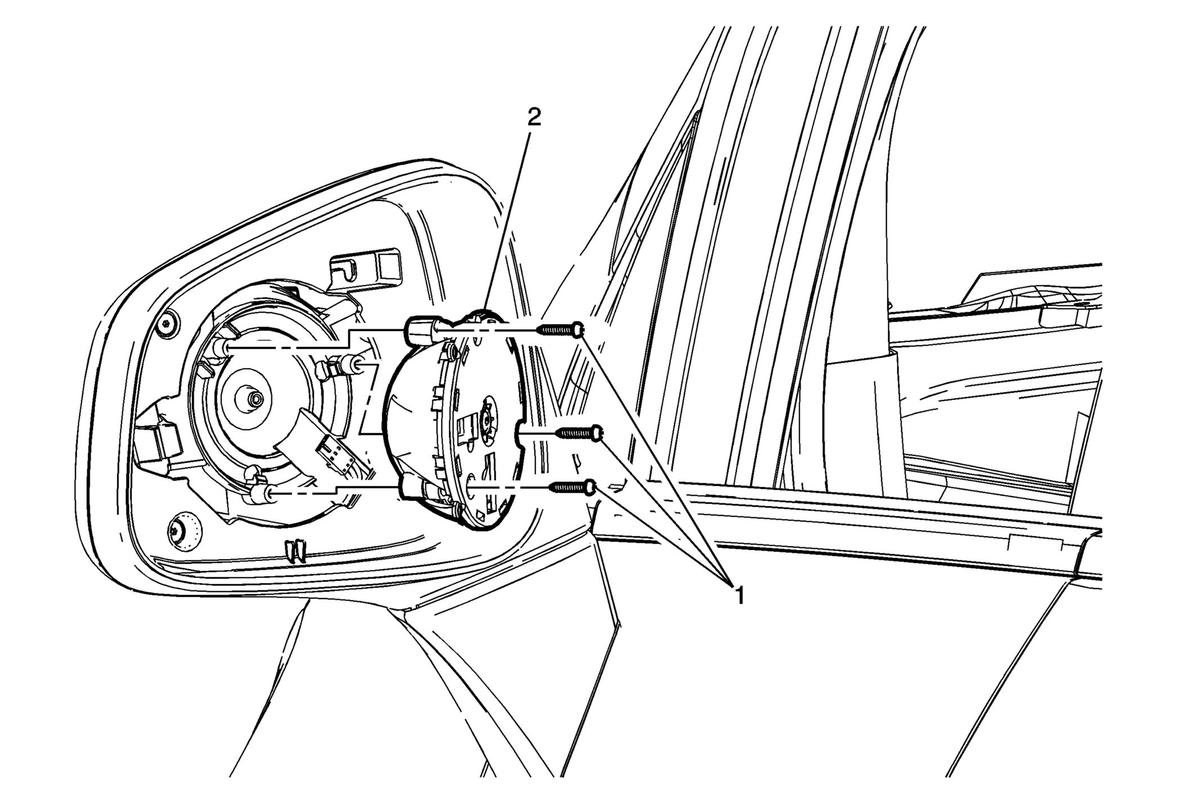

Callout	Component Name
Preliminary Procedure  Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement .
1	Outside Rearview Mirror Inner Actuator Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure  Disconnect the outside mirror inner actuator electrical connectors. Tighten  5 N.m (44 lb in)
2	Outside Rearview Mirror Inner Actuator
