Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

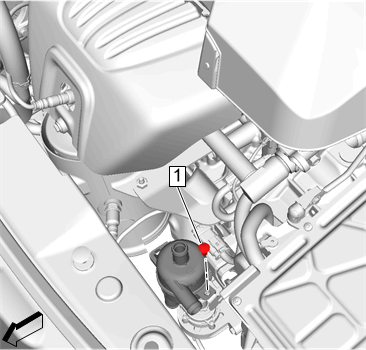

Generator Control Module Coolant/Air Separator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Drive Motor Generator Power Inverter Module Pump Cooling Inlet Hose (2)@Generator Control Module Coolant/Air Separator - Install - Drive Motor Generator Power Inverter Module Pump Cooling Inlet Hose Replacement (LHN)
Courtesy of GENERAL MOTORS COMPANY

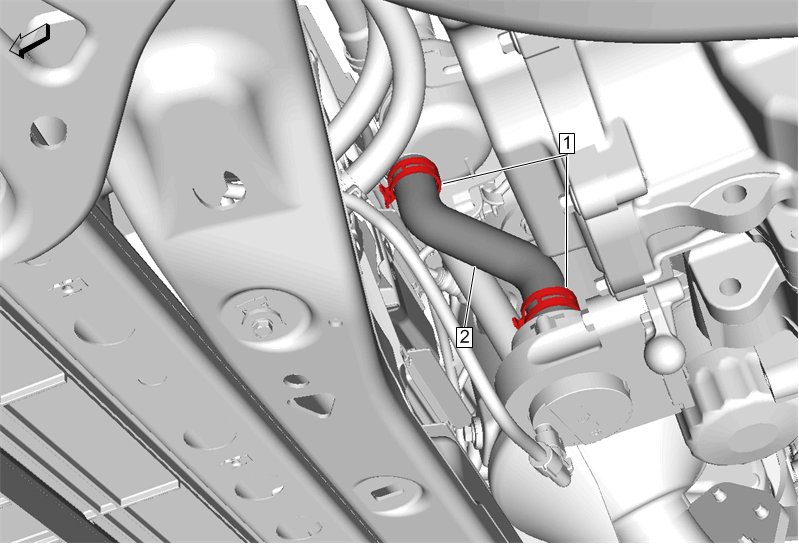

Drive Motor Generator Control Module Radiator Outlet Hose (2)@Generator Control Module Coolant/Air Separator - Install - Drive Motor Generator Control Module Radiator Outlet Hose Replacement (LHN)
Courtesy of GENERAL MOTORS COMPANY

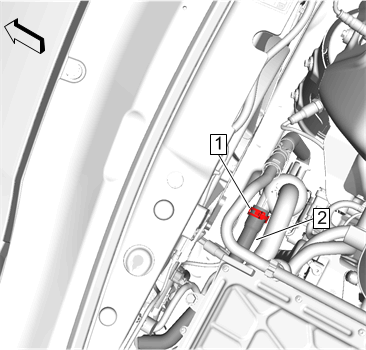

Generator Control Module Coolant Tank Hose (2)@Generator Control Module Coolant/Air Separator - Install - Generator Control Module Coolant Tank Hose Replacement (LHN)
Fill the cooling system to the proper level. Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)
Start the engine and check for coolant leaks.
