Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

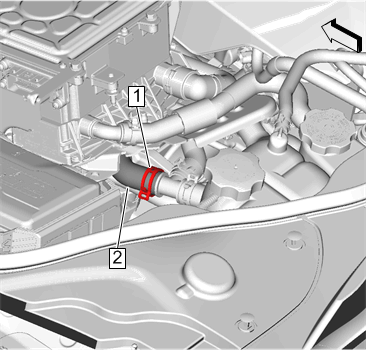

Generator Control Module Coolant Tank Hose (2)@Heater Coolant Pump Hose - Install
Generator Control Module Coolant Tank Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

Engine Control Module Bracket (2) - Install - Engine Control Module Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

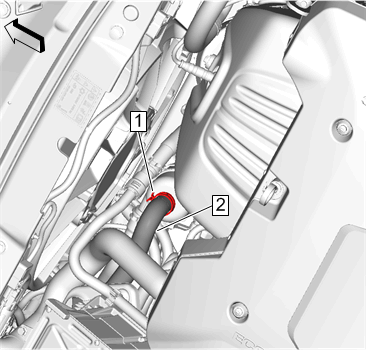

Generator Control Module Coolant Tank Hose (2)@Generator Control Module Coolant/Air Separator - Install
Generator Control Module Coolant Tank Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Fill the cooling system to the proper level. Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)
Start the engine and check for coolant leaks.
