Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Generator Control Module Coolant Pump (2) - Install

CAUTION:

Generator Control Module Coolant Pump Bracket Bolt (1) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

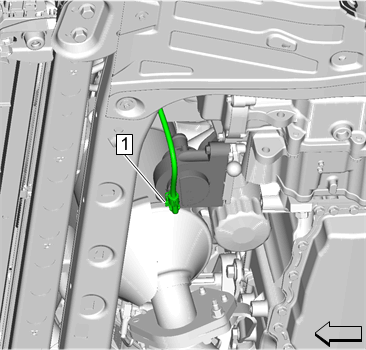

Electrical Connector (1)@Generator Control Module Coolant Pump - Connect
Courtesy of GENERAL MOTORS COMPANY

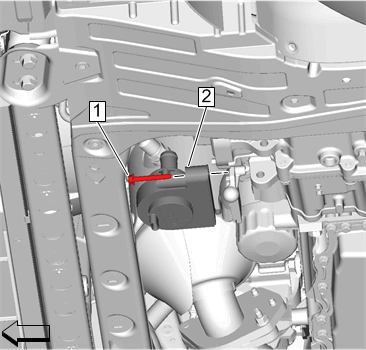

Drive Motor Generator Power Inverter Module Pump Cooling Inlet Hose (2)@Generator Control Module Coolant Pump - Install - Drive Motor Generator Power Inverter Module Pump Cooling Inlet Hose Replacement (LHN)
Courtesy of GENERAL MOTORS COMPANY

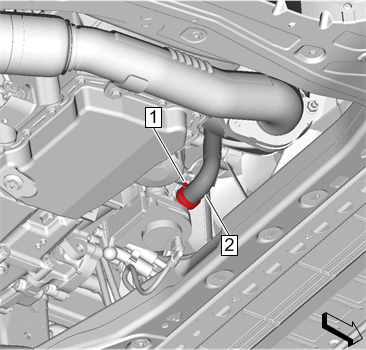

Drive Motor Generator Control Module Coolant Pump Hose (2)@Generator Control Module Coolant Pump - Install - Drive Motor Generator Control Module Coolant Pump Hose Replacement (LHN)
Fill the cooling system to the proper level. Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)
Start the engine and check for coolant leaks.
