Installation Procedure

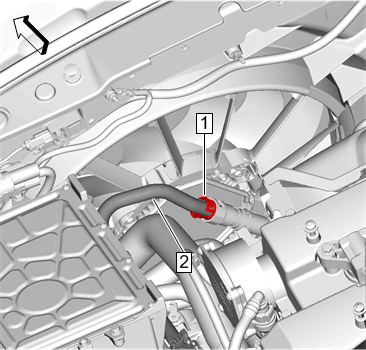

Generator Control Module Coolant Pump Hose (2)@Drive Motor Generator Control Module Coolant Pump Hose - Install
- Retainer (1)@Drive Motor Generator Control Module Coolant Pump Hose - Engage

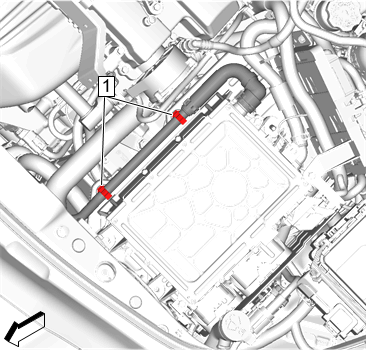

Generator Control Module Coolant Pump Hose (2)@Generator Control Module - Install
- Retainer Clip (1)@Generator Control Module Coolant Pump Hose (2) - Engage

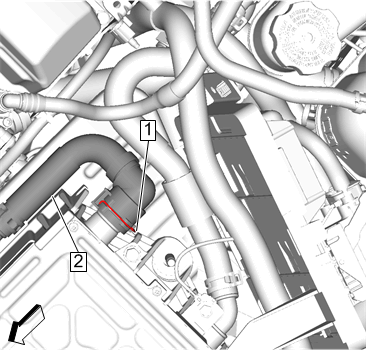

Generator Control Module Coolant Pipe Clip (1)@Drive Motor Generator Power Inverter Module Bracket - Install [2x]
- Fill the cooling system to the proper level. Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)
- Start the engine and check for coolant leaks.
