Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

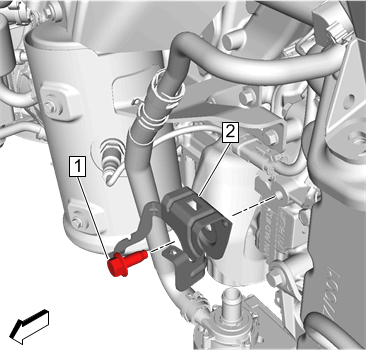

Coolant Temperature System Control Module Bracket (2) - Install

CAUTION:

Coolant Temperature System Control Module Bracket Bolt (1) - Install and tighten 58 N.m (43 lb ft)
Courtesy of GENERAL MOTORS COMPANY

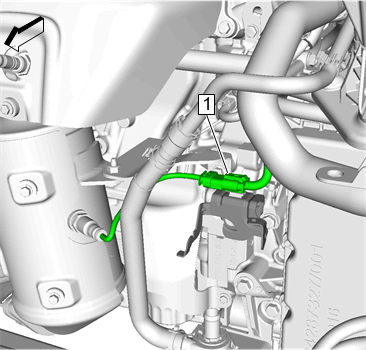

Wiring Harness (1)@Coolant Temperature System Control Module Bracket - Reposition
Courtesy of GENERAL MOTORS COMPANY

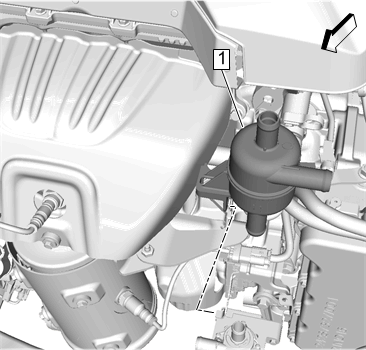

Generator Control Module Coolant/Air Separator (1) - Install - Generator Control Module Coolant/Air Separator Replacement (LHN)
Fill the cooling system to the proper level. Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)
Start the engine and check for coolant leaks.
