Transmission Fluid Cooler Pipe Connector Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place a drain pan under the vehicle. Transmission Fluid Cooler Pipe @ Transmission Fluid Cooler Pipe ConnectorRemove - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection . Cap the fittings and plug the holes when removing the transmission fluid cooler pipes.

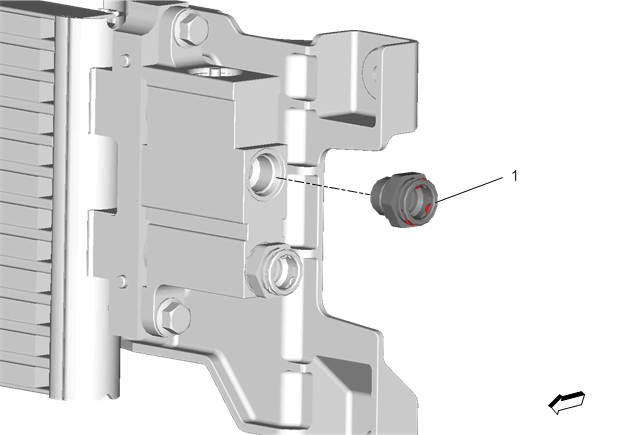

1	Transmission Fluid Cooler Pipe Connector CAUTION: Fastener Caution . Procedure Check the transmission fluid level. Transmission Fluid Level and Condition Check Inspect for transmission fluid leaks. Automatic Transmission Fluid Leaks NOTE: Hand start the connector. Cross-threaded connectors can achieve proper torque and still leak. Tighten 20 N.m (15 lb ft)

Callout

Component Name

Preliminary Procedures

Place a drain pan under the vehicle.
Transmission Fluid Cooler Pipe @ Transmission Fluid Cooler Pipe ConnectorRemove - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
Cap the fittings and plug the holes when removing the transmission fluid cooler pipes.

Transmission Fluid Cooler Pipe Connector

CAUTION:

Procedure

NOTE:

Hand start the connector. Cross-threaded connectors can achieve proper torque and still leak.

Tighten
20 N.m (15 lb ft)
