Steering Column Dash Outer Seal Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Steering Column Dash Inner Seal Replacement Lower the drivetrain and front suspension cradle as necessary to remove the steering column dash outer seal from the steering gear. Drivetrain and Front Suspension Cradle Removal and Installation (All Wheel Drive)Drivetrain and Front Suspension Cradle Removal and Installation (Front Wheel Drive)

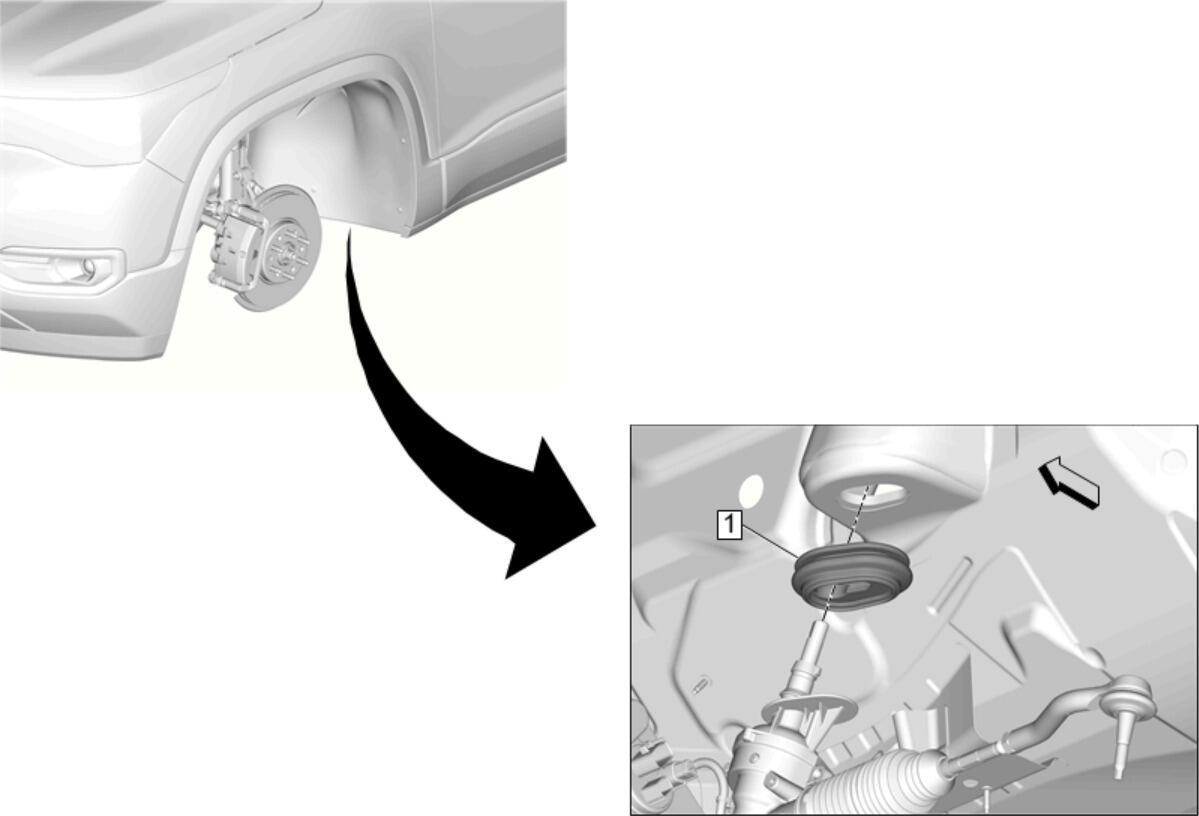

1	Steering Column Dash Outer Seal Procedure Position the steering column dash outer seal over the steering gear and on the dash panel.Ensure the seal is aligned with the steering gear and dash panel correctly.

Callout

Component Name

Preliminary Procedures

Steering Column Dash Inner Seal Replacement
Lower the drivetrain and front suspension cradle as necessary to remove the steering column dash outer seal from the steering gear. Drivetrain and Front Suspension Cradle Removal and Installation (All Wheel Drive)Drivetrain and Front Suspension Cradle Removal and Installation (Front Wheel Drive)

Steering Column Dash Outer Seal
Procedure
Position the steering column dash outer seal over the steering gear and on the dash panel.Ensure the seal is aligned with the steering gear and dash panel correctly.
