Front Side Door Locking Rod Clip Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement

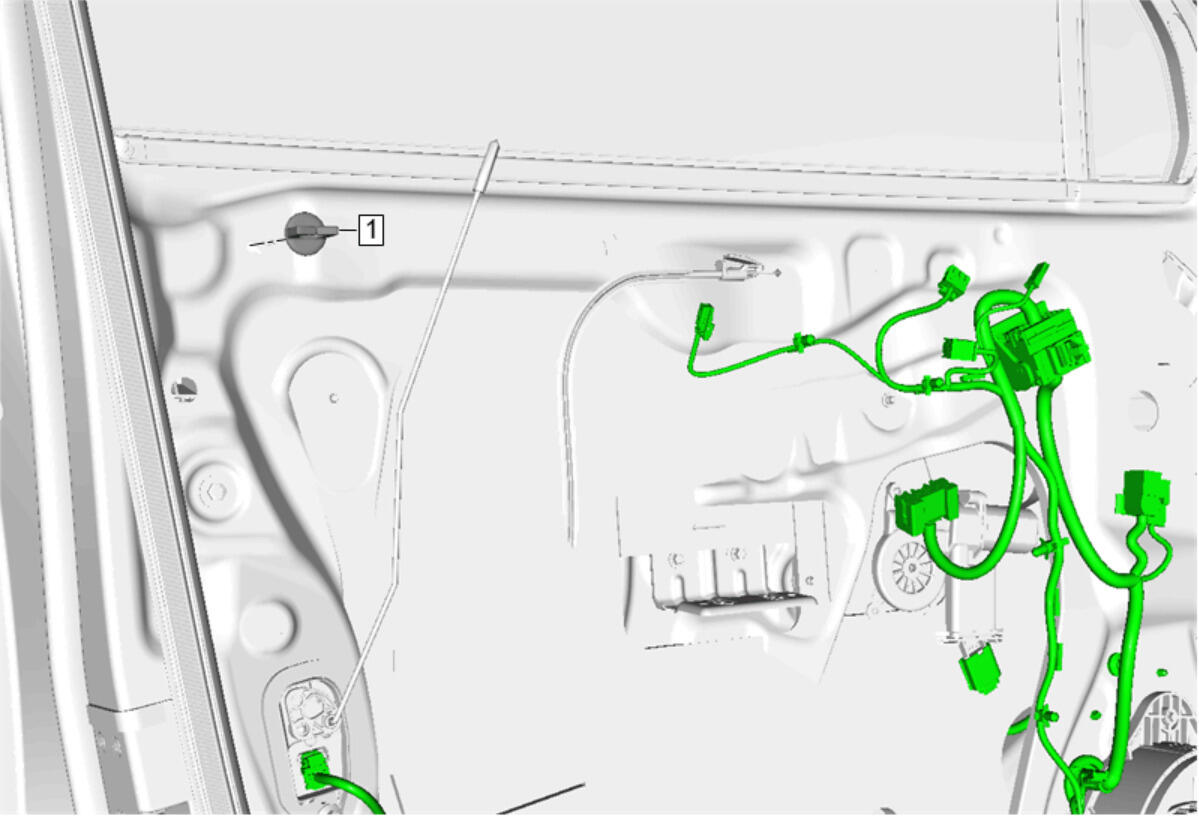

1	Front Side Door Locking Rod Clip Procedure Reposition the front side door locking rod to gain access to the front side door locking rod clip. Twist the front side door locking rod clip and pull away from door.

Callout

Component Name

Front Side Door Locking Rod Clip

Procedure

Reposition the front side door locking rod to gain access to the front side door locking rod clip.
Twist the front side door locking rod clip and pull away from door.
